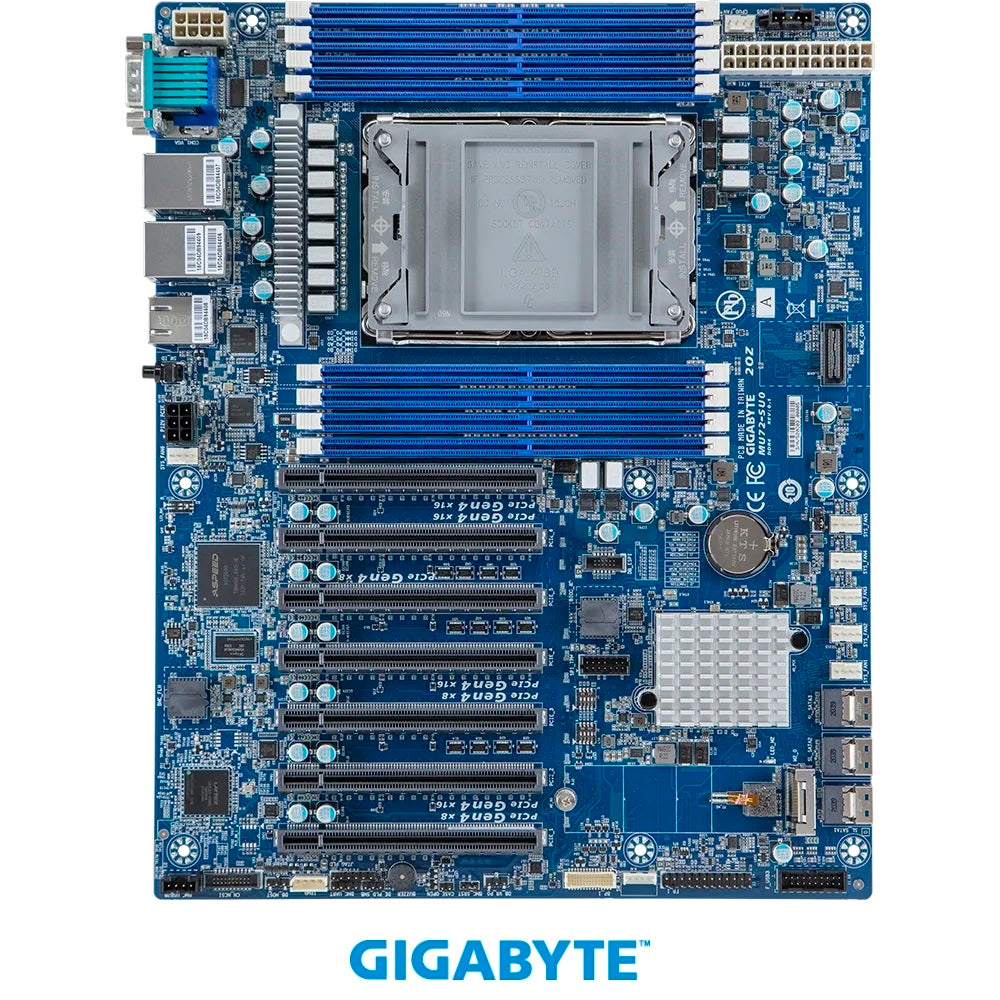

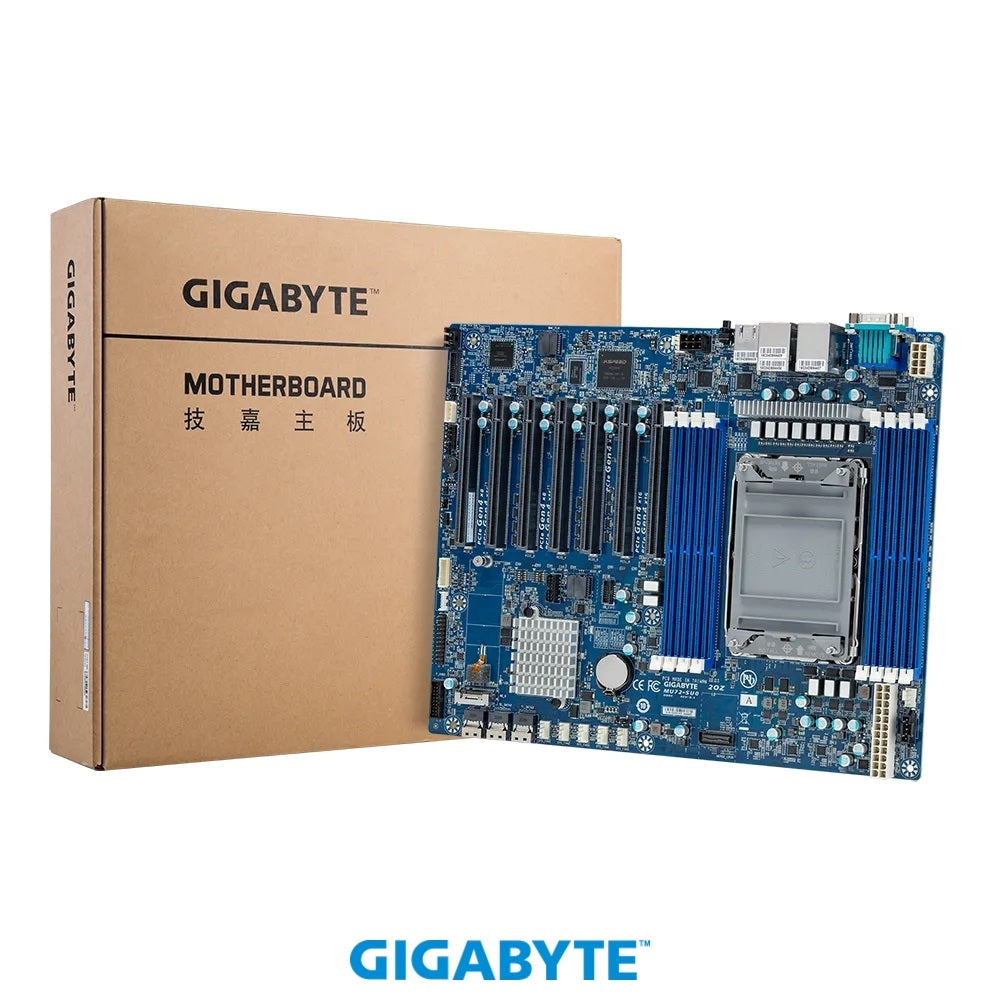

Gigabyte MU72-SU0 Motherboard Xeon LGA4189 Socket P+ C621A Max64G DDR4 ATX

MPN: MU72-SU0

Marketing Information:

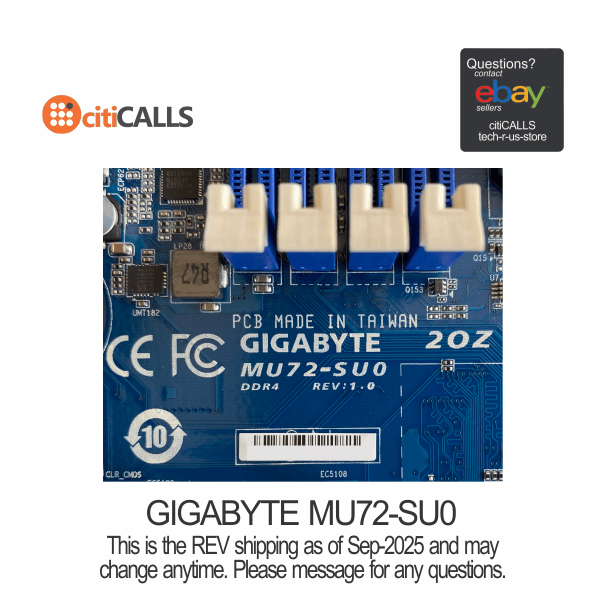

• MU72-SU0 (rev. 1.x)
• Intel C621A Express Chipset
• 3rd Gen. Intel Xeon Scalable Processors
• Intel Xeon W-3300 Processor Family
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 8 x DIMMs
• Supports Intel Optane Persistent Memory 200 series
• Intel C621A Express Chipset
• Dual 1Gb/s LAN ports (Intel I210-AT)
• 1 x Dedicated management port
• 3 x SlimSAS (for 12 x SATA 6Gb/s) ports
• Ultra-Fast M.2 and with PCIe Gen3 x4 interface
• Up to 7 PCIe Gen4 expansion slots

Where Compute Reigns
3rd Gen Intel Xeon Scalable Processors Ice Lake
GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.
Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intels 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
Next Gen Memory: Support for DDR4-3200MHz (1DPC or 2DPC) DIMM. 8 channel memory has been added with up to 16 DIMMs per socket delivering up to 4TB of system memory via usage of 256GB DDR4 DIMM. Additionally, 2/4/6/8-way interleaves for optimal configuration.
Arrival of Intel Optane PMem 200 Series: Optimized for improvements in latency while increasing system memory up to 6TB per socket as a mix of PMem and DDR. The 200 Series also has support for memory mode to expand capacity and app direct mode to act as fast flash storage.

Detail Specifications:
Form Factor:
ATX
304.8W x 254D (mm)

CPU

• 3rd Generation Intel Xeon Scalable Processors
• Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• 10nm technology, CPU TDP up to 270W
• Intel Xeon W-3300 Processor Family
• CPU TDP up to 270W

Socket

• 1 x LGA 4189
• Socket P+

Chipset

• Intel C621A Express Chipset

Memory

• 8 x DIMM slots
• DDR4 memory supported only
• 8-channel memory architecture per processor
• RDIMM modules up to 64GB supported
• LRDIMM modules up to 128GB supported
• 3DS RDIMM/LRDIMM modules up to 256GB supported
• 1.2V modules: 3200/2933/2666 MHz

LAN

• 2 x 1Gb/s LAN ports ( Intel I210-AT)
• 1 x 10/100/1000 management LAN

Video

• Integrated in Aspeed AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200 at 60Hz 32bpp, DDR4 SDRAM

Warranty Information
1 Year from Gigabyte
