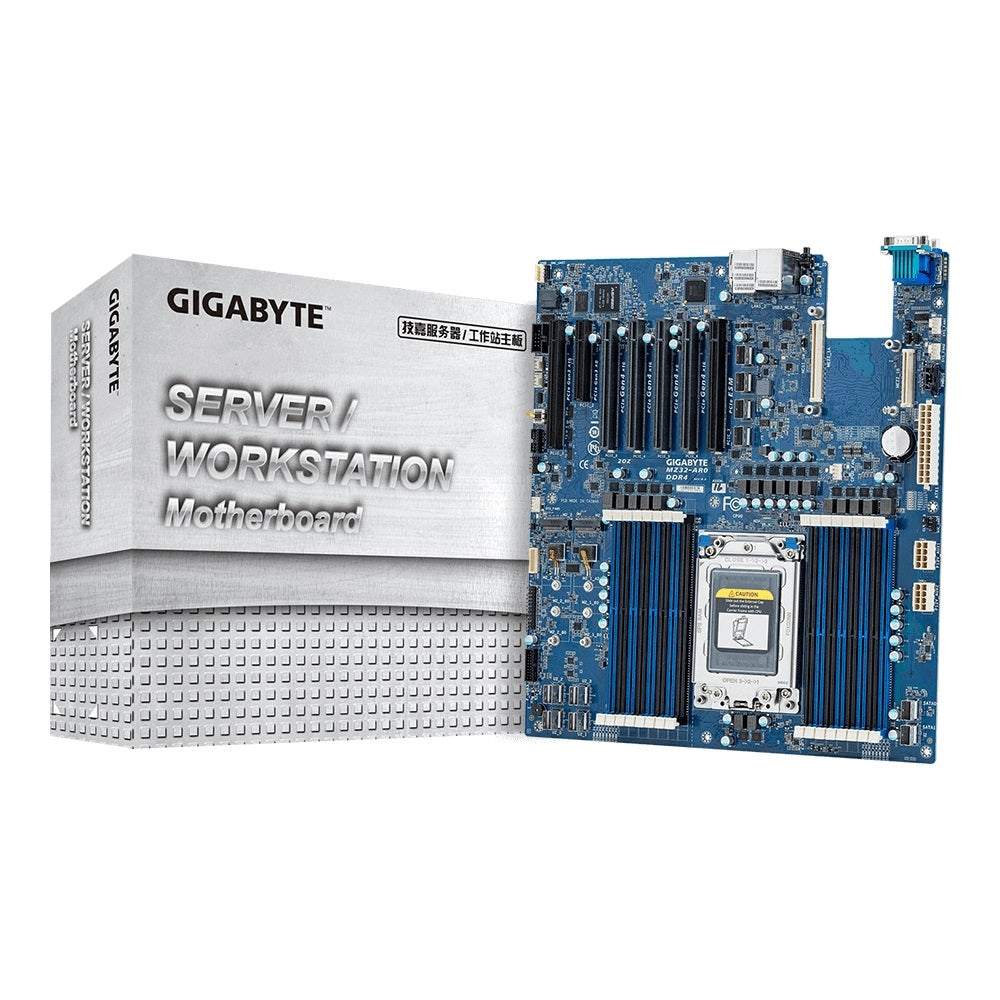

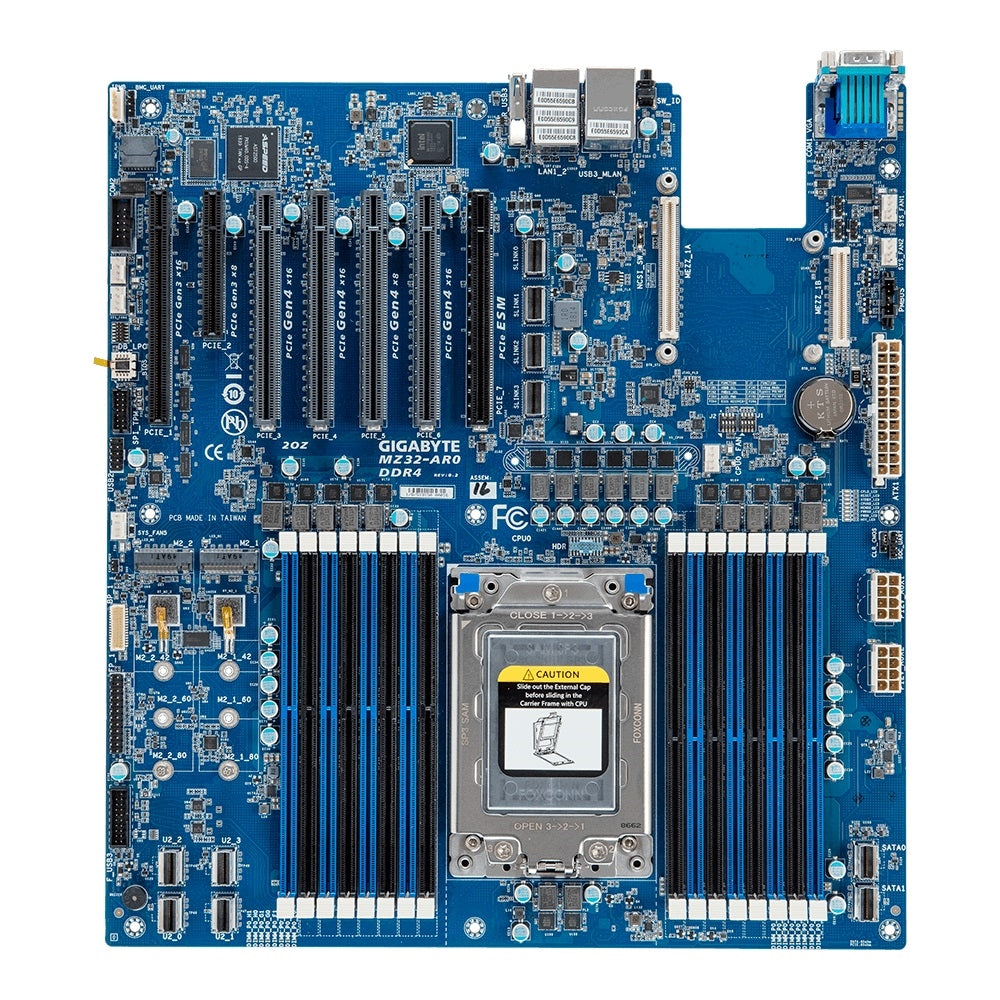

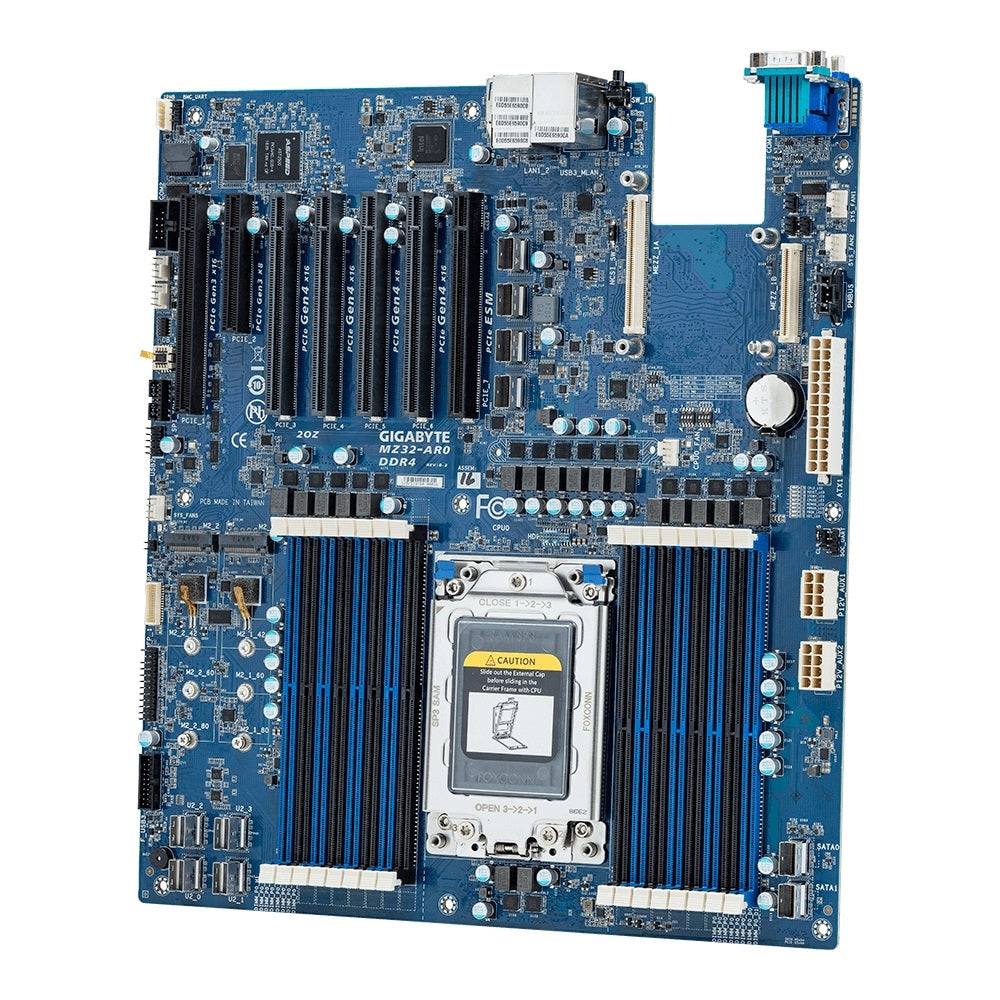

Gigabyte MZ32-AR0 Motherboard - AMD EPYC 7002 Socket SP3 DDR4 64G 128G SATA PCIE

Marketing Information

• Single AMD EPYC™ 7002 series processor family
• 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
• 2 x 1Gb/s LAN ports (Intel® I350-AM2)
• 1 x Dedicated management port
• 2 x SlimSAS (with 8 x SATA 6Gb/s) ports
• 4 x SlimSAS (with 4 x NVMe) ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• Up to 5 x PCIe Gen4 slots and 2 x PCIe Gen3 slots
• 1 x OCP 2.0 Gen3 x16 mezzanine slot
• Aspeed® AST2500 remote management controller
  • PCIe Gen 4.0 Ready
  • AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.
  • * The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
  • Higher Memory Speed
  • AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)
  • More M.2 Storage
  • GIGABYTE’s AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage – both onboard M.2 slots and extra capacity via optional riser cards.

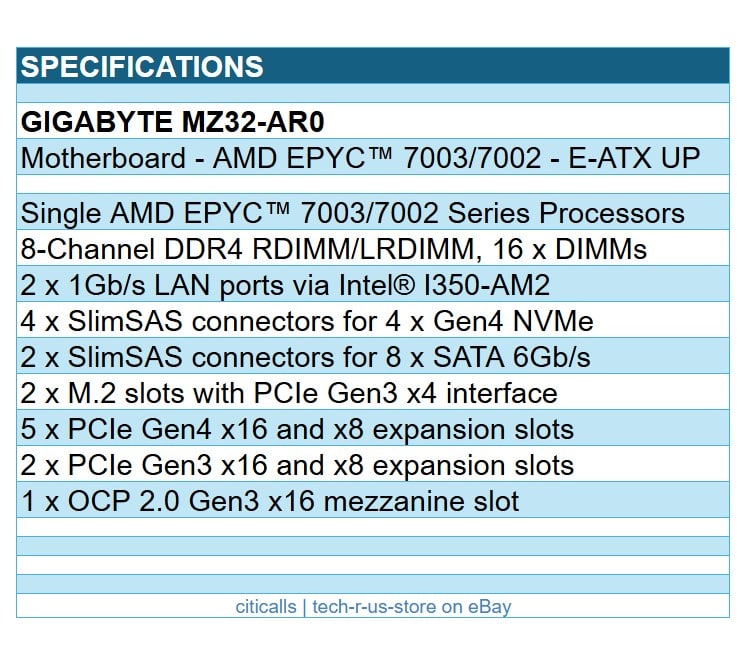

Detail Specifications

• Form Factor: E-ATX
• 305W x 330D (mm)
• CPU:
  • AMD EPYCTM 7002 series processor family
  • Single processor, 7nm, Socket SP3
  • Up to 64-core, 128 threads per processor
  • cTDP up to 240W
  • Compatible with AMD EPYCTM 7001 series processor family
• Socket: Socket SP3
• Chipset: System on Chip
• Memory
  • 16 x DIMM slots
  • DDR4 memory supported only
  • 8-Channel memory architecture
  • RDIMM modules up to 64GB supported
  • LRDIMM modules up to 128GB supported
  • Memory speed: Up to 3200/ 2933 MHz
  • - Note:
  • Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
• LAN
  • 2 x 1GbE LAN ports (1 x Intel I350-AM2)
  • 1 x 10/100/1000 management LAN
• Video
  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 at 60Hz 32bpp
• Audio
• -
• SAS
• -
• SATA
• 2 x SlimSAS 4i for 8 x SATA ports
• RAID
• -
• Expansion Slots
  • Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot shared with 4 x NVMe ports
  • Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
  • Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
  • Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
  • Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
  • Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
  • Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot shared with slot_2
  • 1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
  • 2 x M.2 slots:
  • - M-key
  • - PCIe Gen3 x4
  • - Supports NGFF-2242/2260/2280 cards
  • 4 x NVMe ports:
  • - SlimSAS 4i type
  • - PCIe Gen3 x4 per port
  • - Shared with Slot_7 PCIe Gen4 x16 slot
• Internal I/O
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 10 x SlimSAS connectors
  • 2 x M.2 slots
  • 1 x CPU fan headers
  • 5 x System fan headers
  • 1 x USB 3.0 header
  • 1 x USB 2.0 header
  • 1 x COM_2 header
  • 1 x TPM header
  • 1 x Front panel header
  • 1 x HDD back plane board header
  • 1 x PMBus connector
  • 1 x IPMB connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper
  • 1 x Buzzer

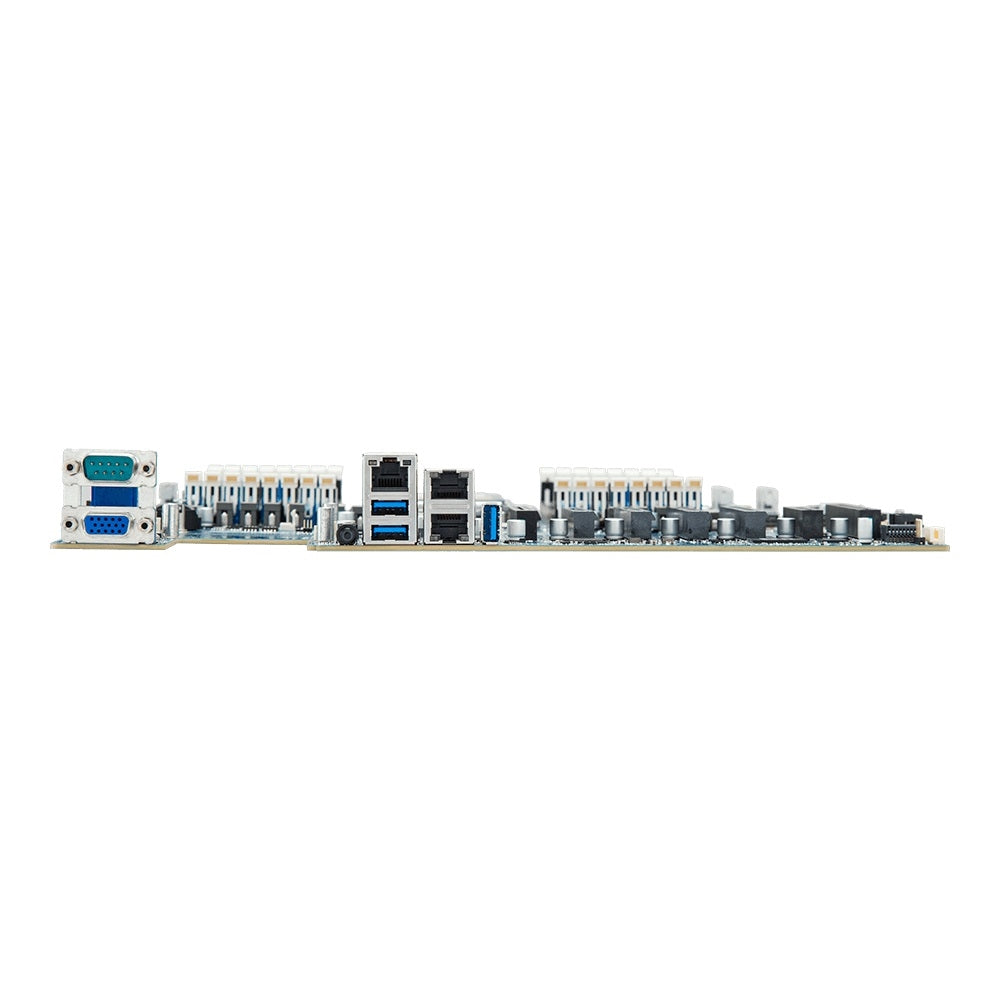

• Rear I/O
  • 3 x USB 3.0
  • 1 x VGA
  • 1 x COM_1
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED
• TPM
  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010
• OS Compatibility
  • Windows Server 2016 ( X2APIC/256T not supported)
  • Windows Server 2019
  • Red Hat Enterprise Linux 7.6 ( x64) or later
  • Red Hat Enterprise Linux 8.0 ( x64) or later
  • SUSE Linux Enterprise Server 12 SP4 ( x64) or later
  • SUSE Linux Enterprise Server 15 SP1 ( x64) or later
  • Ubuntu 16.04.6 LTS (x64) or later
  • Ubuntu 18.04.3 LTS (x64) or later
  • VMware ESXi 6.5 EP15 or later
  • VMware ESXi 6.7 Update3 or later
  • Citrix Hypervisor 8.1.0
• Board Management
  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup and Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
• PSU Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
• Operating Properties
• Operating temperature: 10oC to 40oC
• Operating humidity: 8-80% (non-condensing)
• Non-operating temperature: -40oC to 60oC
• Non-operating humidity: 20%-95% (non-condensing)

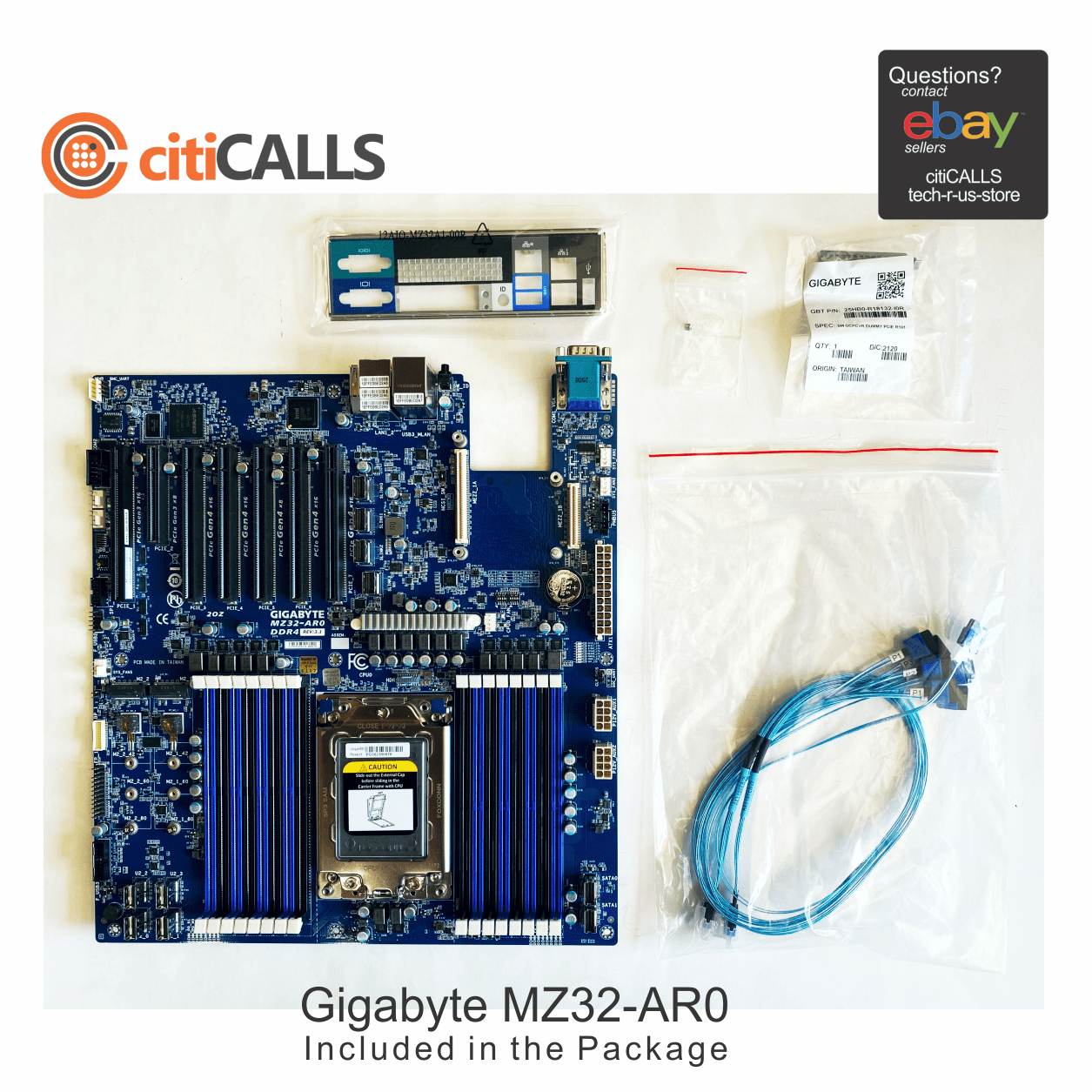

• Retail Packaging Content
• 1 x MZ32-AR0
• 1 x I/O shield
• 1 x Quick start guide
• 2 x SlimSAS for 8 x SATAIII 6Gb/s cables
• Single Box dimensions: 409 x 355 x 78 mm
• Carton dimension: 729 x 415 x 432 mm
• Quantity: 10 x single box with one carton
• Bulk Packaging Content
• 10 x MZ32-AR0
• 10 x I/O shields
• Carton dimensions: 600 x 473 x 495 mm
• Reference Numbers
• Retail: 9MZ32AR0MR-00
• Bulk: 9MZ32AR0NR-00
• Part Numbers:
• - I/O shield: 12AIO-MZ32A0-00R
• - SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
• - Fan-sink: 12SF2-01A067-00R ( in option)
