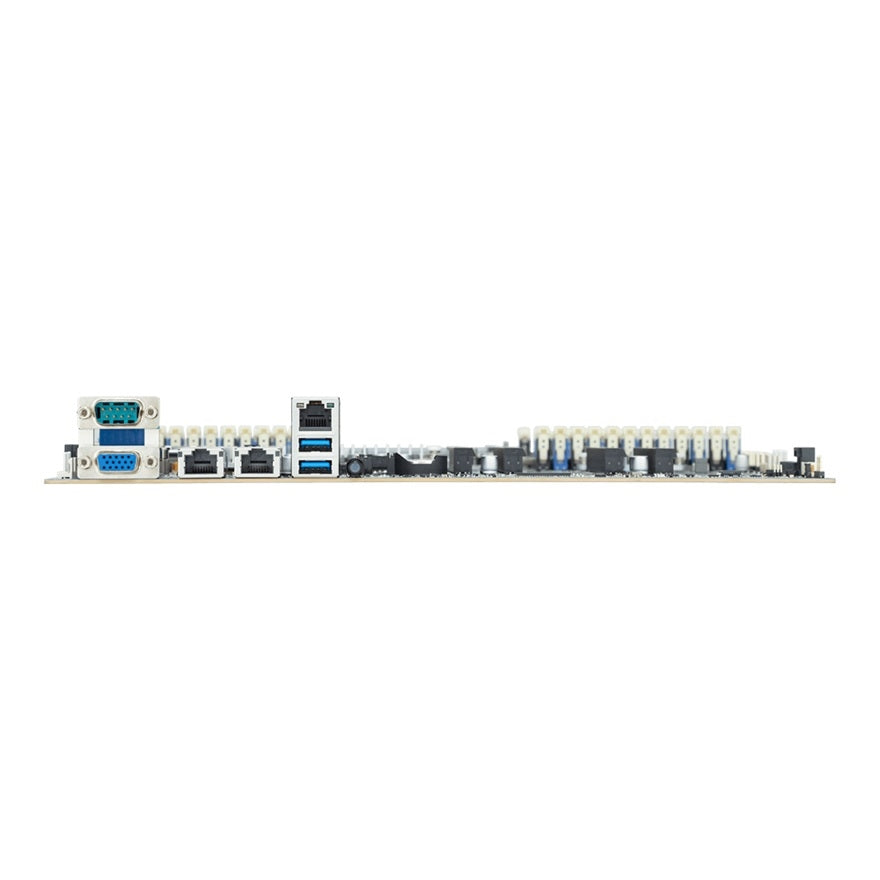

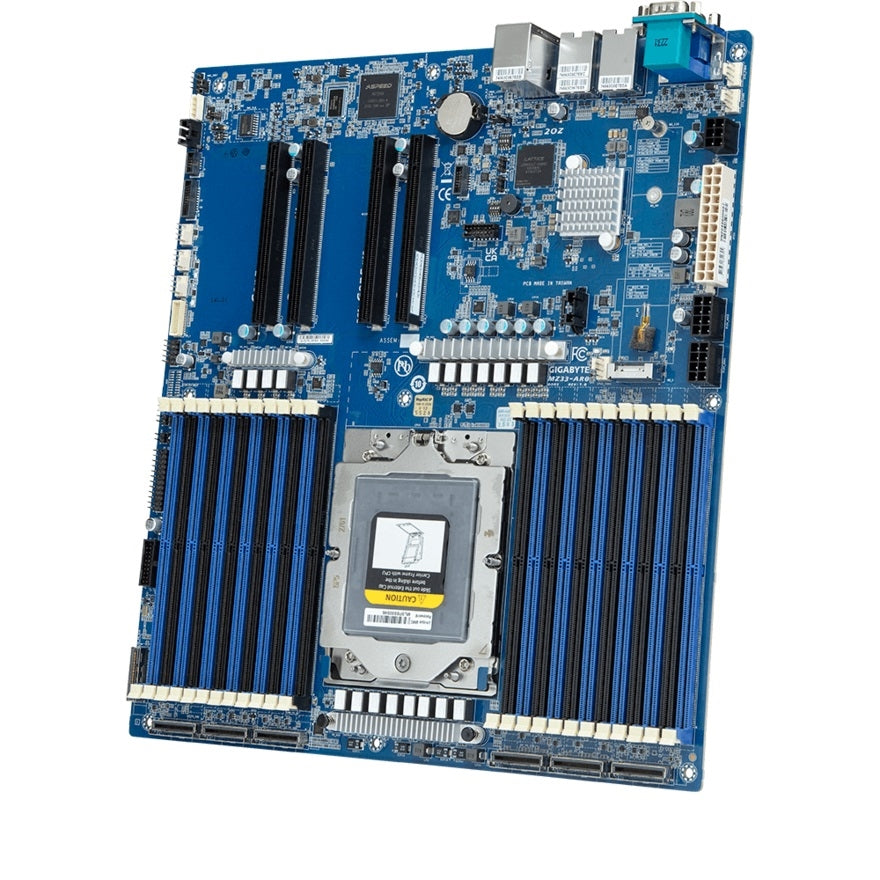

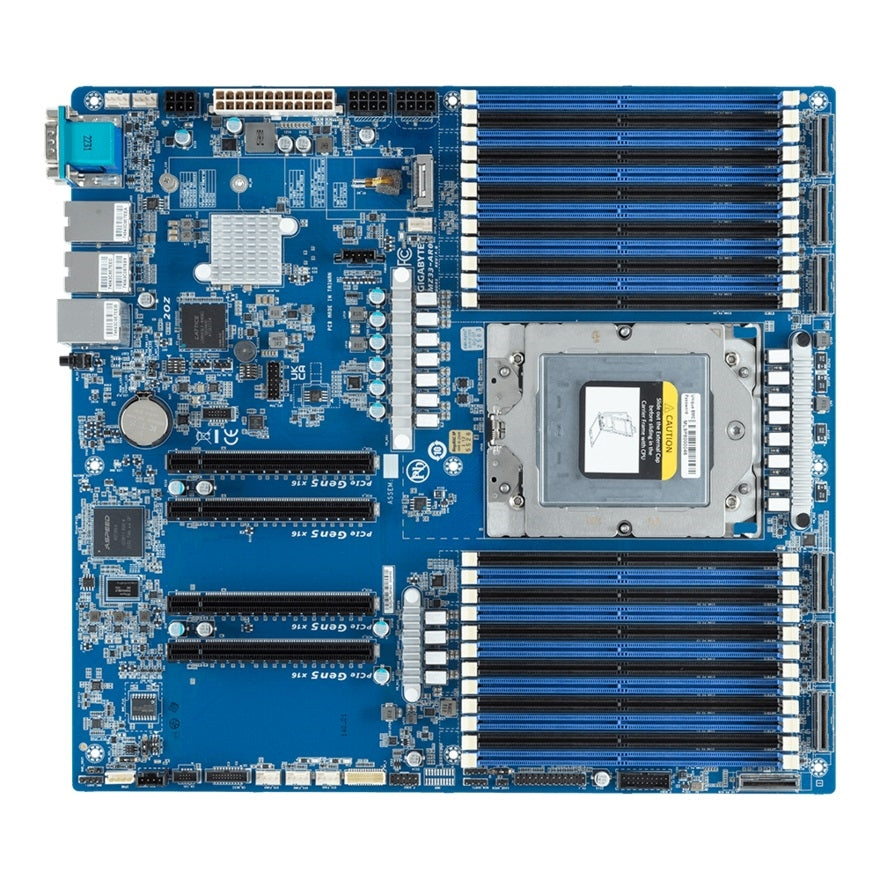

Gigabyte MZ33-AR0 Motherboard System on Chip LGA6096 Socket SP5 AMD EPYC9004

SKU: 269262
MPN: MZ33-AR0

Marketing Information:

• Motherboard - AMD EPYC™ 9004 - E-ATX UP
• Single AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
• 12-Channel RDIMM DDR5, 24 x DIMMs
• 2 x 10Gb/s LAN ports via Broadcom® BCM57416
• 2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
• 4 x MCIO 8i connectors with PCIe Gen5 x8 interface
• 1 x MCIO 8i connector with PCIe Gen4 x8 interface
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 4 x PCIe Gen5 x16 expansion slots

Detail Specifications:
Form Factor
E-ATX

CPU

• AMD EPYCTM 9004 Series Processors
• AMD EPYCTM 9004 Series Processors with AMD 3D V-CacheTM Technology
• Single processor, 5nm technology
• Up to 128 cores, 256 threads
• cTDP up to 400W

Socket
1 x LGA 6096
Socket SP5

Chipset
System on Chip

Memory

• 24 x DIMM slots
• DDR5 memory supported only
• 12-Channel memory architecture
• RDIMM up to 96GB supported
• 3DS RDIMM up to 256GB supported
• Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

LAN

• 2 x 10Gb/s LAN ports (1 x Broadcom BCM57416)
• Support NCSI function
• 1 x 10/100/1000 Mbps Management LAN

Video

• Integrated in Aspeed AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200 at 60Hz 32bpp

Audio
N/A

Storage Interface

• 2 x MCIO 8i connectors for 4 x Gen5 NVMe or 16 x SATA 6Gb/s
• 4 x MCIO 8i connectors for 8 x Gen5 NVMe
• 1 x MCIO 8i connector for 2 x Gen4 NVMe

RAID
N/A

Expansion Slots

• Slot_7: PCIe x16 (Gen5 x16) slot
• Slot_6: PCIe x16 (Gen5 x16) slot
• Slot_4: PCIe x16 (Gen5 x16) slot
• Slot_3: PCIe x16 (Gen5 x16) slot

Warranty Information
1 Year from Gigabyte
