Gigabyte uATX-Q47EA Motherboard Q470E S1200 128GB DDR4 microATX Brown Box

• Micro ATX form factor
• Support 11th/10th Generation Intel® Core™ Processors
• Intel® Q470E Express Chipset
• Dual Channel Non-ECC Unbuffered DDR4, 4 x DIMMs

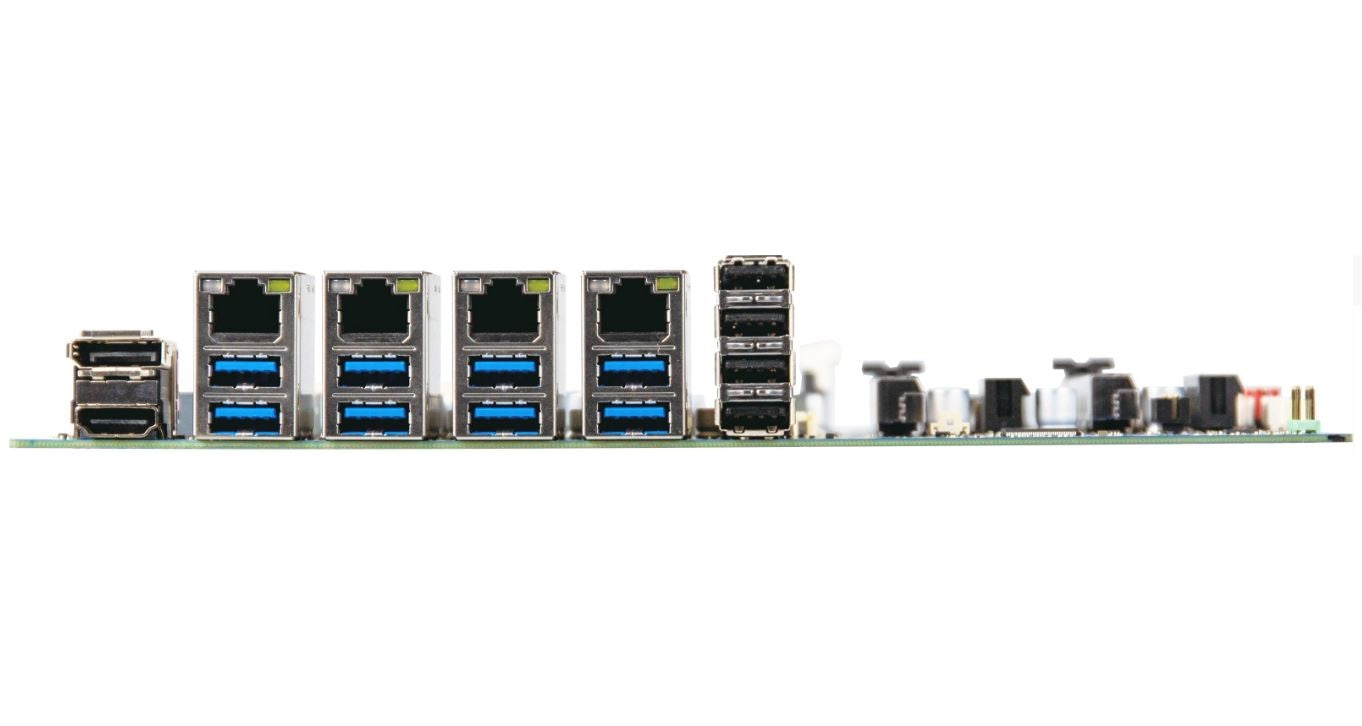

• 4 x GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• HDMI 1.4, Display port, VGA, LVDS for multiple displays
• Realtek® Audio Codec
• Up to 4 x PCIe Gen3 expansion slots
• 16 x USB Ports
• 1 x COM header (RS-232/422/485 & RI/5V/12V)
• 1 x COM header (RS-232 & RI/5V/12V)
• 2 x COM headers (RS-232)

• Support for 11th/10th Generation
• Intel CoreTM i9/i7/i5/i3, Pentium and Celeron processors in the LGA1200 package
• TDP under 95W

• Integrated Graphics Processor - depends on CPU:
• 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 at 30Hz
• 1 x Display port, supporting a maximum resolution of 4096x2160 at 60Hz
• 1 x VGA port, supporting a maximum resolution of 1920x1200 at 60Hz
• 1 x LVDS port, supporting a maximum resolution of 1920x1080 at 60Hz
• (3 independent display outputs)

• 2 x PCIe Gen3 x8 (or only 1 x PCIe Gen3 x16 on PCIe x16_A slot as optional)
• 1 x PCIe x4 (Gen3 x4)
• 1 x PCIe x1 (Gen3 x1)
• 1 x 2230 M.2 E-Key (PCIe x1 + USB 2.0)
• 1 x 2280/2242 M.2 M-Key (PCIe x4, SATA 6Gb/s)
