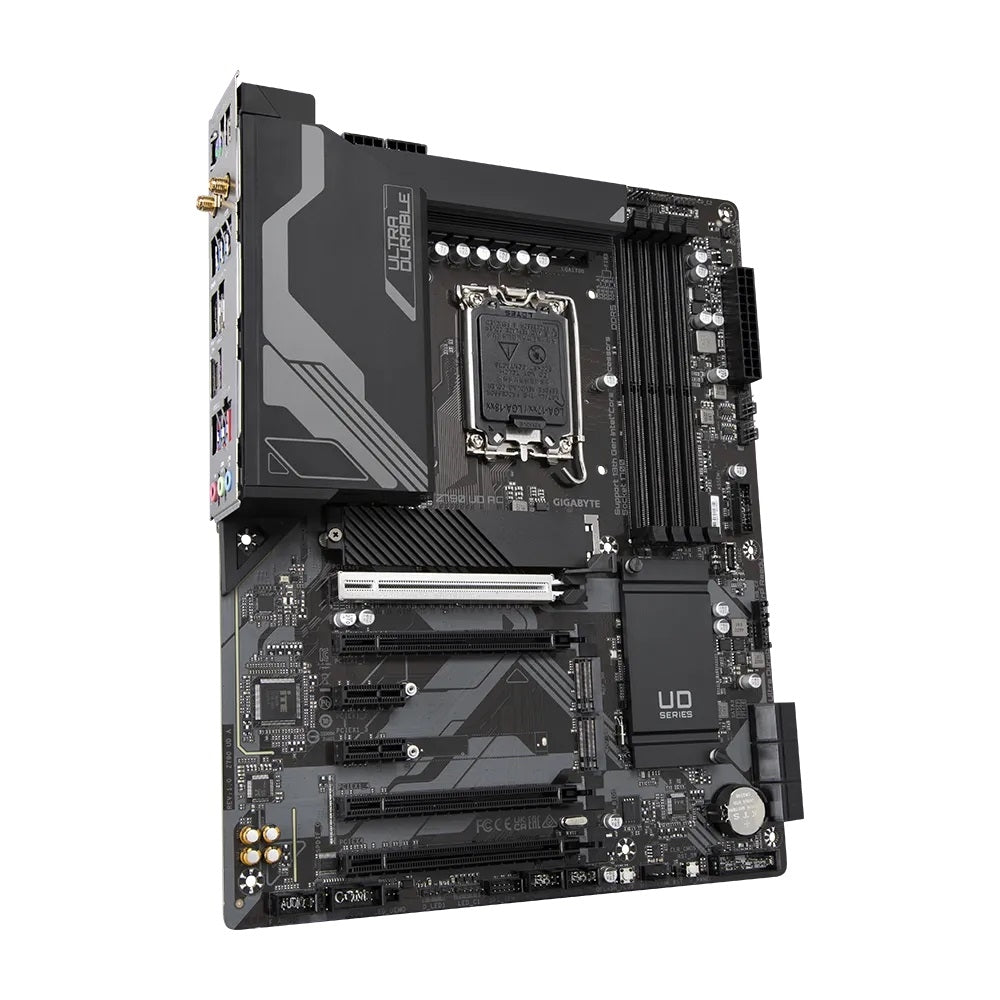

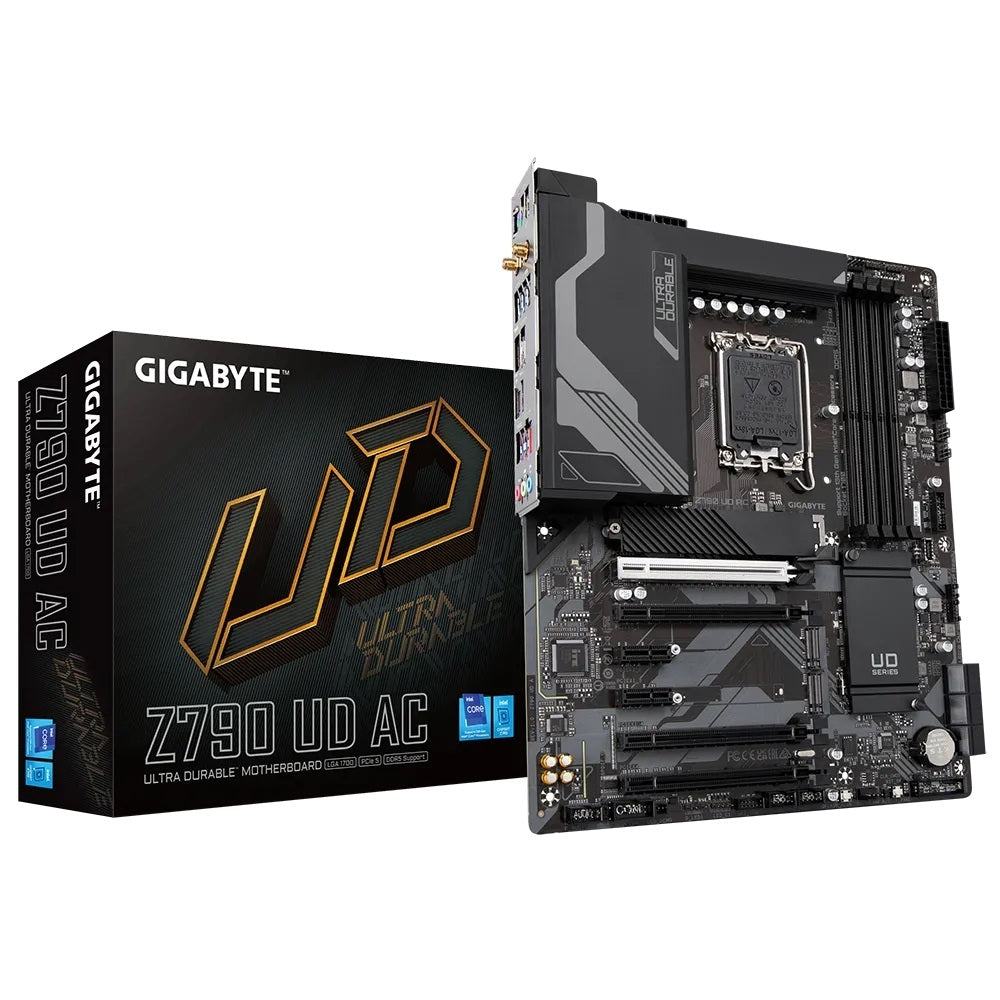

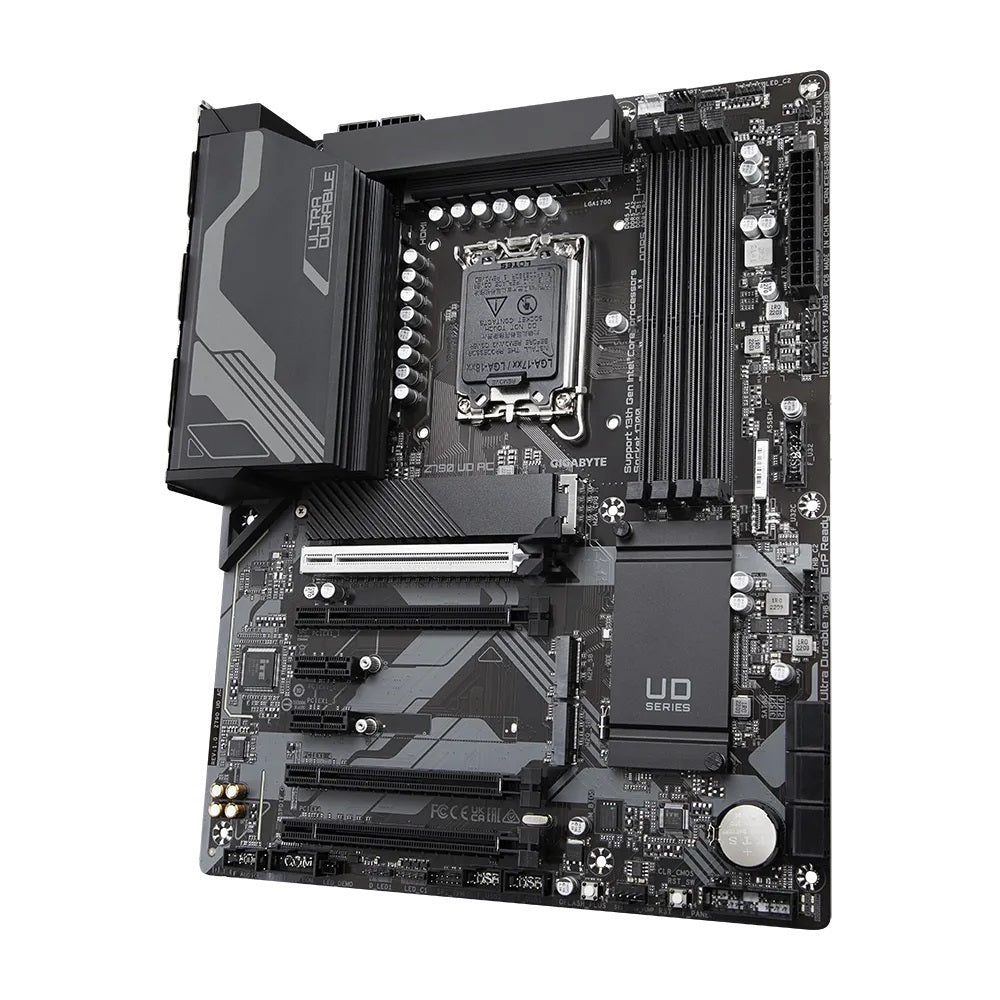

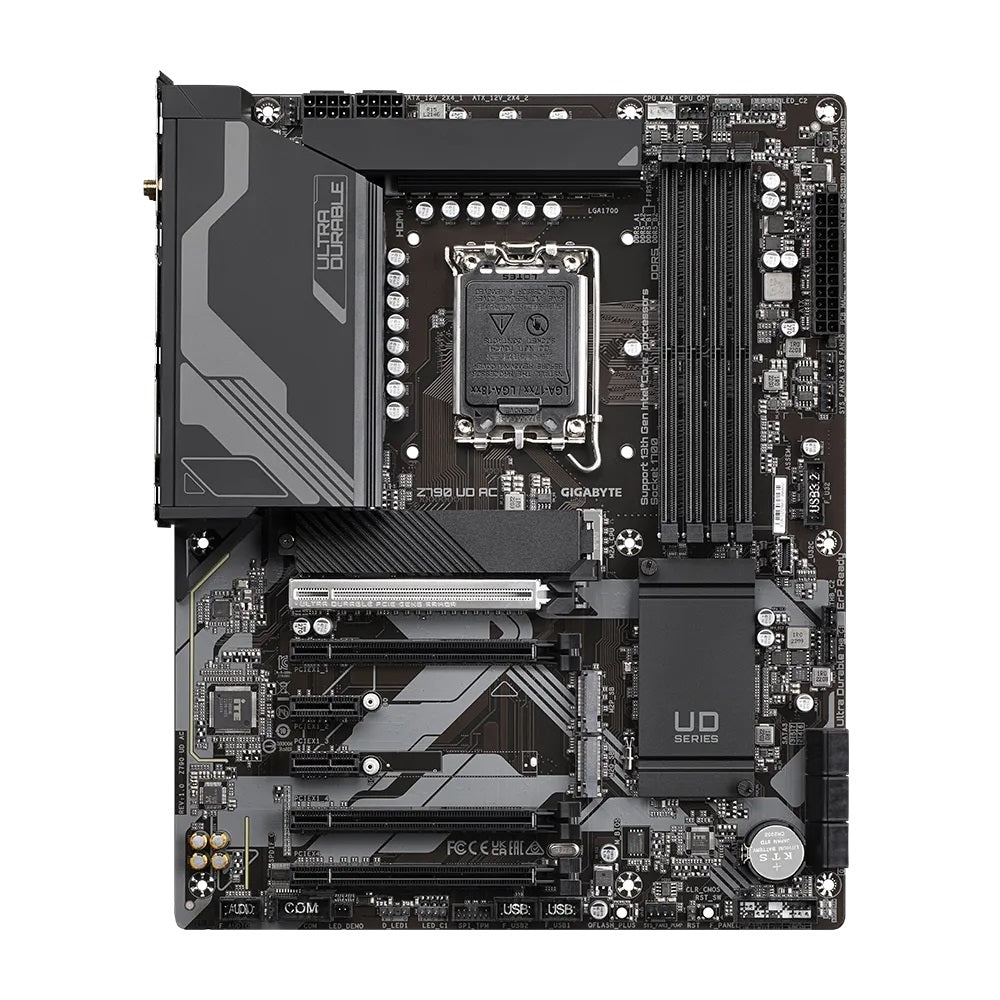

Gigabyte Z790 UD AC LGA 1700 Intel Z790 ATX Motherboard with DDR5

Product Information

• Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors.
• DDR5 Compatible: Dual Channel DDR5, 4 DIMMs.
• Sturdy Power Design: 16+1+1 Twin Hybrid Phases Digital Power Design with 60A DrMOS.
• Comprehensive Thermal Design: Fully Covered MOSFET Heatsinks, M.2 Thermal Guard, Ultra Durable Armor, 6-layer PCB.
• Next Gen Connectivity: PCIe 5.0, Triple NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C.
• Fast Networking: 2.5GbE LAN, Intel Wi-Fi, BT.
• Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU.

Specs

• Brand: GIGABYTE
• Model: Z790 UD AC
• CPU Socket Type: LGA 1700
• CPU Type: Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
• Chipset : Intel Z790
• Number of Memory Slots: 4x288pin (DDR5)
• Memory Standard: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Maximum Memory Supported: 192GB
• Channel Supported: Dual Channel
• Expansion Slots
• PCI Express 5.0 x16: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• PCI Express 4.0 x16: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• PCI Express 3.0 x16: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
• PCI Express x1: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
