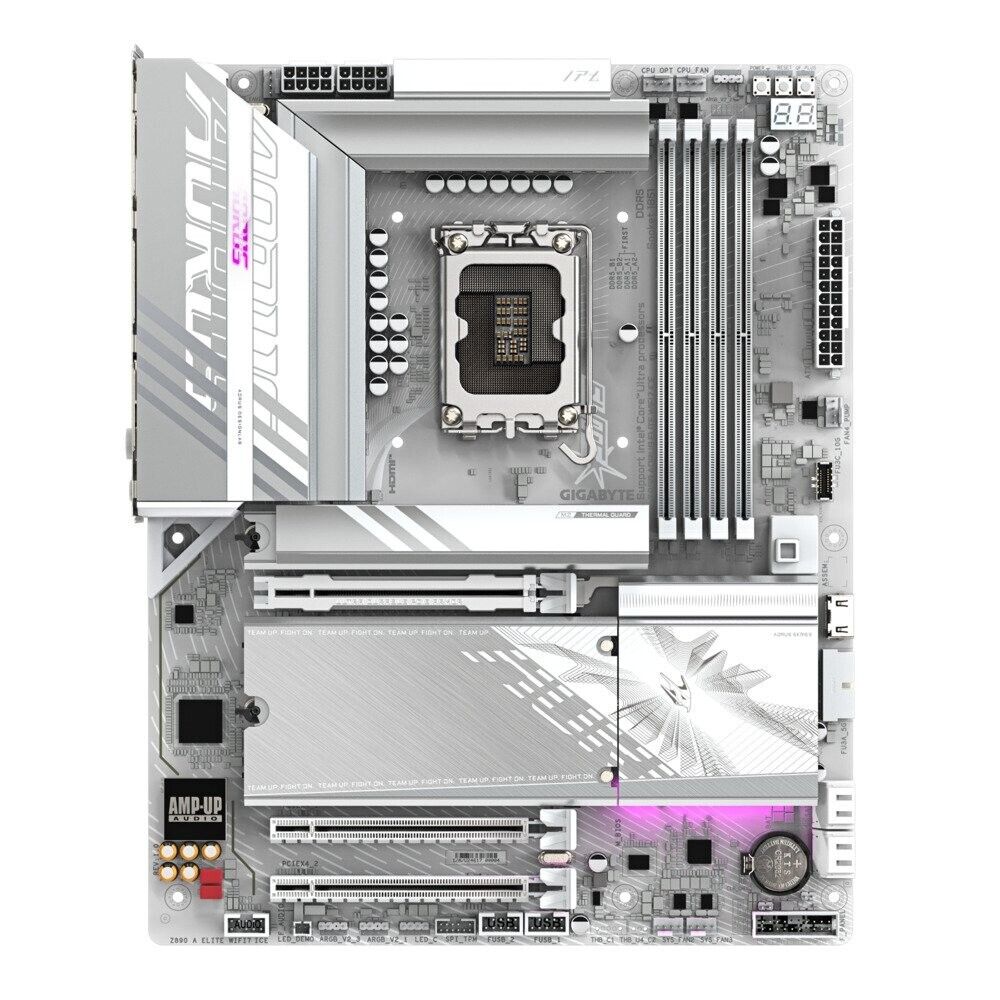

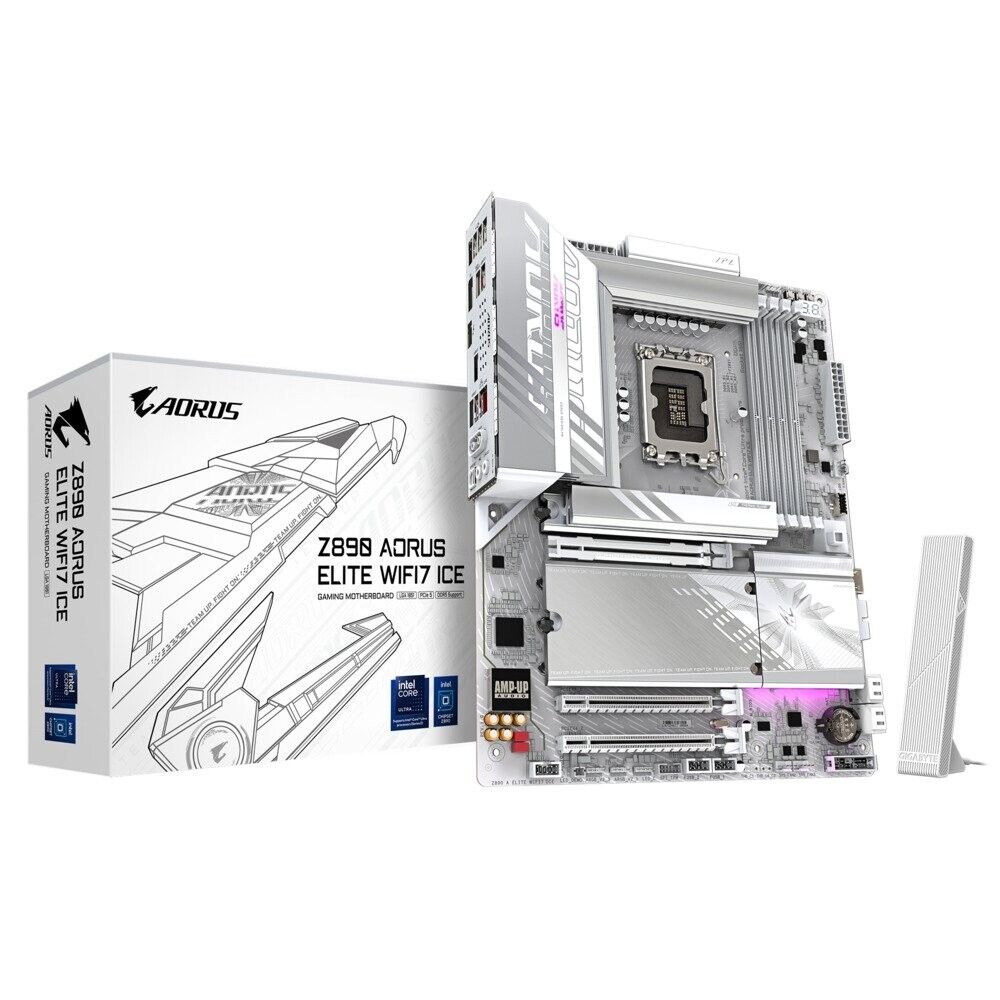

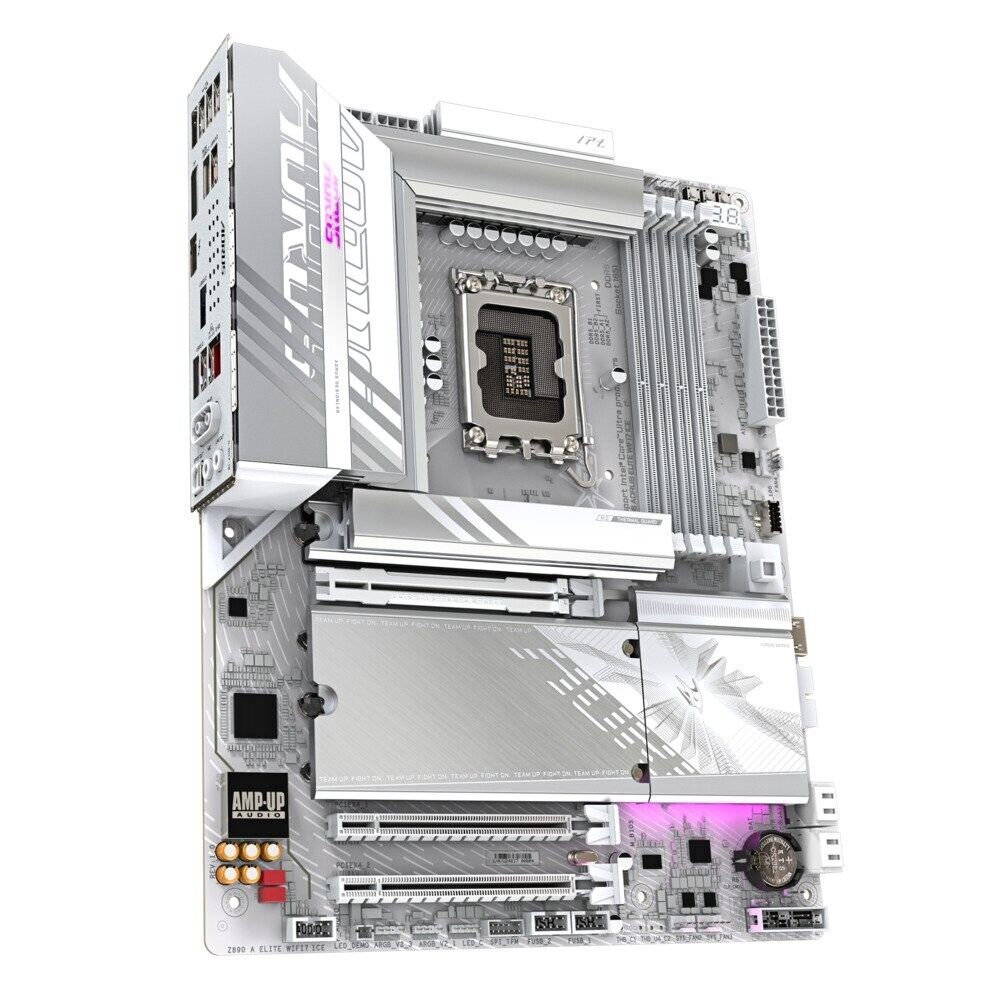

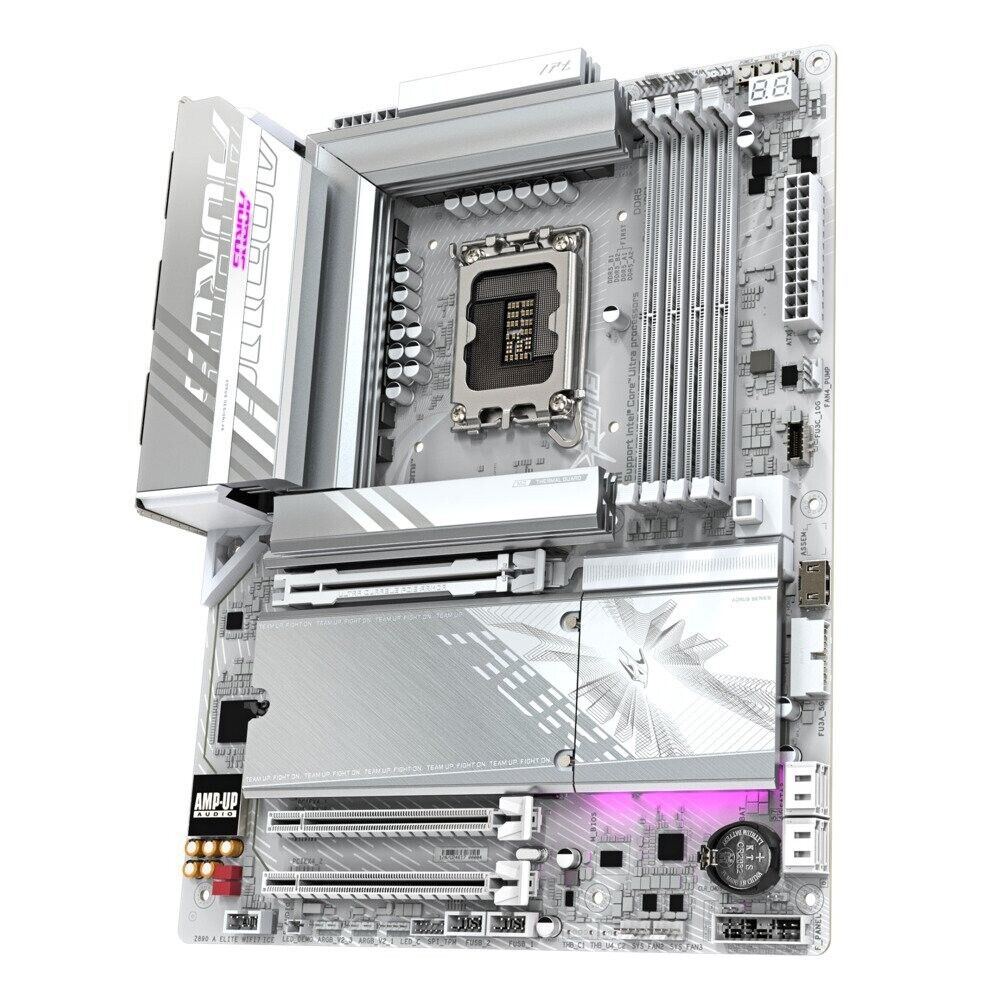

Gigabyte Z890M AORUS ELITE WF7 ICE Ultra Core Series 2 LGA 1851 Intel Z890 DDR5

MPN: Z890M AORUS ELITE WF7 ICE

Main Features

• CPU
• -LGA1851 socket: Support for Intel Core Ultra Processors
• -L3 cache varies with CPU
• Chipset: Intel Z890 Express Chipset
• Memory
• -Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules
• -4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• -Dual channel memory architecture
• -Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• -Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• -Support for Extreme Memory Profile (XMP) memory modules
• -Support CUDIMM memory module
• Onboard Graphics
• -Integrated Graphics Processor-Intel HD Graphics support:
• -1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs
• -When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
• -When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
• -1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• -1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• -Support for up to triple-display at the same time
• Audio
• -Realtek ALC1220 CODEC
• -High Definition Audio
• -2/4/5.1/7.1-channel
• -Support for S/PDIF Out
• LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• -Wireless Communication module
• -MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
• -802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• -BLUETOOTH 5.4
• -Support for 11be 160MHz wireless standard
• -Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
• -802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• -BLUETOOTH 5.4
• -Support for 11be 160MHz wireless standard
• Expansion Slots
• -CPU:
• -1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• -Chipset:
• -2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
• Storage Interface
• CPU:
• -1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• -1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• -Chipset:
• -1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• -1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
• -4 x SATA 6Gb/s connectors
• -RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• -RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
• -CPU: 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel
• -Chipset:
• -1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
• -2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• -5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• -Chipset+2 USB 2.0 Hubs:
• -8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• -1 x 24-pin ATX main power connector
• -2 x 8-pin ATX 12V power connectors
• -1 x CPU fan header
• -1 x CPU fan/water cooling pump header
• -3 x system fan headers
• -1 x system fan/water cooling pump header
• -3 x addressable RGB Gen2 LED strip headers
• -1 x RGB LED strip header
• -4 x M.2 Socket 3 connectors
• -4 x SATA 6Gb/s connectors
• -1 x front panel header
• -1 x front panel audio header
• -1 x USB Type-C header, with USB 3.2 Gen 2 support
• -1 x USB 3.2 Gen 1 header
• -2 x USB 2.0/1.1 headers
• -1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• -1 x HDMI port (Note)
• -1 x power button
• -1 x reset button
• -1 x Q-Flash Plus button
• -1 x reset jumper
• -1 x Clear CMOS jumper

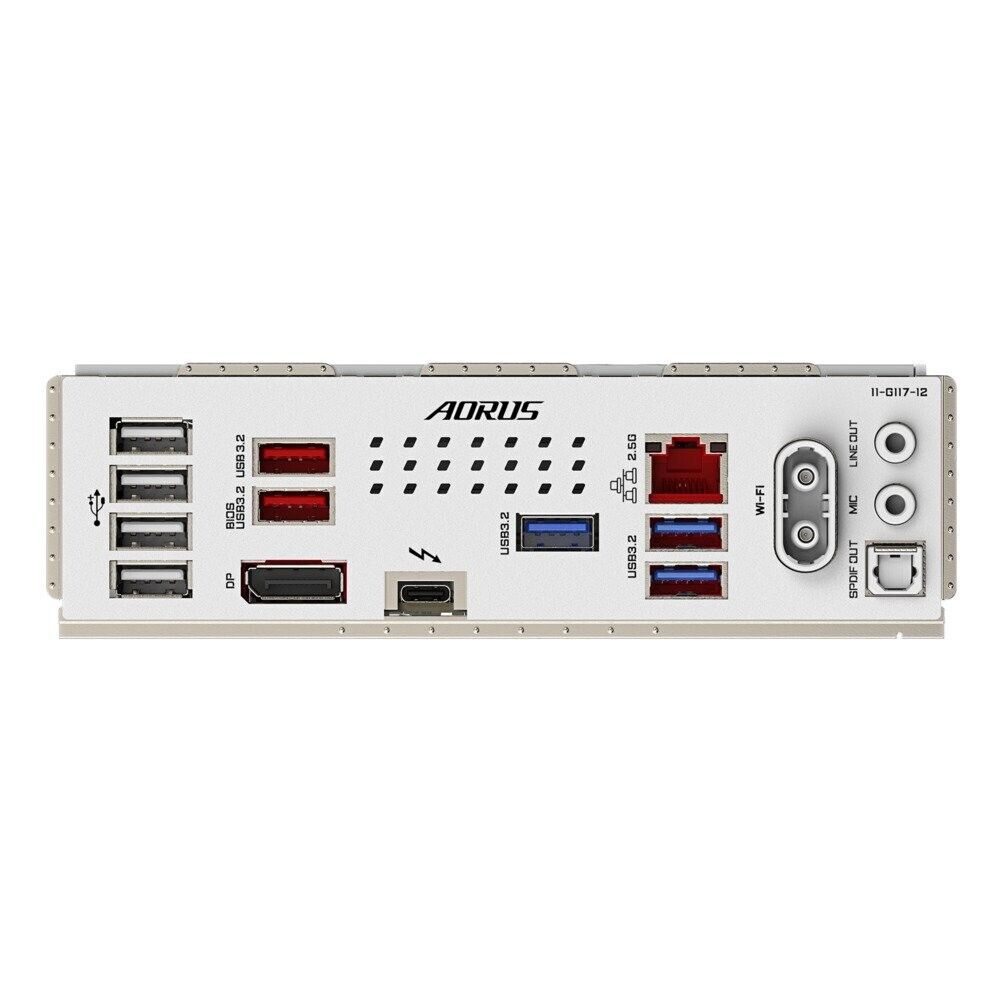

• Back Panel Connectors
• -1 x Intel Thunderbolt 4 connectors (USB Type-C ports)
• -2 x USB 3.2 Gen 2 Type-A ports (red)
• -3 x USB 3.2 Gen 1 ports
• -4 x USB 2.0/1.1 ports

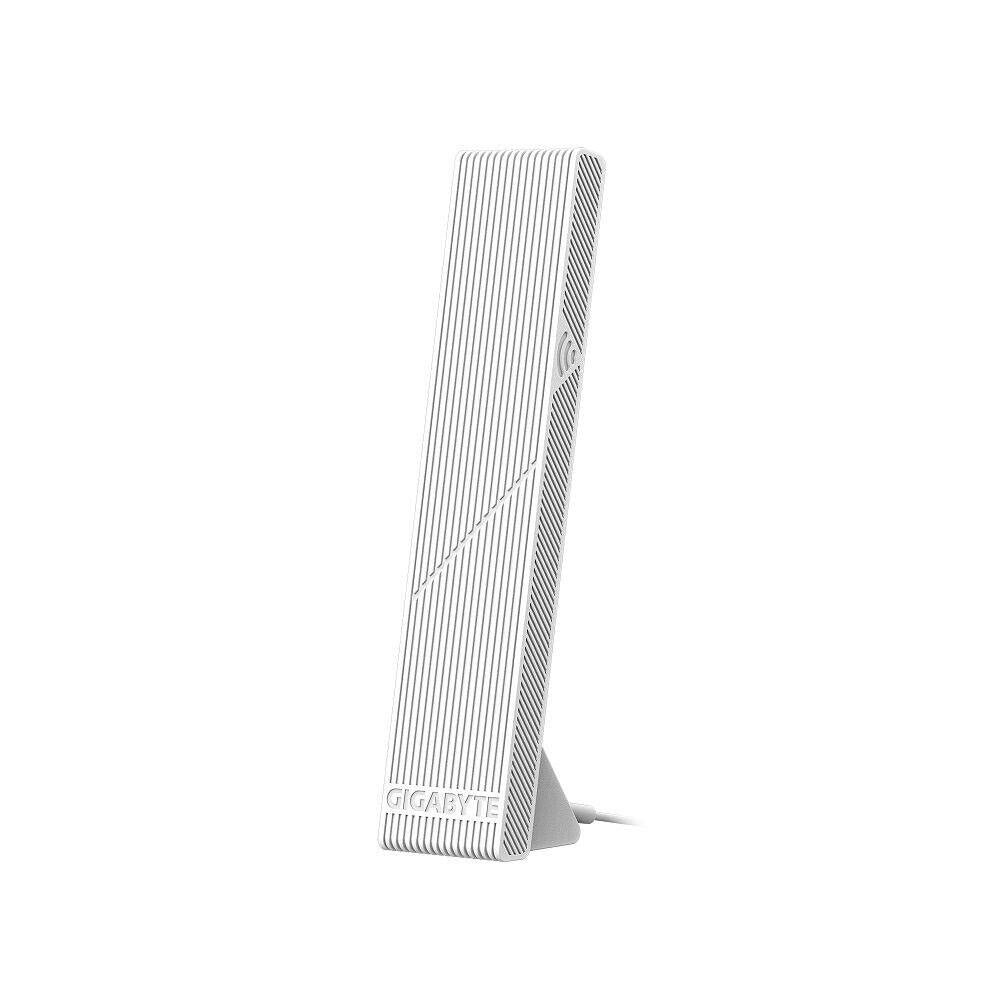

• -2 x antenna connectors (2T2R)
• -1 x DisplayPort (Note)
• -1 x RJ-45 port
• -1 x optical S/PDIF Out connector
• -2 x audio jacks
• I/O Controller
• -iTE I/O Controller Chip
• -H/W Monitoring
• -Voltage detection
• -Temperature detection
• -Fan speed detection
• -Water cooling flow rate detection
• -Fan fail warning
• -Fan speed control
• BIOS
• -1 x 256 Mbit flash
• -Use of licensed AMI UEFI BIOS
• -PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• -Support for GIGABYTE Control Center (GCC)
• -Support for Q-Flash
• -Support for Q-Flash Plus
• -Support for Smart Backup
• Bundled Software
• -Norton Internet Security (OEM version)
• -LAN bandwidth management software
• Operating System: Support for Windows 11 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
