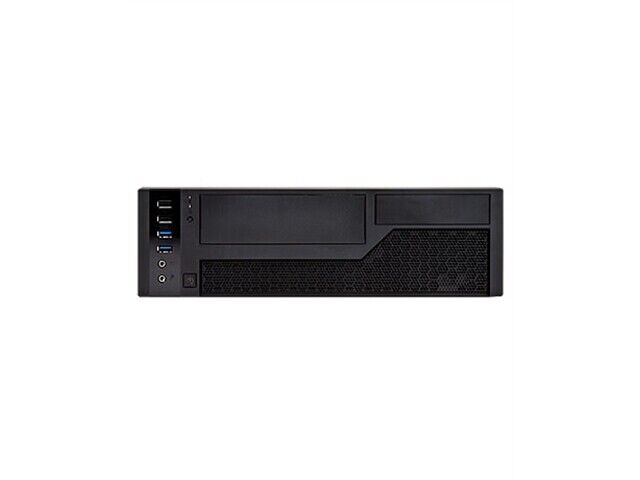

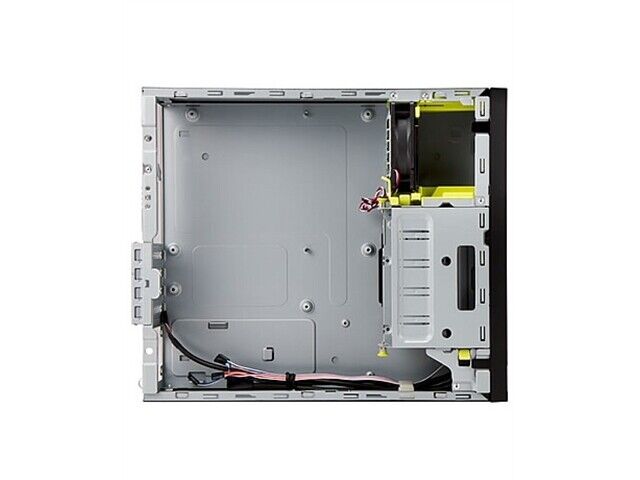

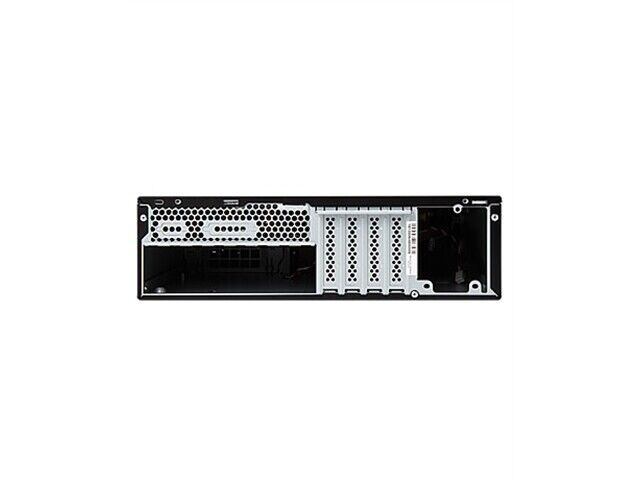

In-Win CE685.FH300TB3 Case mATX Slim Desktop BK 300W 1 1 (1) Bays USB3.0 HD Audi

Marketing Information

New Slim Chassis
Three Independent DisplaysInnovative thermal design without ventilation holes on the top, bottom or side panels. Placement in both Vertical or Horizontal stance.

Superior Thermal Solution
Front USB 3.0 PortsVacuum effect with a built-in 90mm front fan for quick heat dissipation.

Highly Expandable
Front USB 3.0 PortsEquipped with two USB 2.0 and two USB 3.0 ports for multiple USB device connections.

Easy Installation

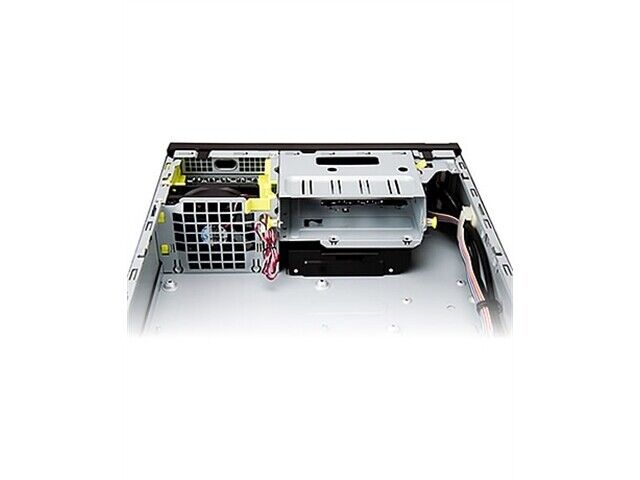

Front USB 3.0 PortsTool-free design for ODD, HDD, fan bracket and PCI slots .

Quick Release Side Cover
Front USB 3.0 PortsOne touch release for fast system assembly or maintenance.

Detail Specifications
Case Size
S.F.F Slim Chassis (Ultra Small Form Factor)

Color
Black

External Drive Bays
5.25" x 1, 3.5" x1 (Up to 92mm)

Internal Drive Bays
3.5" x 1, 2.5 x 1
Front Ports
USB 3.0 x 2 + USB 2.0 x 2, HD Audio

Dimensions (H x W x D)w/o Front Panel
334 x 96 x 370 mm (11.9L)
13.1" x 3.8" x 14.6"

MB Form Factor
Micro ATX / Mini-ITX
I / O Expansion Slots
Low Profile Slot x 4

Power Supply
Standard TFX 12V

Thermal Solution
90mm Front Fan x 1

Safety
Meets RoHS, CE and FCC Class B Requirements

Security
Padlock Loop / Kensington Slot
Optional
Removable Air Filter
Chassis Intrusion Switch
Tool-Free Side Panel

Warranty Information:
3 Years - Direct from the Manufacturer
