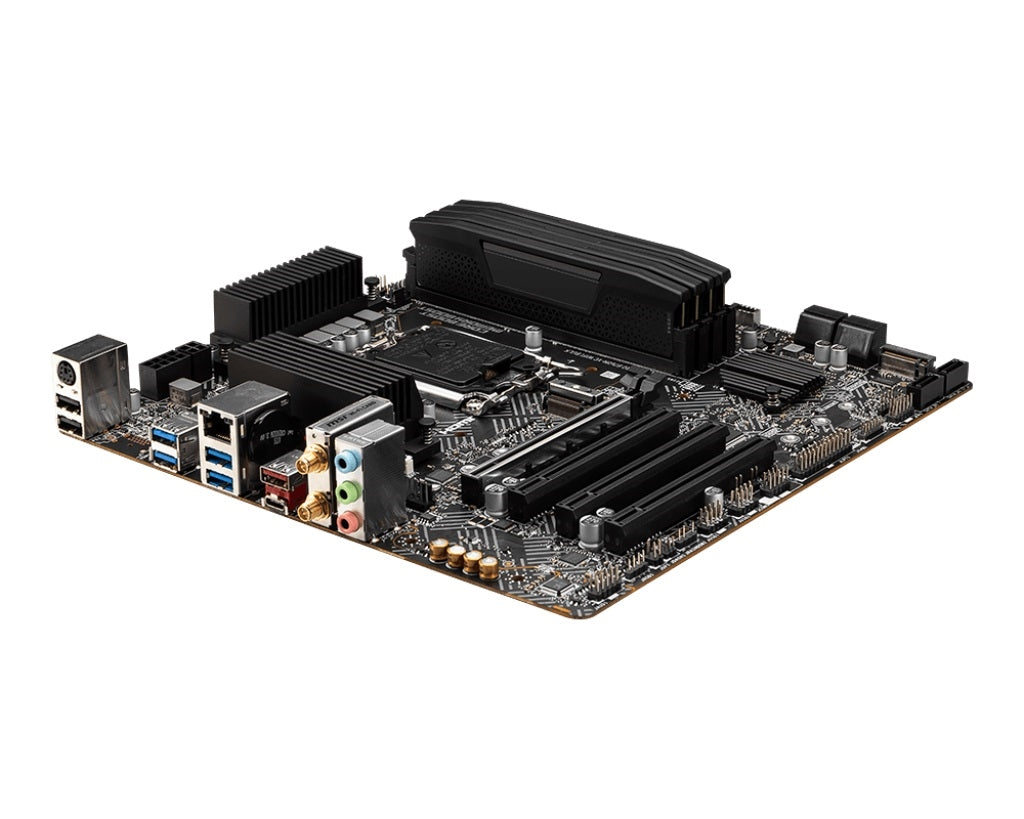

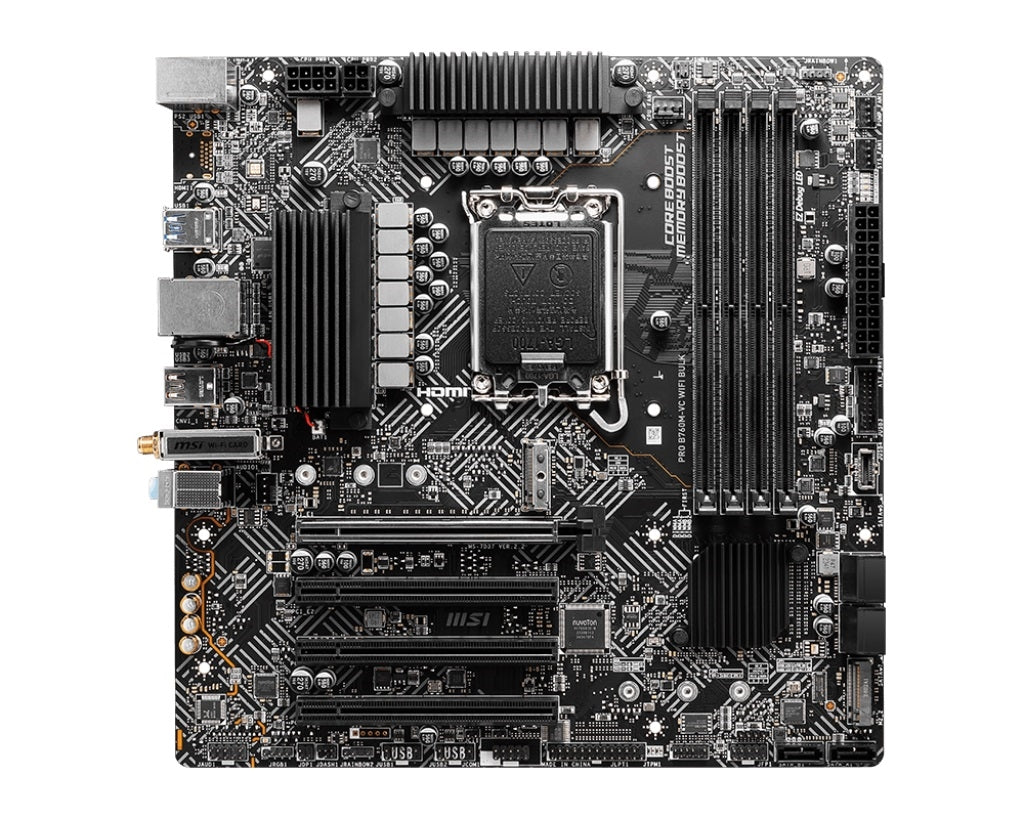

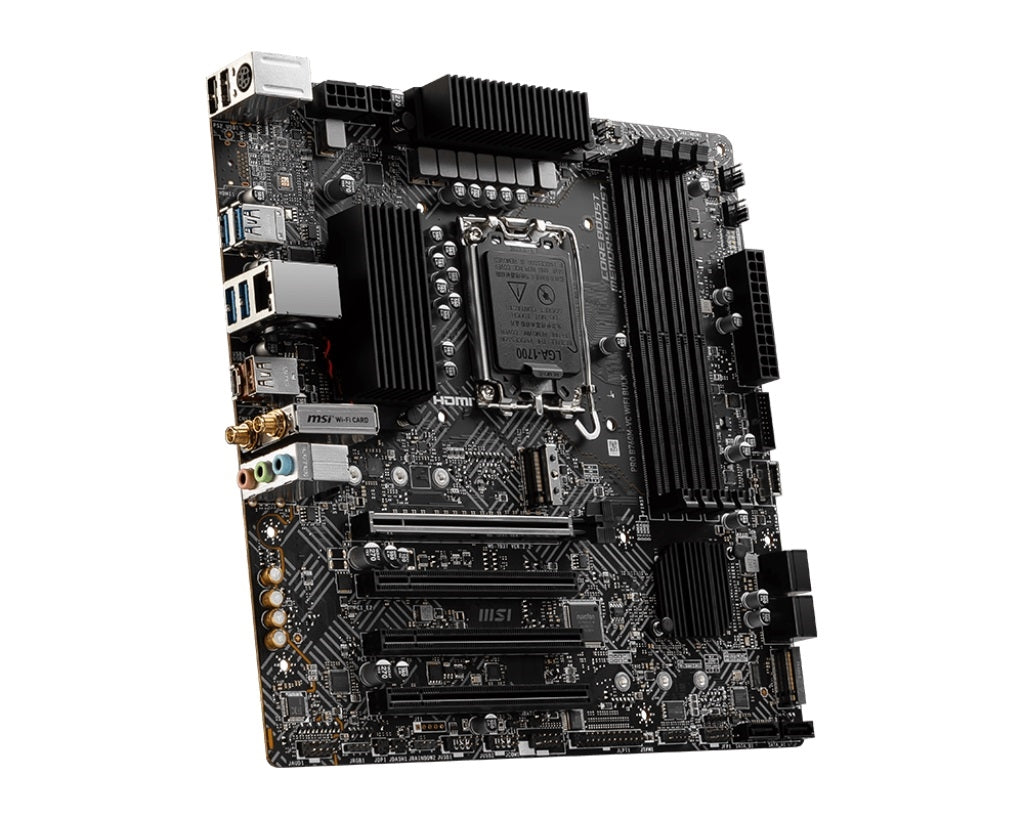

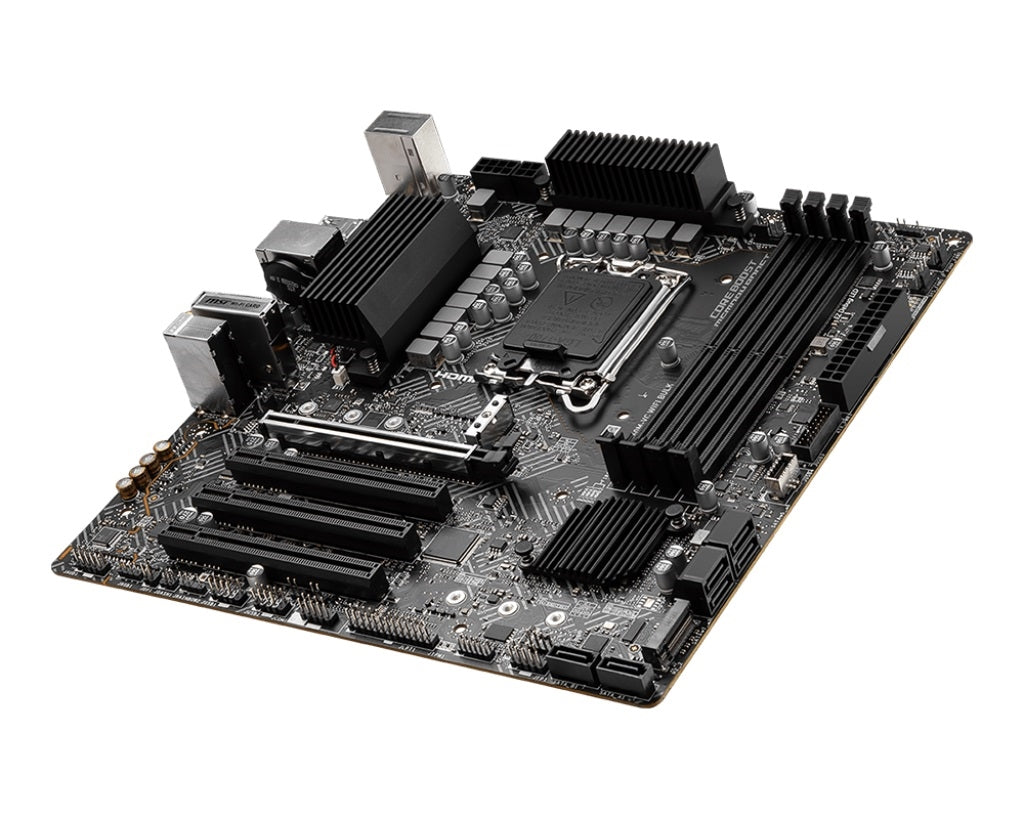

MSI B760MVCWIFIBULK B760 LGA1700 Max192GB DDR5 mATX Motherboard

Marketing Information

• PRO B760M-VC WIFI BULK
• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

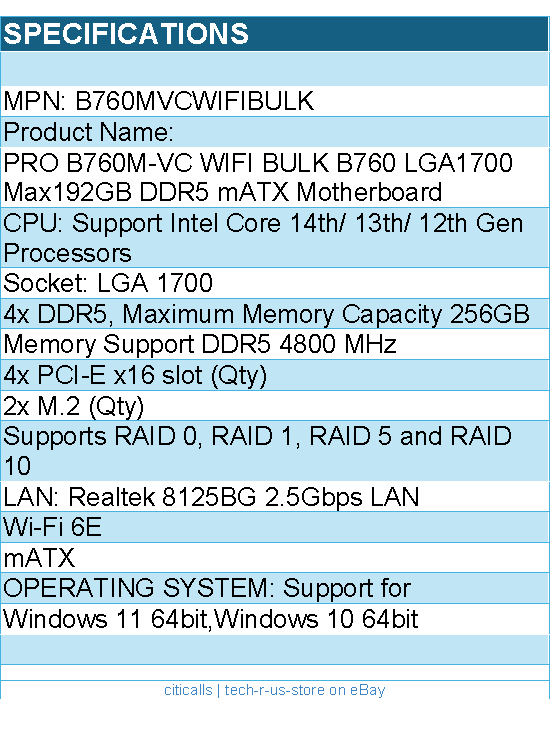

Detail Specifications

• Chipset: INTEL B760
• CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
• LGA 1700
• Memory
  • 4x DDR5, Maximum Memory Capacity 256GB
  • Memory Support DDR5 4800 MHz (by JEDEC and POR)
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6200+ MHz
  • 1DPC 2R Max speed up to 5200+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Intel XMP 3.0 OC
  • Supports Dual-Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
• Slot
  • 4x PCI-E x16 slot (Qty)
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Audio
• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio
• Storage
  • 2x M.2 (Qty)
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • 6x SATA 6G (Qty)
  • SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
• RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • SATA_A1 and SATA_B1 do not support RAID function.
• USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
  • 1x USB 10Gbps Type A (Rear)
  • 1x USB 10Gbps Type C (Rear)
• LAN: Realtek 8125BG 2.5Gbps LAN
• Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Printer Port (JLPT)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable RGB LED connector(JRAINBOW)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
• WIRELESS LAN AND BLUETOOTH
  • Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.3, FIPS, FISMA
  • Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 10 build 21H1 and Windows 11.
• LED FEATURE: 4x EZ Debug LED
• BACK PANEL PORTS:
  • Keyboard / Mouse
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
• OPERATING SYSTEM: Support for Windows 11 64-bit, Windows 10 64-bit
• PCB Info
• mATX
• 243.84mmx243.84mm
