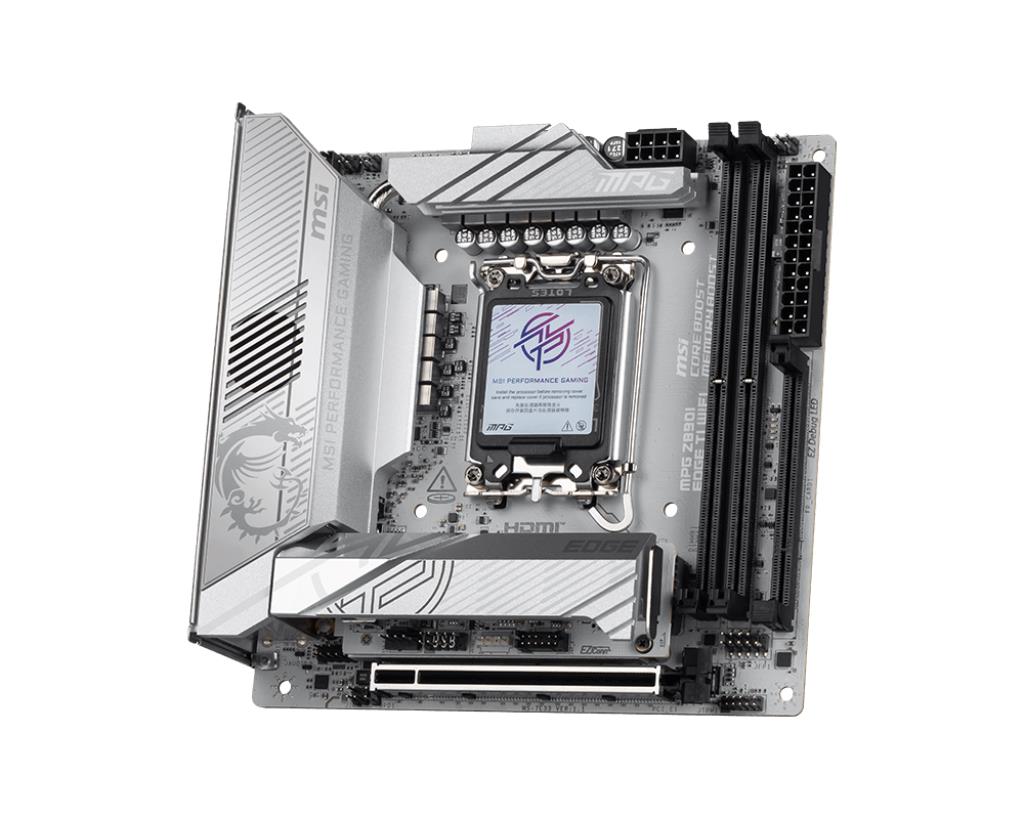

MSI Z890IEDGTIWIFI MB Edge TI LGA1851 Z890 2xDDR5 HDI- cDP TB M.2 RAID 5GBe mITX

SPECIFICATIONS

CHIPSET

• INTEL Z890

CPU

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

MEMORY

• 2x DDR5, Maximum Memory Capacity 128GB
  • Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 8600+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

ONBOARD GRAPHICS

• 1x HDMI™
  • Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
• 2x Type-C DisplayPort
• ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

• 1x PCI-E x16 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4

AUDIO

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio

Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

STORAGE

• 4x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
  • M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
• 2x SATA 6G

M.2_4 & 2x SATA are supported by 5-in-1 XPANDER
Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

• Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
• Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices

ONBOARD THUNDERBOLT

• 2x Thunderbolt4 ports (Rear)
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display

USB

• 2x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Front)
• 7x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER
USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN

• 1x Intel® Killer™ E5000B 5G LAN

INTERNAL IO

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 1x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Thermal Sensor connectors(T_SEN)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 1x TPM pin header(Support TPM 2.0)
• 2x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

• Intel® Killer™ BE1750x Wi-Fi 7
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

• 4x EZ Debug LED

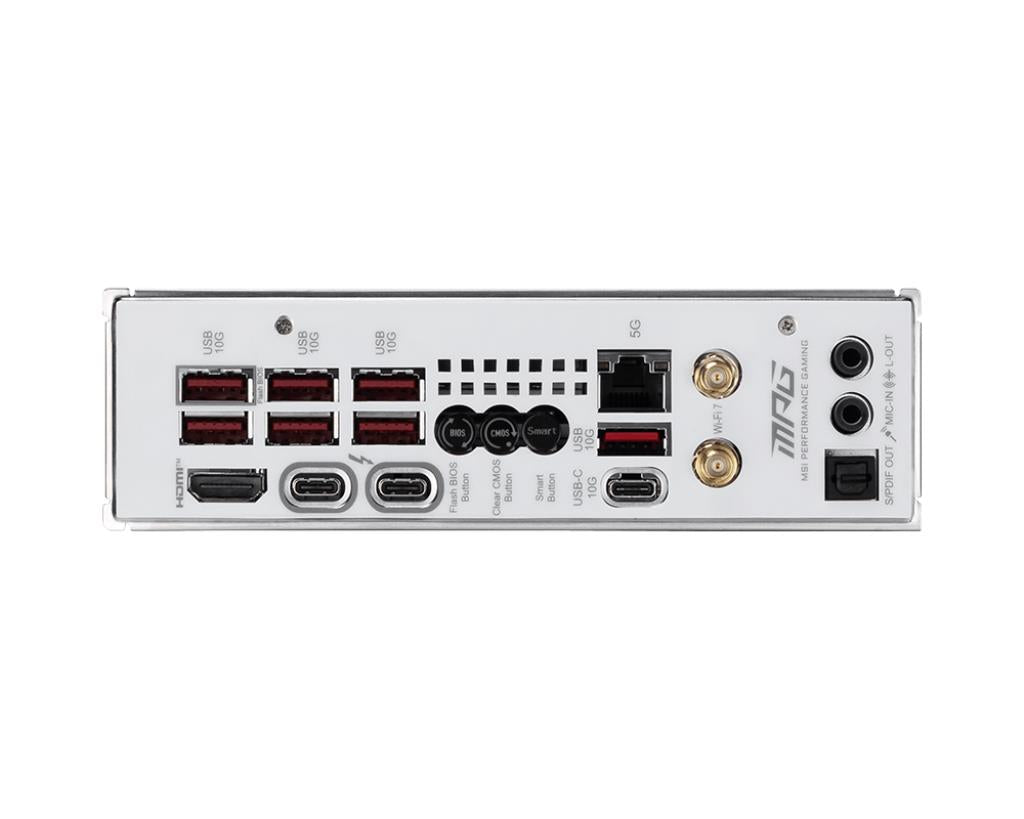

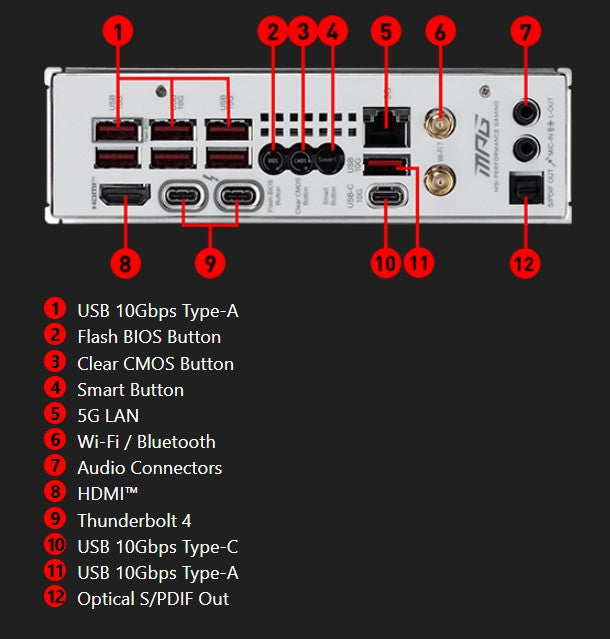

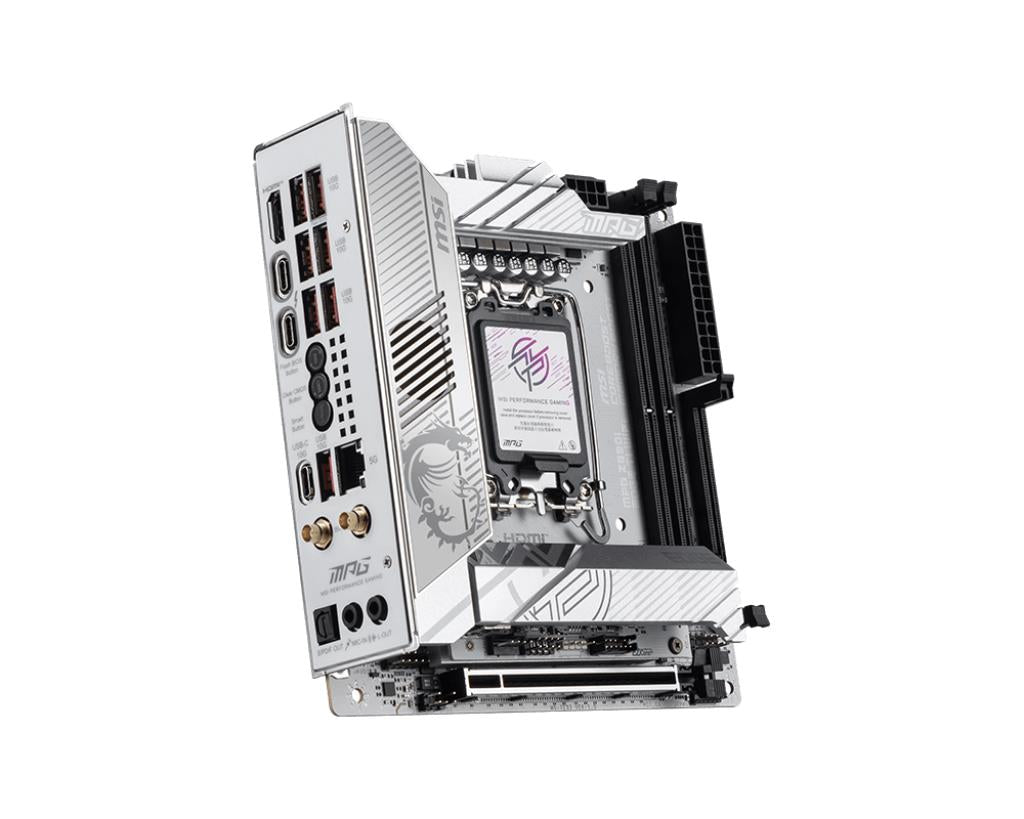

BACK PANEL PORTS

• USB 10Gbps Type-A
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• Thunderbolt 4
• USB 10Gbps Type-C
• USB 10Gbps Type-A
• Optical S/PDIF Out

OPERATING SYSTEM

• Support for Windows® 11 64-bit

BOX CONTENT

• Motherboard
• Quick Installation Guide
• Shout Out Flayer
• Cable Sticker
• EZ WiFi Antenna
• 5-in-1 XPANDER USB Cable
• 5-in-1 XNPANDER
• USB Drive
• SATA Cable
• M.2 Screws
• EZ Conn-Cable V2
• EZ Front Panel Cable

PCB Info

• Mini-ITX 170mmx170mm
