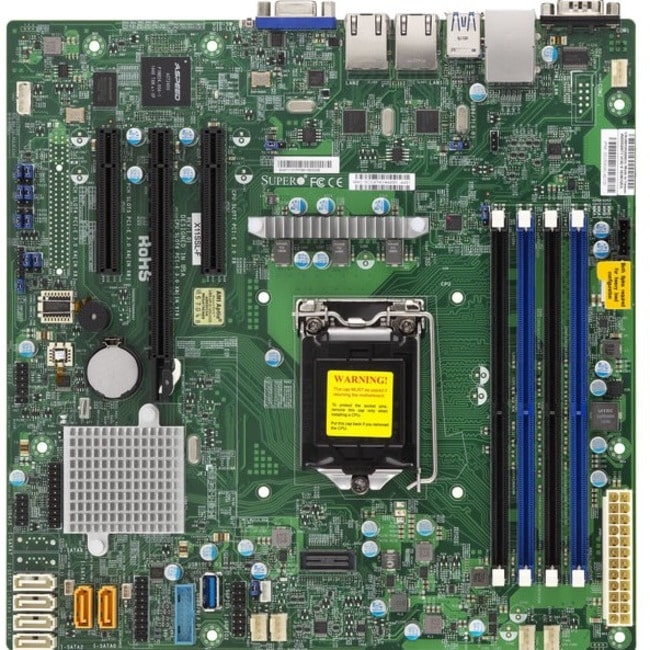

Supermicro MBD-X11SSL-F-B Intel C236 H4 LGA1151 Server Motherboard 4x DDR4 G-ETH

Supermicro X11SSL-F Server Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - Micro ATX
64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

• Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
• DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
• Supported 0 RAID levels provide data reliability and fault tolerance
• Micro ATX form factor for your accessibility convenience and simplicity of usage for Server Motherboard

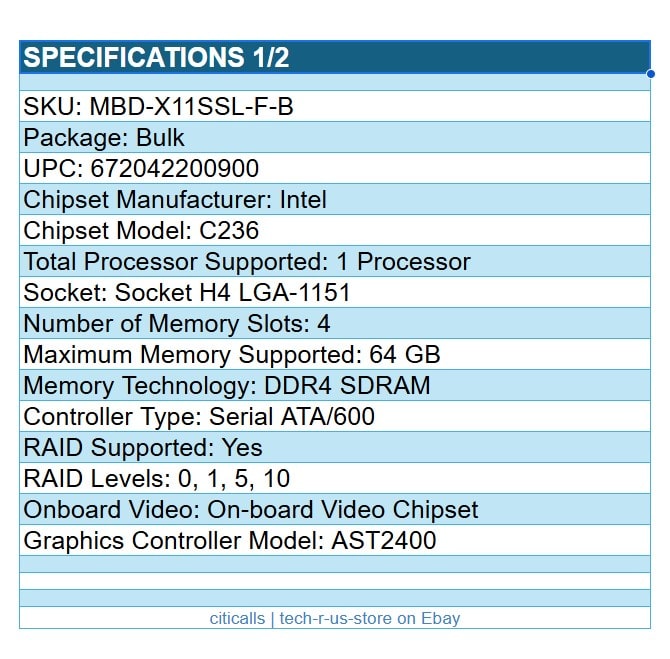

SPECIFICATIONS

• SKU: MBD-X11SSL-F-B
• Package: Bulk
• UPC: 672042200900
• Chipset Manufacturer: Intel
• Chipset Model: C236
• Total Processor Supported: 1 Processor
• Socket: Socket H4 LGA-1151
• Number of Memory Slots: 4
• Maximum Memory Supported: 64 GB
• Memory Technology: DDR4 SDRAM
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels: 0, 1, 5, 10
• Onboard Video: On-board Video Chipset
• Graphics Controller Model: AST2400
• Gigabit Ethernet: Yes
• Total Number of Expansion Slots: 3
• Total Number of PCI Express Slots: 3
• Number of PCI Express x8 Slots: 2
• Number of PCI Express x16 Slots: 1
• Total Number of USB Ports: 4
• Number of USB 3.0 Ports: 2
• VGA: Yes
• Number of SATA Interfaces: 6
• Total Number of Onboard USB Ports: 7
• Number of Onboard USB 3.0 Ports: 3
• Form Factor: Micro ATX
• Width: 9.6"
• Depth: 9.6"

COMPATIBILITY

• 1U Chassis:
  • SC813MFTQC-505CB
  • SC813MFTQ-R400CB
  • SC813MTQ-350CB
  • SC512L-200B
  • SC512F-350B
  • SC811TQ-441B
  • SC113MFAC2-341CB
  • SC113MFAC2-R606CB
  • SC510-203B
  • SC813MFTQC-350CB
• 2U Chassis:
  • SC213LT-600LPB
  • SC825TQ-R720LPB
  • SC823TQ-653LPB
• 3U Chassis:
  • SC833T-653B
• Mid/Mini Tower Chassis:
  • SC732I-500B
  • SC731i-300B
• 4U / Tower Chassis:
  • SC842TQ-665B
  • SC842i-500B
• Supermicro SuperServers
  • SYS-5039D-I
  • SYS-5019S-L
