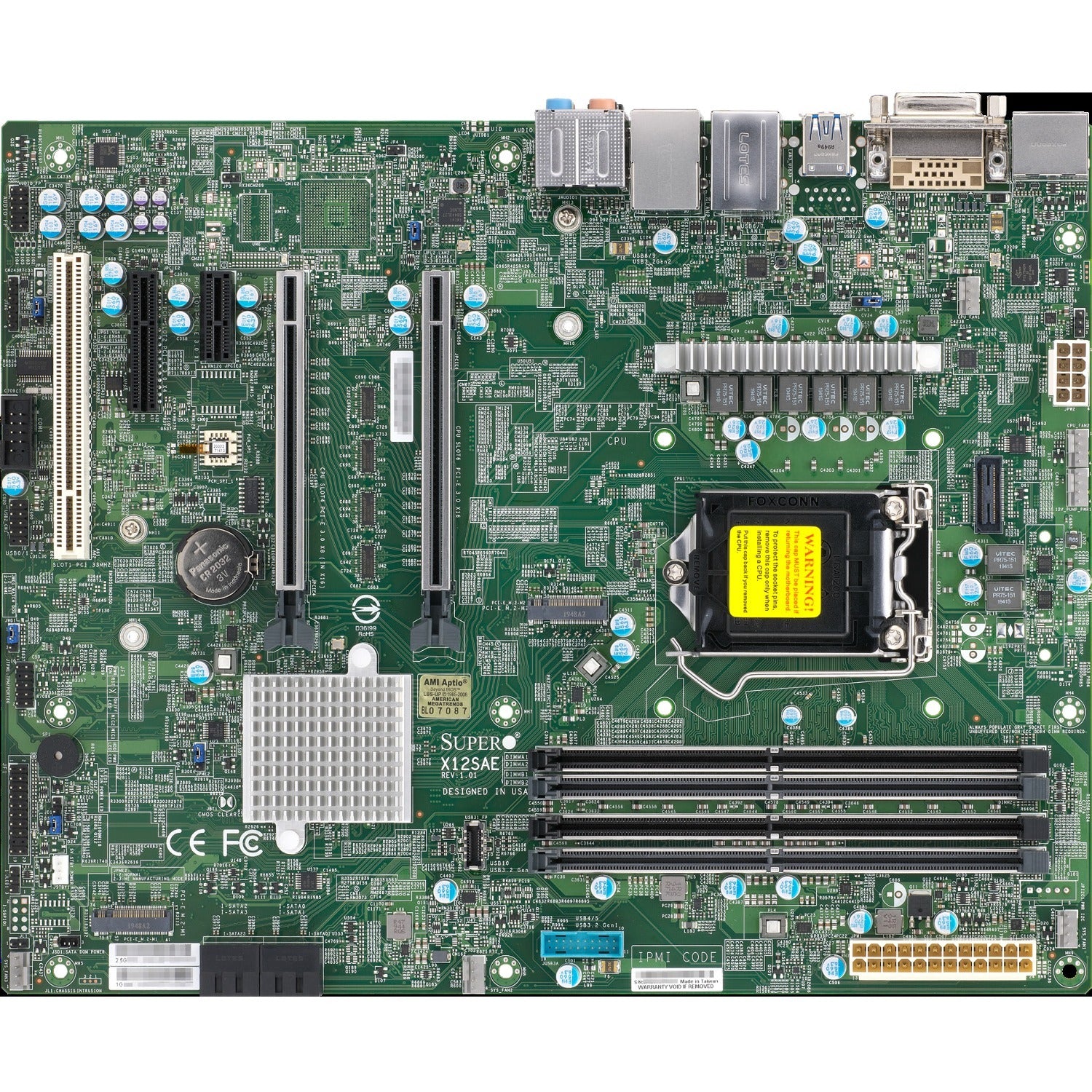

Supermicro MBD-X12SAE-B Motherboard - W480 Intel Xeon LGA1200 DDR4 128GB ATX

Marketing Information

• 1. 10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 ProcessorsSingle Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
• 2. Intel® W480
• 3. 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
• 4. 1 PCI-E 3.0 x4,2 PCI-E 3.0 x16 slots (16/NA or 8/8),1 PCI-E 3.0 x11 - 5V PCI 32bit

           M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1

           M.2 Form Factor: 2280/22110

           M.2 Key: M-Key

• 5. 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port
• 6. Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• 7. Single LAN with Intel® PHY I219LM LAN controllerfor AMT/vProSingle LAN with Intel® Ethernet i225V

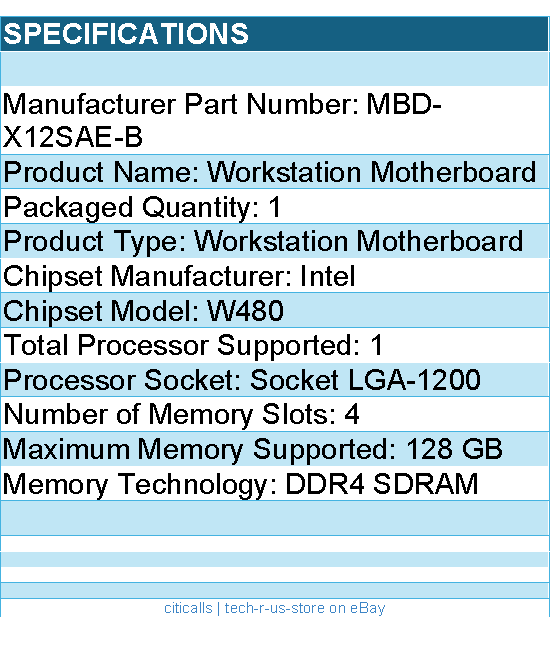

Detail Specifications

Physical Stats

Form Factor: ATX

Processor/Cache

CPU

• 10th Generation Intel CoreTM i9/CoreTM i7/CoreTMi5/CoreTMi3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors
• Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP

Cores / Cache

• Up to 10 cores

System Memory

• Memory Capacity: 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
• Memory Type: Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
• DIMM Sizes: 2GB, 4GB, 8GB, 16GB, 32GB
• Memory Voltage: 1.2V

On-Board Devices

Chipset

• Intel W480

SATA

• Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10

Network Controllers

• Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
• Single LAN with Intel Ethernet i225V

Audio

• ALC 888S HD Audio

Input / Output

LAN

• 1 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 2.5 Gigabit Ethernet LAN port

USB

• 2 USB 2.0 ports (2 via headers)
• 3 USB 3.2 Gen1 ports (1 via header + 2 Type A)
• 5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)

Video Output

• 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port

Serial Port / Header

• 1 COM Port (1 header)

TPM

• 1 TPM Header

Expansion Slots

PCI-E

• 1 PCI-E 3.0 x4,
• 2 PCI-E 3.0 x16 slots (16/NA or 8/8),
• 1 PCI-E 3.0 x1
• 1 - 5V PCI 32bit

M.2

• M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 and 1
• Form Factor: 2280/22110
• Key: M-Key

System BIOS

BIOS Type

• 256Mb SPI Flash with AMI BIOS

BIOS Features

• ACPI 6.0
• Plug and Play (PnP)
• BIOS rescue hot keys
• Riser card auto-detection support
• SMBIOS 3.0 or later

Management

Software

• AMT, SSM, SUM, SuperDoctor 5, vPro, Watchdog

System Management Software

• SuperDoctor 5

Power Configurations

• ACPI Power Management
• Power-on mode for AC power recovery
• Power button override mechanism
• Power supply monitoring
• Wake-on-LAN

PC Health Monitoring

Voltage

• +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, LAN temperature, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature

FAN

• 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
• Single cooling zone

Temperature

• N/A
• LED

BMC/IPMI Heartbeat LED, Power LED, Catastrophic Error LED

Other Features

• 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, WOL

Operating Environment

Operating Temperature Range

• 0oC - 50oC (32oF - 122oF)

Warranty Information

• 1 Year from Supermicro
