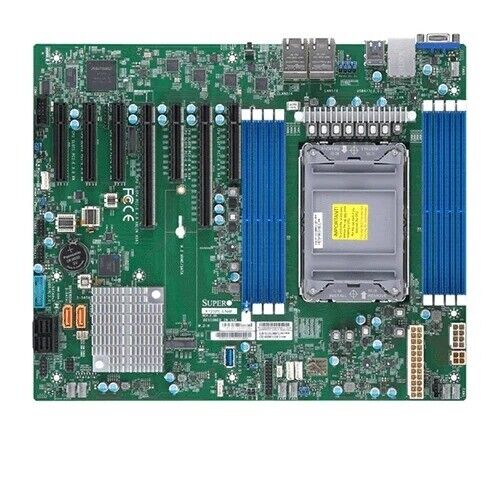

Supermicro MBD-X12SPL-LN4F-B Motherboard C621A S4189 P+ Max2TB DDR4 ATX

Supermicro Motherboards are NOT in retail packaging. These will be in STATIC WRAP and carefully packaged in Brown Box.

Marketing Information

• 1.) 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
• 2.) Intel® C621A
• 3.) Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
• Up to 2TB Intel® Optane™ Persistent Memory, in 8 DIMM slots
• 4.) 2 PCI-E 4.0 x8,
• 1 PCI-E 4.0 x16,
• 1 PCI-E 4.0 x8 (in x16 slot)
• 3 PCI-E 3.0 x8
• 5.) M.2 Interface: 1 SATA/PCI-E 3.0 x4
• M.2 Form Factor: 2280/22110
• M.2 Key: M-Key
• 6.) Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Quad LAN with Intel® i210 Gigabit Ethernet Controller
• Form Factor: ATX

Processor

• CPU
  • 3rd Gen Intel Xeon Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
• Core: Up to 40 cores

System Memory

• Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel OptaneTM Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
• Memory Type: 3200/2933/2666MHz ECC 3DS , DDR4 LRDIMM, RDIMM
• DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
• Memory Voltage: 1.2V
• Error Detection: Corrects single-bit errors

On-Board Devices

• Chipset: Intel C621A
• SATA: Intel C621A controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10
• IPMI: ASPEED AST2600 BMC
• Graphics: ASPEED AST2600 BMC
• Network Controllers: Quad LAN with Intel i210 Gigabit Ethernet Controller

Input / Output

• SATA: 10 SATA3 (6Gbps) port(s)
• LAN: 4 RJ45 Gigabit Ethernet LAN ports
• USB
  • 6 USB 2.0 port(s) (4 via header, 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header, 2 rear, 1 type A)
• Video Output: 1 VGA port(s)
• Serial Port: 1 COM Port(s) (1 header)
• DOM: 2 SATA DOM (Disk on Module) power connector support
• TPM: 1 TPM Header

Expansion Slots

• PCI-E
  • 1 PCI-E 4.0 x16,
  • 1 PCI-E 4.0 x8 (in x16 slot),
  • 2 PCI-E 4.0 x8,
  • 3 PCI-E 3.0 x8
• M.2
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
