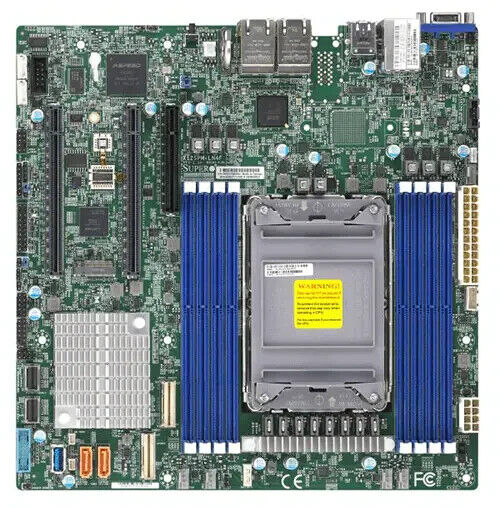

Supermicro MBD-X12SPM-LN4F-O MB mATX LGA4189 8xDDR4 C621A G-ETH VGA SATA DOM TPM

Key Features

• 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
• Intel® C621A
• Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
• Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
• 4x NVMe port PCIe 4.0 x4 via SlimSAS connector
• 1 PCIe 4.0 x8,
• 2 PCIe 4.0 x16,
• 2 PCIe 4.0 x8 SlimSAS connectors
• M.2 Interface: 1 SATA/PCIe 3.0 x4
• M.2 Form Factor: 2280, 22110
• M.2 Key: M-Key
• Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

SPECIFICATIONS

Product SKU: MBD-X12SPM-LN4F (This model may ship in Retail Packaging)

Physical Stats

• Form Factor: microATX
• Dimension: 9.6" x 9.6" (24.38cm x 24.38cm)

Processor

• CPU: 3rd Gen Intel® Xeon® Scalable processors (Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP)
• Core: Up to 40 cores

System Memory

• Memory Capacity
  • 8 DIMM slots
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series
  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
• Memory Type: ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
• DIMM Sizes
  • LRDIMM 3DS: 128GB, 256GB
  • LRDIMM: 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
• Memory Voltage: 1.2V
• Error Detection: Corrects single-bit errors

On-Board Devices

• Chipset: Intel® C621A
• SATA: Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• IPMI: ASPEED AST2600 BMC
• Graphics: 1 ASPEED AST2600 BMC port(s)
• Network Controllers: Quad LAN with 1GbE with Intel® I350-AM4

Input / Output

• SATA: 10 SATA3 (6Gbps) port(s)
• LAN: 4 RJ45 Gigabit Ethernet LAN ports
• USB
• 6 USB 2.0 port(s) (4 via header; 2 rear)
• 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
• Video Output: 1 VGA port(s)
• Serial Port: 1 COM Port(s) (1 header)
• DOM: 2 SATA DOM (Disk on Module) power connector support
• TPM: 1 TPM Header

Expansion Slots

• PCIe
  • 2 PCIe 4.0 x16,
  • 1 PCIe 4.0 x8,
  • 2 PCIe 4.0 x8 SlimSAS connector
• M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key

System BIOS

• BIOS Type: AMI UEFI
• BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later

Management

• Software: SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
• Power Configurations: Power-on mode for AC power recovery, ACPI Power Management

Security

• Hardware: Trusted Platform Module (TPM) 2.0

PC Health Monitoring

• Voltage: VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 5 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V
• LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
• Temperature
  • CPU thermal trip support
  • PECI
• FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • System level control
  • PWM fan speed control
  • 5 fans with tachometer status monitoring
  • Pulse Width Modulated (PWM) fan connectors
• Other Features: WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management

Operating Environment

• Operating Temperature Range: 0°C - 60°C (32°F - 140°F)
• Non-Operating Temperature Range: -20°C - 60°C (-4°F - 140°F)
• Operating Relative Humidity Range: 10% - 85% (non-condensing)
• Non Operating Relative Humidity Range: 10% - 95%
