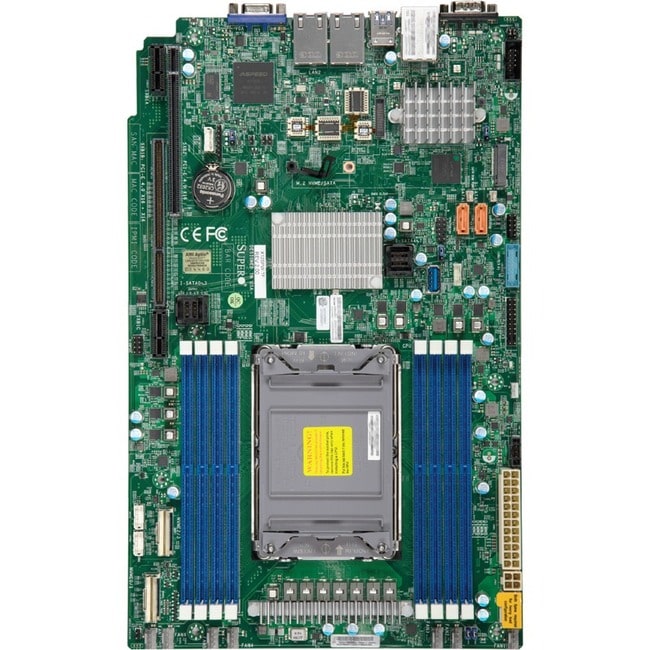

Supermicro MBD-X12SPW-TF-B Intel C621 LGA4189 Workstat 8x DDR4 10x SATA 10G-ETH

Supermicro X12SPW-TF Workstation Motherboard - Intel C621 Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Proprietary Form Factor
Xeon Processor Supported - 2 TB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 8 x Memory Slots - 10 x SATA Interfaces

• Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
• DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
• Supported 0 RAID levels provide data reliability and fault tolerance
• Proprietary Form Factor form factor for your convenience and simplicity of usage
• With 2 USB 2.0 ports, connect devices for a quick data movement

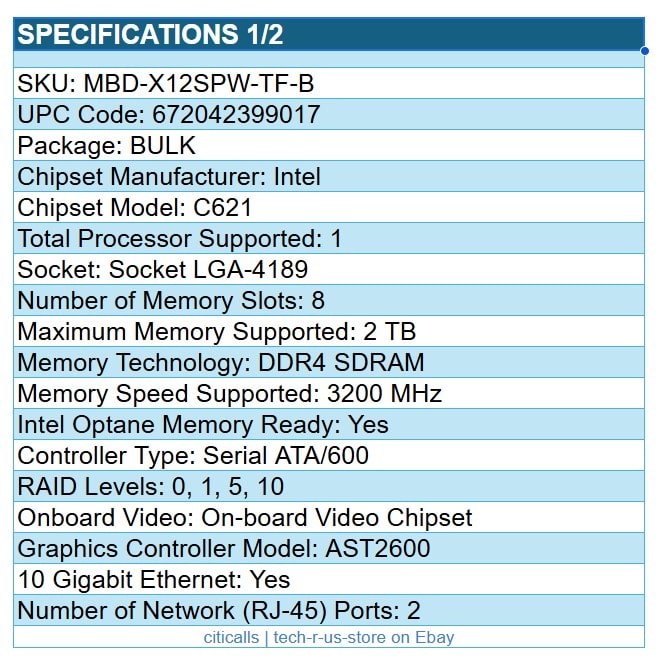

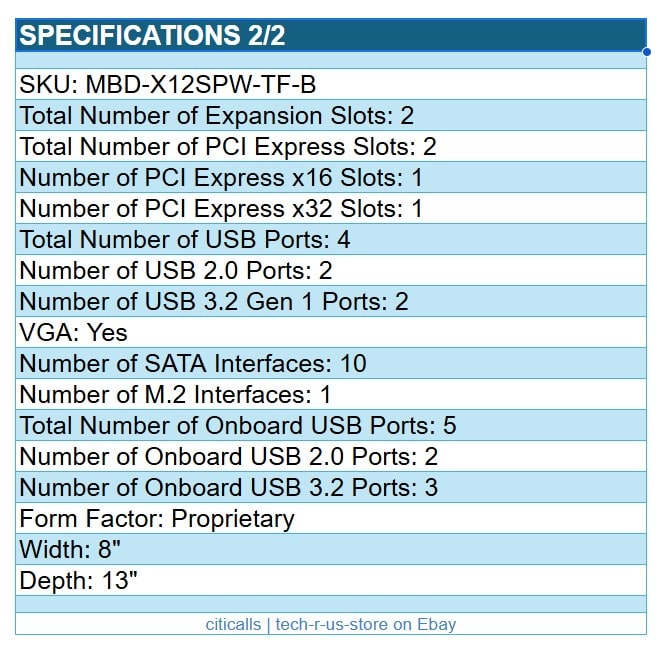

SPECIFICATIONS

• SKU: MBD-X12SPW-TF-B
• UPC Code: 672042399017
• Package: BULK
• Chipset Manufacturer: Intel
• Chipset Model: C621
• Total Processor Supported: 1
• Socket: Socket LGA-4189
• Number of Memory Slots: 8
• Maximum Memory Supported: 2 TB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported: 3200 MHz
• Intel Optane Memory Ready: Yes
• Controller Type: Serial ATA/600
• RAID Levels: 0, 1, 5, 10
• Onboard Video: On-board Video Chipset
• Graphics Controller Model: AST2600
• 10 Gigabit Ethernet: Yes
• Total Number of Expansion Slots: 2
• Total Number of PCI Express Slots: 2
• Number of PCI Express x16 Slots: 1
• Number of PCI Express x32 Slots: 1
• Total Number of USB Ports: 4
• Number of USB 2.0 Ports: 2
• Number of USB 3.2 Gen 1 Ports: 2
• VGA: Yes
• Number of Network (RJ-45) Ports: 2
• Number of SATA Interfaces: 10
• Number of M.2 Interfaces: 1
• Total Number of Onboard USB Ports: 5
• Number of Onboard USB 2.0 Ports: 2
• Number of Onboard USB 3.2 Ports: 3
• Form Factor: Proprietary
• Width: 8"
• Depth: 13"

Compatible Supermicro Chassis/Servers

• SC116AC10-R706WB3
• SC815TQC4-605WB2
• SC815TQC4-R504WB3
• SCLA15TQC-R504W
• SCLA15TQC-563W
• SCLB16AC2-R504W
• SC825BTQC-R609WB
• SYS-110P-WTR
• SYS-510P-WT
• SYS-510P-WTR
• SYS-520P-WTR
• SYS-110P-FDWTR
• SYS-110P-FRDN2T
• SYS-110P-FRN2T
