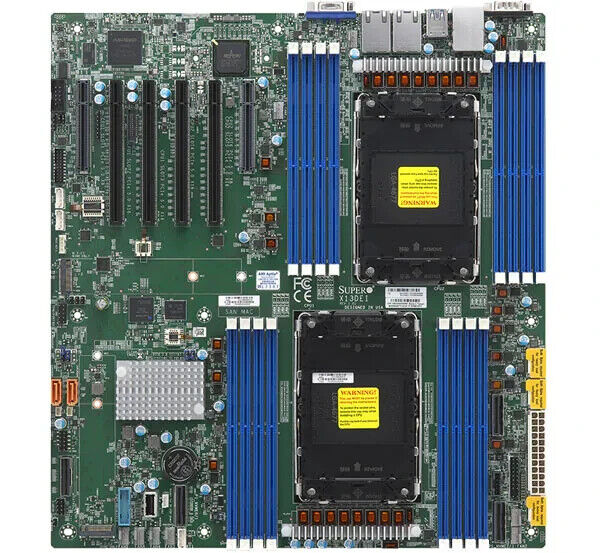

Supermicro MBD-X13DEI-O MB Xeon LGA4677 C741 16x DDR5 ECC SATA M.2 Dual GBe ETH

KEY FEATURES

• 4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E) , CPU TDP supports up to 350W TDP
• Support CXL
• Intel® C741 Chipset
• Up to 4TB 3DS ECC RDIMM, DDR5-4800MT/s(1DPC) in 16 DIMM slots
• 4 PCIe 5.0 x16
• 2 PCIe 5.0 x8
• Broadcom BCM5720 Dual ports 1G LAN
• 6 USB3.0 and 3 USB2.0
• 2 SATA DOM ports
• 2 M.2
• 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors
• 8 SATA3.0 ports

PRODUCT

• SKU: MBD-X13DEI
• Form Factor: EATX

CPU

• 4th Gen Intel Xeon Scalable processors
• Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
• Core: Up to 60 cores

SYSTEM MEMORY

• Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
• Memory Type: 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
• DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
• Memory Voltage: 1.1V
• Error Detection: Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

ON-BOARD DEVICES

• Chipset: Intel C741
• SATA
  • Intel C741 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10
  • Intel C741 controller for 2 SATA3 (6 Gbps) ports, RAID 0,1
• IPMI: ASPEED AST2600 BMC
• Network Controllers
  • Dual LAN with Broadcom BCM5720 1GBase-T
  • Single LAN with Realtek RTL8211F PHY

INPUT / OUTPUT

• SATA
  • 8 SATA3 (6Gbps) port(s)
  • 2 SATA3 (6Gbps) port(s)
• USB
  • 6 USB 3 port(s) (4 rear, 2 via header)
  • 3 USB 2 port(s) (1 Type A, 2 via header)
• Video Output: 1 VGA D-Sub Connector port(s)
• Serial Port: 2 COM Port(s) (1 header, 1 rear)
• TPM: 1 TPM header
• Others: 3 MCIO PCIe 5.0 x8
• PCIe
  • 2 PCIe 5.0 x8
  • 4 PCIe 5.0 x16
• M.2 Interface: 2 PCIe 4.0 x2
• Form Factor: 2280/22110
• Key: M-Key

System BIOS

• BIOS Type: AMI 32MB AMI UEFI
• BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2

MANAGEMENT

• Software: SuperDoctor 5, SPM, SUM, SSM, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, Watchdog, SMCIPMITool, Trusted Platform Module (TPM), CPU thermal trip support for processor protection, Wake-on-LAN

PC HEALTH MONITORING

Voltage: System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)

LED

• UID/Remote UID
• CPU / System Overheat LED

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
• PECI

FAN

• 8x 4-pin fan headers (up to 8 fans)
• Fan speed control
• Overheat LED indication
• 8x fans with tachometer monitoring

Other Features

• UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

OPERATING ENVIRONMENT

• Operating Temperature Range: 10oC - 35oC (50oF - 95oF)
• Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
• Operating Relative Humidity Range: 8% - 90% (non-condensing)
• Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)

Weight: 3 lbs
