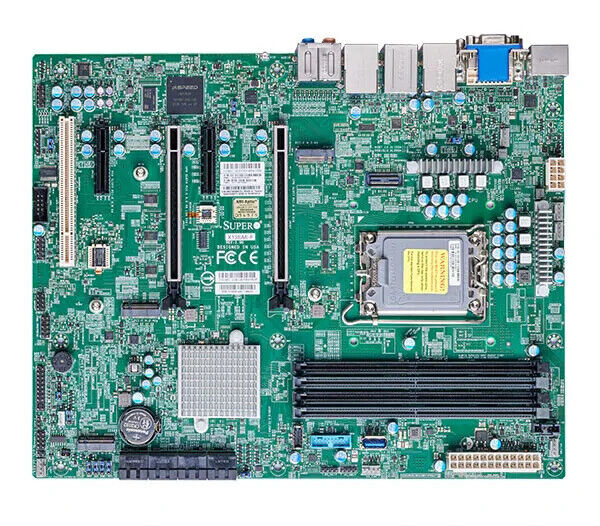

Supermicro MBD-X13SAE-F-B MB ATX LGA1700 4xDDR5 W680 ETH VGA DVI DP HDMI SATA

Key Features

• 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 150W TDP
• Intel® W680
• 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s, 4 DIMM Slots
• 2 PCIe 5.0 x16 slots (16/NA or 8/8), 2 PCIe 3.0 x4 1 5V PCI 32bit
• M.2 Interface: 3 PCIe 4.0 x4 (RAID 0, 1, 5) M.2 Form Factor: 2280 M.2 Key: M-Key
• Single LAN with Intel® Ethernet I225-LM Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro
• 8 SATA3 (6 Gb, RAID 0, 1, 5, 10)
• 1 DP 1.4a, 1 HDMI 2.0b, 1 VGA, 1 DVI-D, 1 Dedicated IPMI LAN Port
• IPMI Supported

SPECIFICATIONS

Product SKU: MBD-X13SAE-F

Physical Stats

• Form Factor: ATX
• Dimension: 12" x 9.6" (30.48cm x 24.38cm)

Processor

• CPU
  • 14th/13th/12th Gen Intel® Core™ i3/i5/i7/i9 Processors
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 150W TDP
• Core: Up to 24 (8+16) cores

System Memory

• Memory Capacity
  • 4 DIMM slots
  • Up to 192GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MT/s
• Memory Type: 4400/4000/3600 MT/s 192GB
• DIMM Sizes
  • 8GB, 16GB, 24GB, 32GB, 48GB
  • UDIMM: 8GB, 16GB, 24GB, 32GB, 48GB
• Memory Voltage: 1.1V

On-Board Devices

• Chipset: Intel® W680
• SATA: Intel® W680 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
• IPMI: ASPEED AST2600 BMC
• Audio: ALC 888S HD Audio
• Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
  • Single LAN with Intel® Ethernet I225-LM
  • Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMI

Input / Output

• LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 2.5 Gigabit Ethernet LAN port
• USB
  • 3 USB 3.2 Gen1x1 port(s) (1 Vertical Type A; 2 via header)
  • 4 USB 2.0 port(s) (2 via header; 2 rear)
  • 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
  • 3 USB 3.2 Gen2x1 port(s) (3 rear type A)
• Video Output: 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
• Serial Port: 1 COM Port(s) (1 header)
• TPM: 1 TPM Header

Expansion Slots

• PCIe
  • 2 PCIe 5.0 x16 slots (16/NA or 8/8),
  • 2 PCIe 3.0 x4
• M.2
  • M.2 Interface: 3 PCIe 4.0 x4, RAID 0, 1, 5
  • Form Factor: 2280
  • Key: M-Key
• Not: 1 5V PCI 32bit

System BIOS

• BIOS Type: 32MB SPI Flash with AMI BIOS
• BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • Riser card auto-detection support
  • SMBIOS 3.0 or later

Management

• Software: SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
• Power Configurations: Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN

Security

• Hardware: Trusted Platform Module (TPM) 2.0

PC Health Monitoring

• Voltage: VBAT, System temperature, CPU temperature, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +1.8V PCH
• LED
  • Power LED
  • Catastrophic Error LED
• FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Overheat LED indication
• Other Features: CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector

Operating Environment

• Operating Temperature Range: 0°C - 50°C (32°F - 122°F)
• Non-Operating Temperature Range: -20°C - 60°C (-4°F - 140°F)
