Supermicro MBD-X13SAQ-B Intel Q670E Single Socket V0 mATX 4xDDR5 8xSATA 2xG-Eth

Supermicro MBD-X13SAQ-B 14th/13th/12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket V0 Intel Q670E DDR5 SATA3 M.2 USB 3.2 Micro-ATX Motherboard

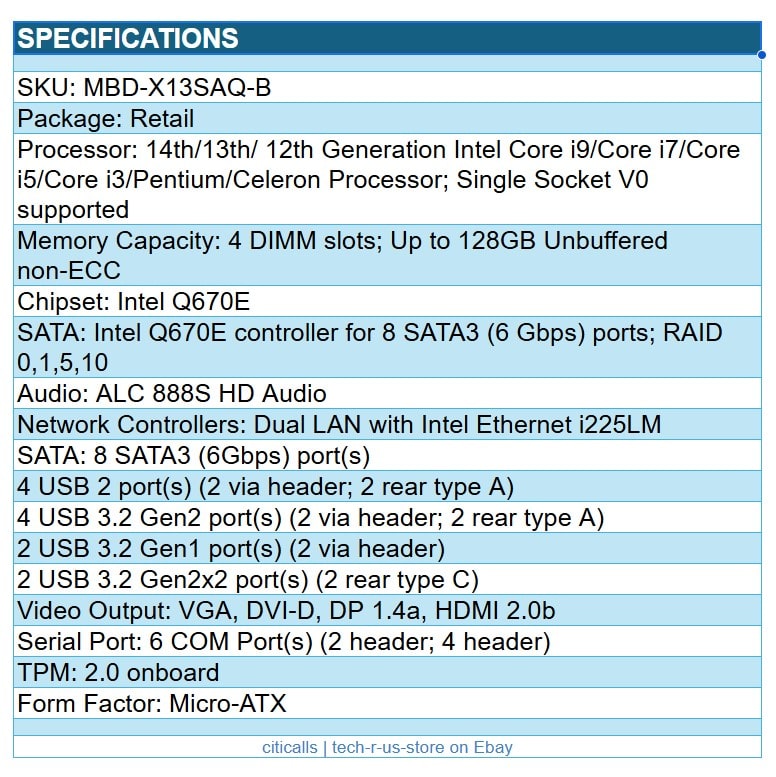

SPECIFICATIONS

• SKU: MBD-X13SAQ-B
• Package: RETAIL
• Processor
  • CPU: 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor; Single Socket V0 supported
  • Core: Up to 24 cores
• System Memory
  • Memory Capacity: 4 DIMM slots; Up to 128GB Unbuffered non-ECC UDIMM, DDR5-4400MT/s
  • Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
  • Memory Type: 4400/4000/3600 MT/s
  • DIMM Sizes: 4GB, 8GB, 16GB, 32GB
  • Memory Voltage: 1.1V
• On-Board Devices
  • Chipset: Intel Q670E
  • SATA: Intel Q670E controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Audio: ALC 888S HD Audio
  • Network Controllers: Dual LAN with Intel Ethernet i225LM
• Input / Output
  • SATA: 8 SATA3 (6Gbps) port(s)
  • USB:
  • 4 USB 2 port(s) (2 via header; 2 rear type A)
  • 4 USB 3.2 Gen2 port(s) (2 via header; 2 rear type A)
  • 2 USB 3.2 Gen1 port(s) (2 via header)
  • 2 USB 3.2 Gen2x2 port(s) (2 rear type C)
  • Video Output: 1 VGA port(s), 1 DVI - D port(s), 1 DP 1.4a port(s), 1 HDMI 2.0b port(s)
  • Serial Port: 6 COM Port(s) (2 header; 4 header)
  • TPM: TPM TPM 2.0 onboard
• Expansion Slots
  • PCIe:
  • 1 PCIe 5.0 x16
  • 1 PCIe 4.0 x4 (in x8 slot)
  • 1 PCIe 3.0 x4
  • 1 PCIe 3.0 x2 (in x4 slot)
  • 1 PCIe 4.0 x4 SlimSAS
• System BIOS
  • BIOS Type: AMI UEFI
  • BIOS Features:
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
• Management
  • Software: Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New!
  • System Management Software: Wake-on-LAN, Watchdog
  • Power Configurations: ACPI Power Management, ATX Power connector
• Security: Hardware: Trusted Platform Module (TPM) 2.0
• Physical Stats
  • Form Factor: Micro-ATX
  • Dimension: 9.6" x 9.6" (24.38cm x 24.38cm)
