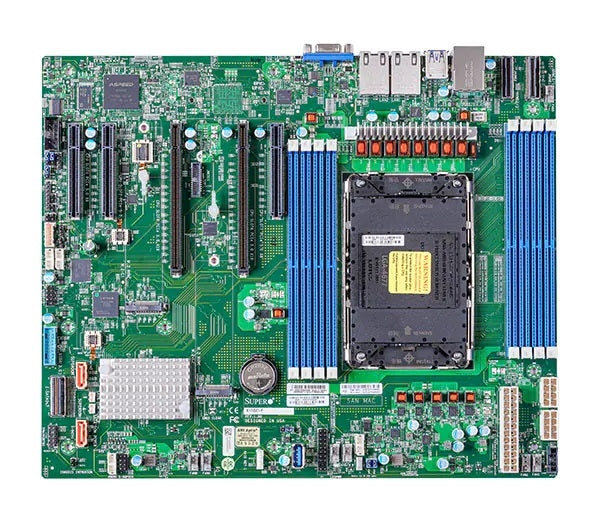

Supermicro MBD-X13SEI-F-B Motherboard Intel Xeon S4677 C741 Max.2TB DDR5

Vendor: Supermicro
SKU: 271277
MPN: MBD-X13SEI-F-B

Marketing Information
Key Features
4th Gen Intel Xeon Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Intel C741 Chipset
Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots
2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs
3 PCIe 5.0 x8,
2 PCIe 5.0 x16,
M.2 Interface: 2 PCIe 5.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
Dual LAN with 1GbE with Intel I210
4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)
Intel C741 controller for 10 SATA3 (6 Gbps) ports

Detail Specifications
Physical Stats
Form Factor
EATX
Processor
CPU
4th Gen Intel Xeon Scalable processors
Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core
Up to 60 cores
System Memory
Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C741
SATA
Intel C741 controller for 10 SATA3 (6 Gbps) ports
IPMI
ASPEED AST2600 BMC
Graphics
1 Aspeed AST2600 BMC port(s)
Network Controllers
Dual LAN with 1GbE with Intel I210
Input / Output
SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2 port(s) (2 rear)
4 USB 3.2 Gen1 port(s) (2 rear 1 type A 1 via header)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header
Expansion Slots
PCIe
2 PCIe 5.0 x16,
3 PCIe 5.0 x8,
2 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 3.5 or later
UEFI 2.8
Management
Software
SuperDoctor 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM), Chassis Intrusion Detection
PC Health Monitoring
Voltage
VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
UID/Remote UID
CPU / System Overheat LED
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
FAN
7x 4-pin fan headers (up to 7 fans)
Fan speed control
Overheat LED indication
7 fans with tachometer status monitoring
Other Features
WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Warranty Information
1 Year - Direct from the Manufacturer
