Supermicro MBD-X13SEM-TF-O Intel Xeon LGA-4677 C741 DDR5 M.2 NVMe PCIe microATX

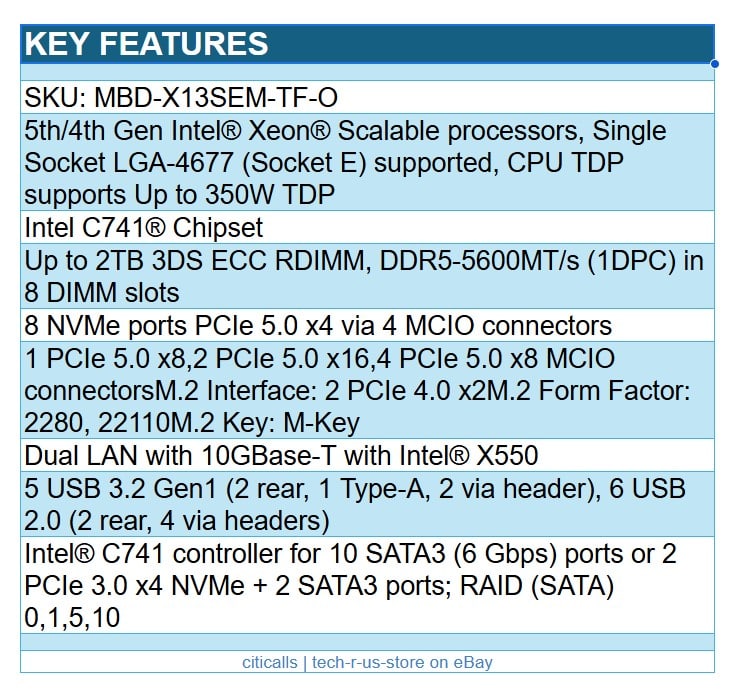

KEY FEATURES

• 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
• Intel C741® Chipset
• Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
• 8 NVMe ports PCIe 5.0 x4 via 4 MCIO connectors
• 1 PCIe 5.0 x8,2 PCIe 5.0 x16,4 PCIe 5.0 x8 MCIO connectorsM.2 Interface: 2 PCIe 4.0 x2M.2 Form Factor: 2280, 22110M.2 Key: M-Key
• Dual LAN with 10GBase-T with Intel® X550
• 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
• Intel® C741 controller for 10 SATA3 (6 Gbps) ports or 2 PCIe 3.0 x4 NVMe + 2 SATA3 ports; RAID (SATA) 0,1,5,10

SPECIFICATIONS

• Product SKU: MBD-X13SEM-TF
• Form Factor : Micro-ATX
• Dimension: 9.6" x 9.6" (24.38cm x 24.38cm)
• CPU: Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
• Core Count: Up to 64C (Supports up to 350W TDP CPUs)
• Memory: Slot Count: 8 DIMM Slots (Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM)
• Memory Voltage: 1.1V
• Error Detection:
• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Chipset: Intel® C741
• SATA: 10 SATA (6Gbps) via Intel® C741; RAID 0/1/5/10 support
• IPMI: ASPEED AST2600 BMC
• Network Controller: Dual LAN with 10GBase-T with Intel® X550
• LAN
  • 2 RJ45 10 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
• USB
  • 2 USB 2.0 port(s) (rear)
  • 4 USB 2.0 port(s) (header)
  • 1 USB 3.2 Gen1 Type-A port(s)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 2 USB 3.2 Gen1 port(s) (Rear)
• Video
  • 1 VGA D-Sub Connector port(s)
  • 1 Aspeed AST2600 BMC port(s)
• Serial: 1 COM port(s) (rear)
• DOM: 2 SATA DOM (Disk on Module) port(s) with power connector support
• TPM: 1 TPM 2.0 Header
• PCI-Express (PCIe) Configuration
  • 2 PCIe 5.0 x16 slots
  • 1 PCIe 5.0 x8 slot
  • 4 PCIe 5.0 x8 via MCIO Connector slots
• M2: 2 M.2 PCIe 4.0 x2 slots (M-key 2280/22110)
• BIOS Type: AMI UEFI
• BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8 or above
• Hardware: Trusted Platform Module (TPM) 2.0
• Voltage: +12V,+3.3V,+5V,+5V standby,5 -fan status,Chassis intrusion header,Chipset voltage,Monitors CPU voltages,Supports system management utility,System level control,VBAT
• LED
  • CPU/system overheat LED
  • UID/remote UID LED
• Temperature
  • CPU thermal trip support
  • Monitoring for CPU and chassis environment
  • PECI
  • Thermal monitor 2 (TM2) support
• FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • 5 fans with tachometer status monitoring
  • Fan speed control
  • Overheat LED indication
• Other Features
  • ACPI power management
  • Chassis intrusion detection
  • Control of power-on for recovery from AC power loss
  • M.2 NGFF connector
  • Node manager support
  • UID
  • WOL
