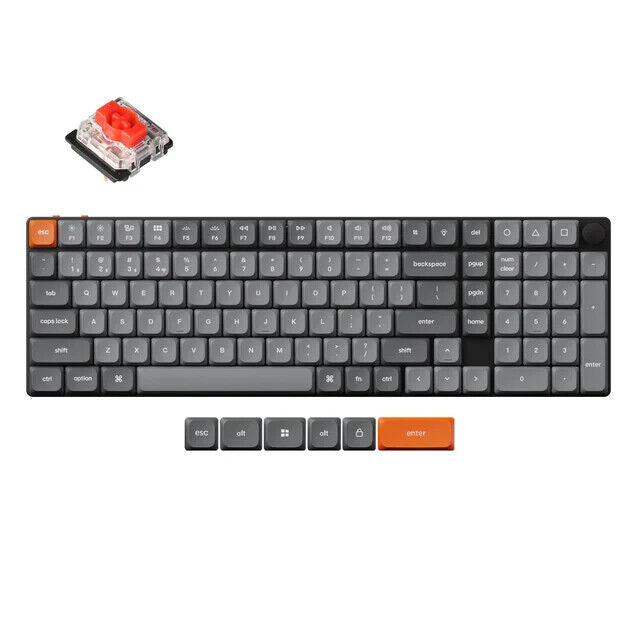

Keychron KB K17M-H1 K17 Max QMK WL Hot Swap RGB BackLight Gateron Mech Keyboard

Keychron K17 Max QMK Wireless Custom Mechanical Keyboard

• Number of Keys: 104 (75%)
• Switches: Gateron low-profile mechanical
• Switch Face: North-facing
• Number of Multimedia Keys: 12
• Frame Material: ABS+Aluminum frame
• Keycap Material: Low-profile double-shot PBT
• Layout: ANSI
• Polling Rate (2.4GHz and Wired Mode): 1000Hz
• Polling Rate (BT Mode): 90Hz
• N-Key Rollover (NKRO): Yes for both wireless and wired modes

*The K17 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

CONNECTIVITY AND POWER

• Backlit: 22 types of RGB backlight options plus endless possibilities
• Battery: 2000 mAh rechargeable li-polymer battery
• Wireless Working Time (Backlit off): Around 95 hours (Lab test result may vary by actual use)
• Wireless Working Time (RGB): Around 50 hours (Lowest brightness)
• Connection: 2.4 GHz / Bluetooth / Type-C wired
• Bluetooth version: 5.1
• Bluetooth Device Name: Keychron K17 Max
• Compatible System: macOS / Windows / Linux

PHYSICAL UNIT

• Dimension: 387 x 119 mm (15.24 x 4.69")
• Weight: 750 g / 1.65 lbs
• Height without keycap (front): 10.26 mm (0.40")
• Height without keycap (rear): 15.36 mm (0.60")
• Height incl. keycap (front): 20.32 mm (0.80")
• Height incl. keycap (rear): 26.53 mm (1.00")
• Typing Angle: 2º, 4º, and 6º
• MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
• Operating Environment: -10 to 50℃
