Keychron KB V6M-D3 V6 Max QMK VIA Wireless Cus Gateron Jupiter BRN Mech Keyboard

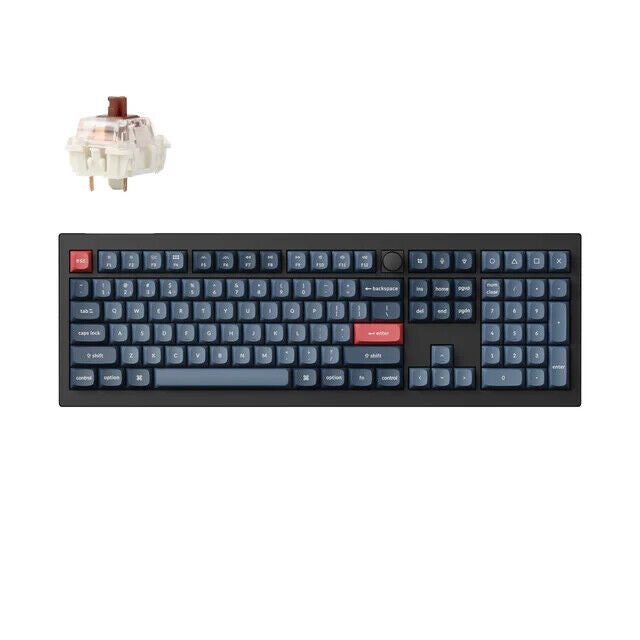

Keychron V6 Max QMK/VIA Wireless Custom Mechanical Keyboard

The fully assembled version includes:

• ABS plastic housing
• The keyboard PCB, screw-in stabs, and the PC plate
• Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
• Gateron Jupiter switches

SPECIFICATIONS

• Width: 149 mm
• Length: 447.9 mm
• Front Height: 23.6 mm  (without keycaps)
• Back Height: 32.5 mm (without keycaps)
• Feet Height: 2 mm
• Angle: 3.5° / 8° / 10°
• Weight: 1110 ± 10g (Fully Assembled Version)
• Body Material: ABS Plastic
• Plate Material: PC
• Polling Rate: 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
• Mount Style: Gasket Mount Design
• Bluetooth Device Name: Keychron V6 Max
• Battery: 4000 mAh Rechargeable li-polymer battery
• Wireless Working Time (Backlit off) : Up to 225 hours (Lab test result may vary by actual use)
• Wireless Working Time (RGB) : Up to 100 hours (Lowest brightness)
• Charging Time : Around 5 hours
• Bluetooth Version : 5.1
• Compatible System : Windows/macOS/Linux
• N-Key Rollover (NKRO) : Yes for both wireless and wired modes
• Hot-swappable : Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
• Keycaps (Fully Assembled Version): Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
• MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
• Switches: Gateron Jupiter (Fully Assembled Version)
• Backlight: South-facing RGB LED
• Stabilizer: Screw-in PCB stabs
• Charging Port: USB Type-C
• Cable: Type-C cable + Type-A to Type-C adapter
• Operating Environment: -10℃ to 50℃
