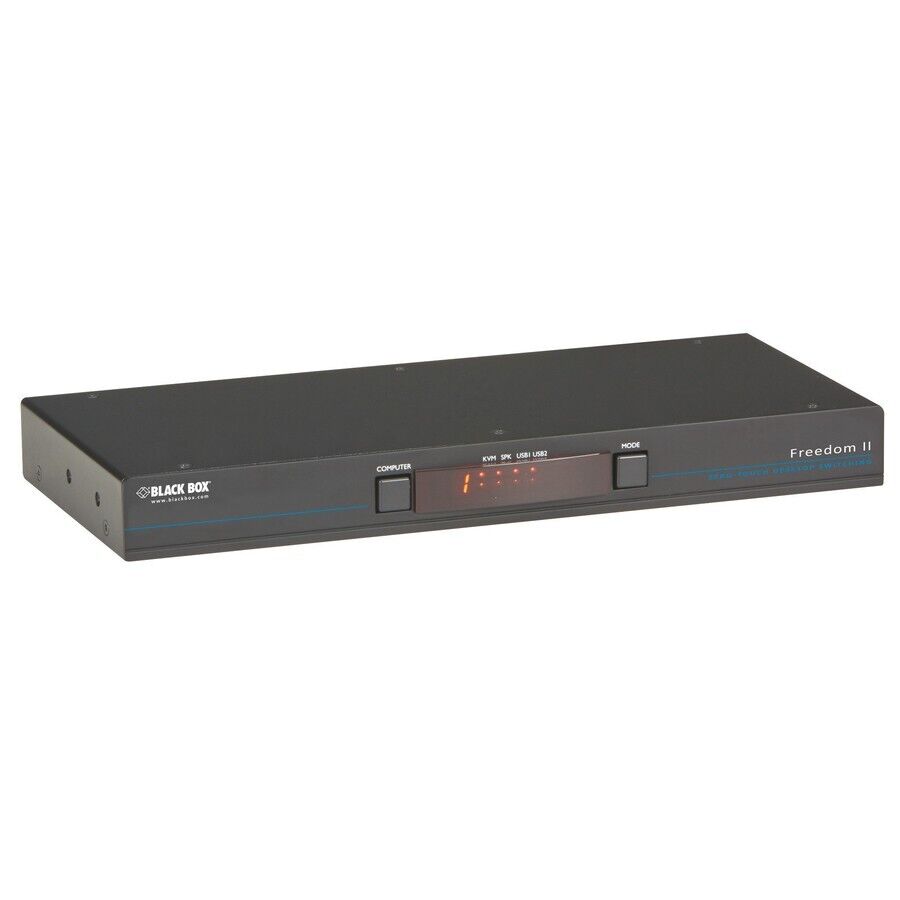

Black Box KV0004A-R2 4 Port KVM Switch w Glide Mouse 2x RJ45 2x PS2 9x USB

General Information

• Manufacturer: Black Box Corporation
• Manufacturer Part Number: KV0004A-R2
• Brand Name: Black Box
• Product Line: Freedom II
• Product Model: KV0004A-R2
• Product Name: KM Switch with Glide & Switch Mouse Switching
• Product Type: KM Switchbox

Marketing Information:

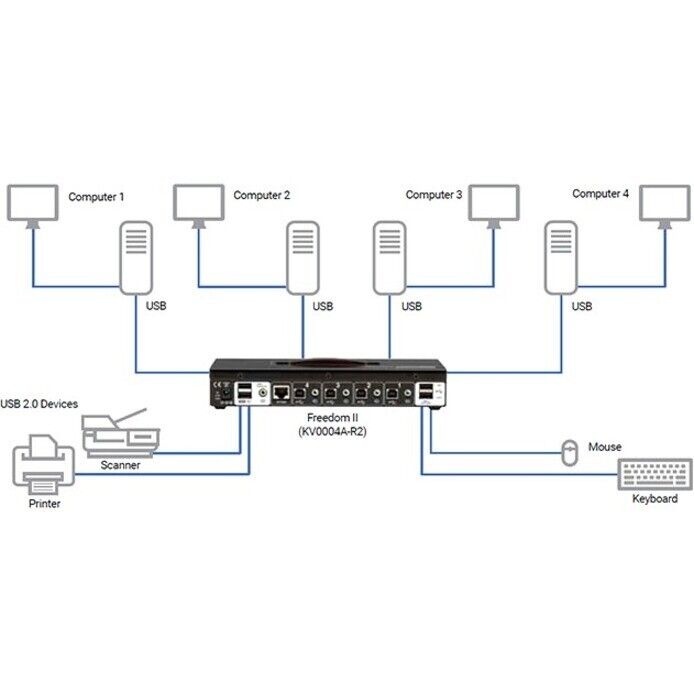

The Freedom II KM Switch with Glide; Switch enables a single user to easily access information and control operations across the computer systems and monitors, saving time, money, and space. The Freedom II works like an extended desktop switch on a single computer. Once you configure your screen layout for the attached PCs with up to four external displays, switching ports is as simple as moving your mouse cursor over the screens' X and Y borders.

Freedom is ideal in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices.

Additionally, the Freedom II KVM Switch integrates with the Black Box Agility IP-based KVM system. This Freedom II KM Switch can interface with Agility receivers, and then switch the Agility targets using just one keyboard and mouse.

The Freedom II KM Switch is ideal for command and control applications such as in:

• Broadcasting
• Public safety
• Industrial
• Defense
• Transportation

Technical Information

• Number of Computers Supported: 4
• Number of Local Users Supported: 1

Interfaces/Ports

• Network (RJ-45): Yes
• PS/2 Port: Yes
• USB: Yes
• Number of Network (RJ-45) Ports: 2
• Number of PS/2 Ports: 2
• Number of USB Ports: 9

Physical Characteristics

• Height: 1.2"
• Width: 11.4"
• Depth: 5"
• Weight (Approximate): 2 lb

Package Contents:

• KM Switch with Glide & Switch Mouse Switching
• Power Adapter and Power Cord
• Flash Upgrade Adapter
• 4 x Self-adhesive Feet

Operating Systems Compatible:

• Windows 10
• Windows 11
• Mac OS

Environmentally Friendly: Yes

Country of Origin: United Kingdom

Limited Warranty: 2 Year from BlackBox
