SIIG CE-KV0D11-S1 4x1 DisplayPort 4K KVM USB 3.0 Switch w Remote Control 4K 60Hz

Overview

4x1 DisplayPort KVM Switch, allows you to control 4 DisplayPort computers using one keyboard and mouse, DP or HDMI 4K@60Hz, USB 3.2 Gen1 ports, Microphone input, and Stereo audio output, Switch button, Hotkeys, Remote control

Features

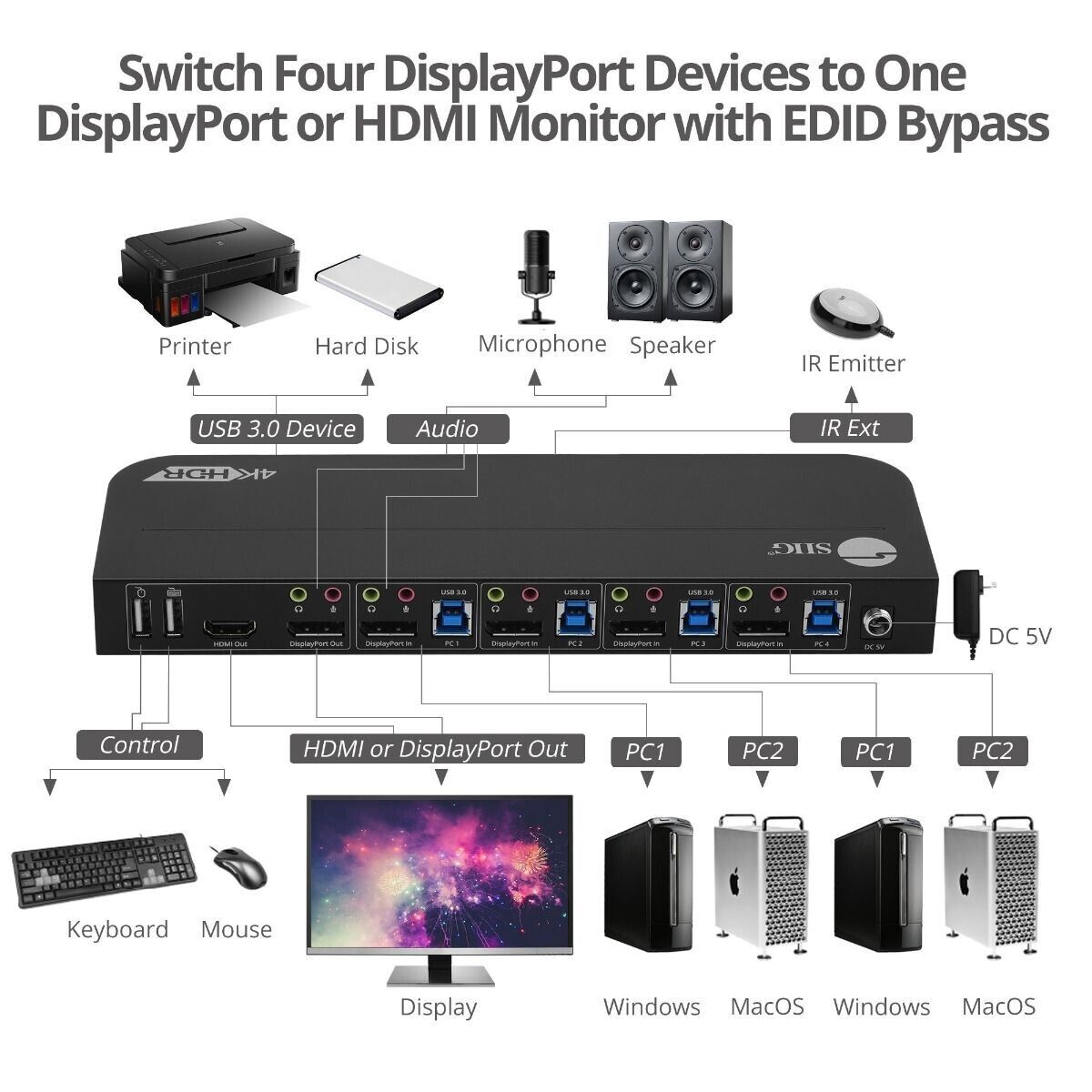

Easily control 4 DisplayPort computers and switch a DisplayPort or HDMI display/monitor with one set of keyboard & mouse improve your work efficiently

SPECIFICATIONS

Software

• OS Compatibility: Windows® 11, mac OS® 12.x or new

Video

• DisplayPort 1.4

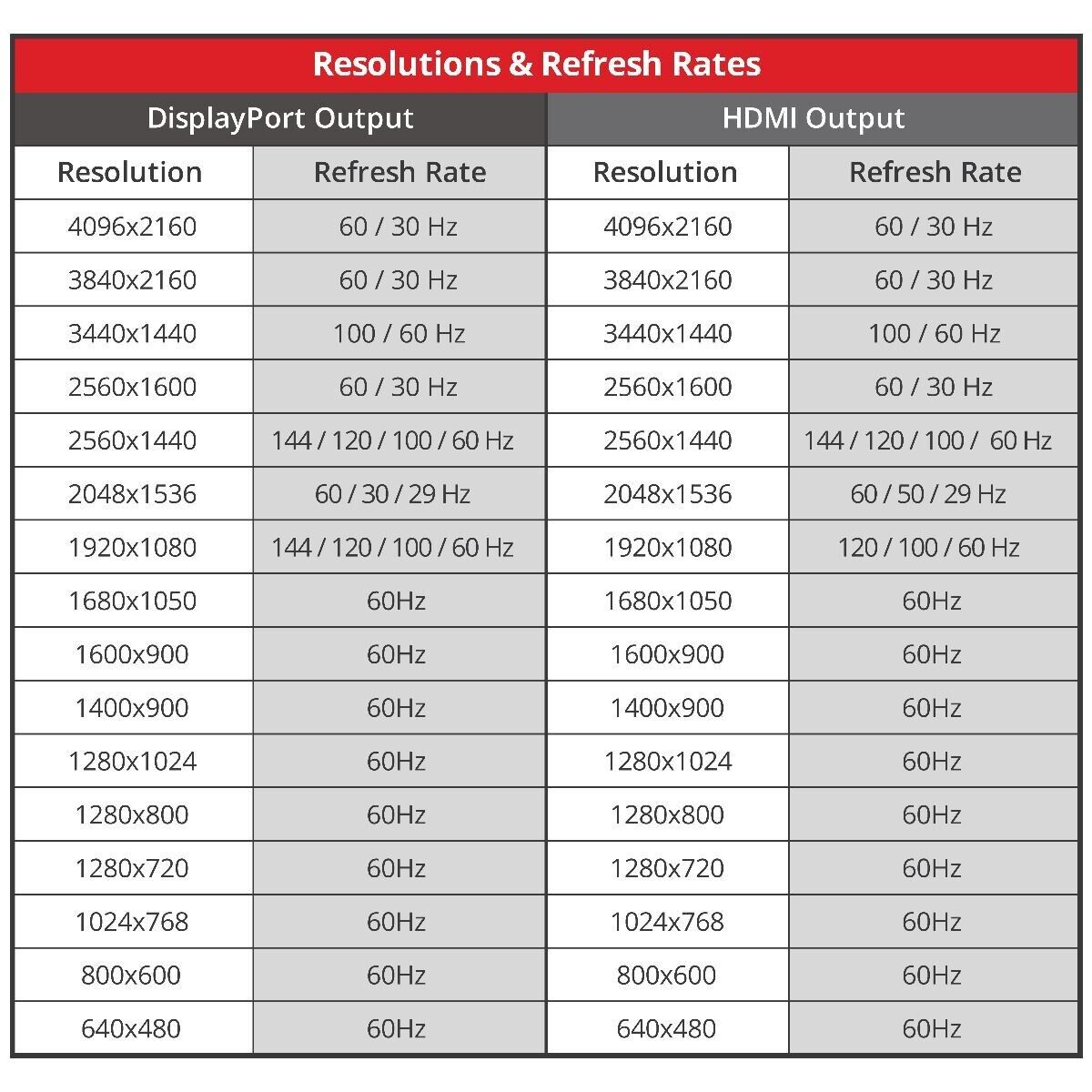

  • Resolution:
    • 4096x2160 / 3840x2160 @60 / 30Hz
    • 3440x1440 @100 / 60Hz
    • 2560x1600 @60 / 30Hz
    • 2560x1440 / 1920x1080 @144 / 120 / 100 / 60Hz
    • 2048x1536 @60 / 30 / 29Hz
    • 1680x1050 / 1600x900 / 1400x900 / 1280x1024 / 1280x800 / 1280x720 / 1024x768 / 800x600 / 640x480 @ 60Hz
• HDMI:
• HDCP 2.2, HDR
• Video bandwidth: 18Gbps
• Resolution:
  • 4096x2160 / 3840x2160 @60 / 30Hz
  • 3440x1440 @100 / 60Hz
  • 2560x1600 @60 / 30Hz
  • 2560x1440 @144 / 120 / 100 / 60Hz
  • 2048x1536 @60 / 50 / 29Hz
  • 1920x1080 @120 / 100 / 60Hz
  • 1680x1050 / 1600x900 / 1400x900 / 1280x1024 / 1280x800 / 1280x720 / 1024x768 / 800x600 / 640x480 @ 60Hz

USB data transfer rate

• USB 3.2 Gen 1: 2x Type-A, up to 5Gbps, 5V/900mA
• USB HID: 2x Type-A, for Keyboard hot key & Mouse traversal switch

Note: Direct to plug-in the mouse the front panel to disable the traversal switch feature

Audio

• 7.1 channel surround sound from DisplayPort/HDMI port
• PCM 2.1 channel stereo digital audio for 3.5mm audio jack

Power Adapter

• Input: AC 100-240V / 50-60Hz
• Output: DC 5V/3A
• ETL P/N: 4006448

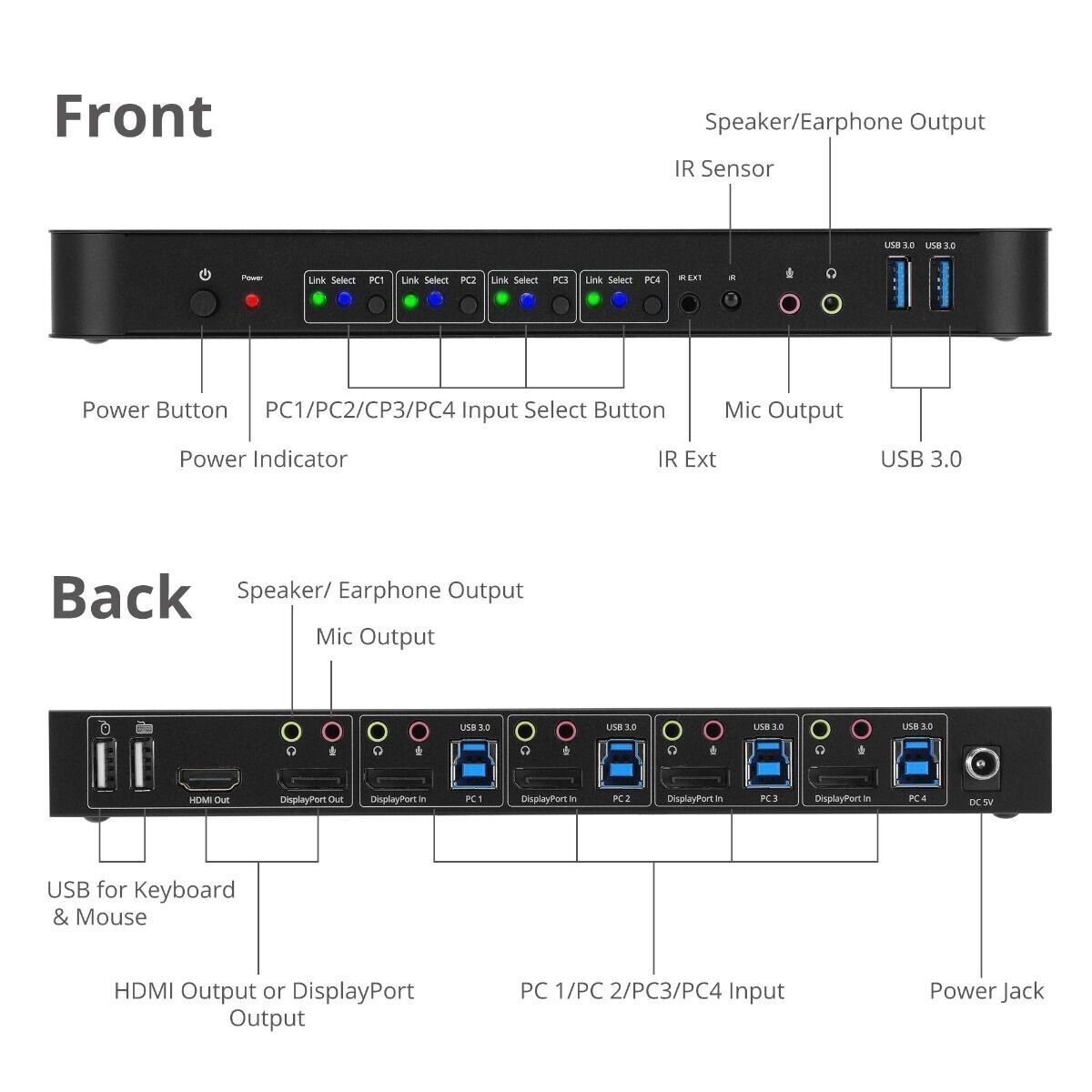

Input:

• 4x 20pin, DisplayPort, Female
• 4x 9-pin, USB 3.2 Gen 1 Type-B, Female
• 6x 3.5mm phone jacks, for microphone, Female
• 2x 4-pin, USB 2.0 Type-A, for Keyboard & Mouse, Female

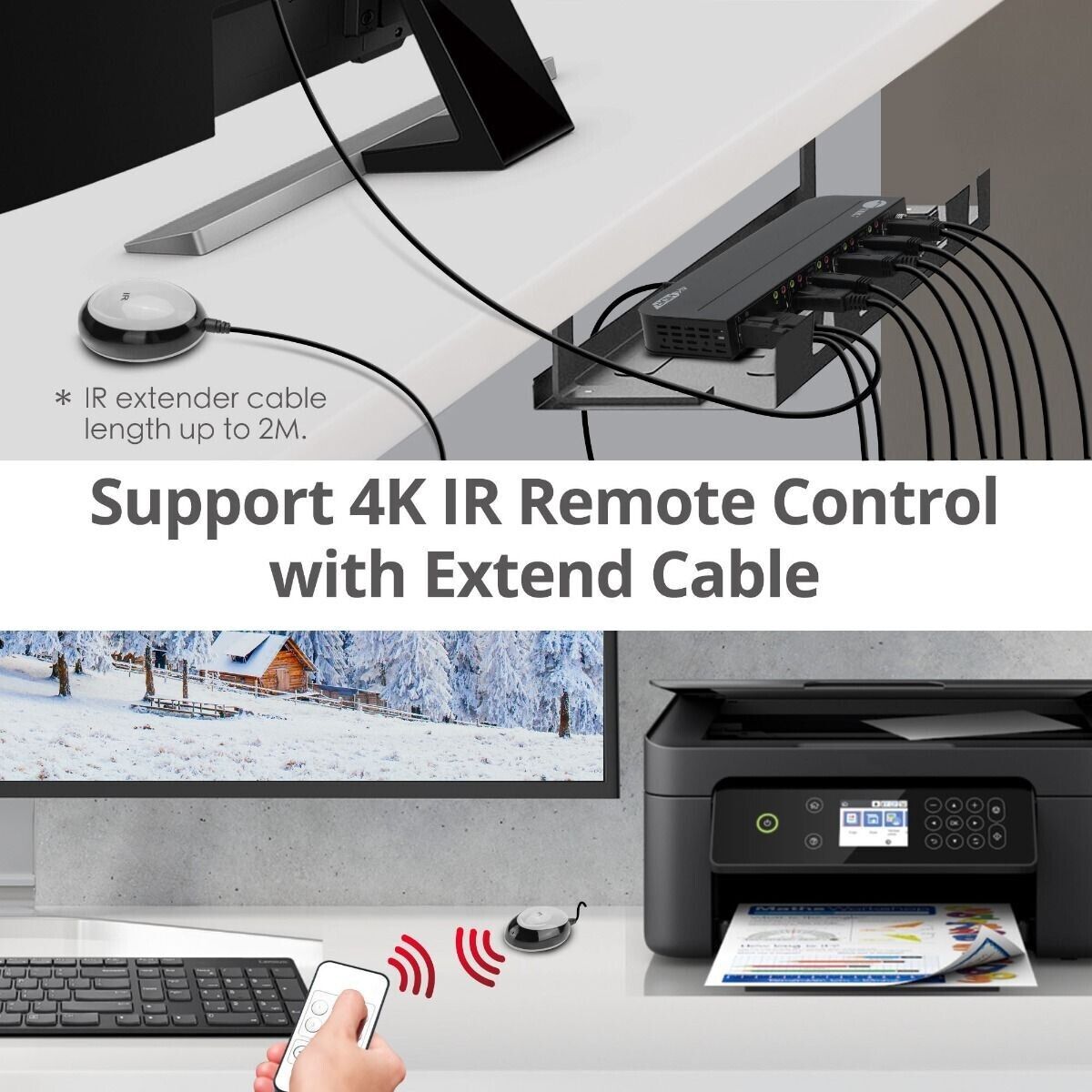

• 1x 3.5mm Infrared jack, IR extender
• 1x IR sensor
• 4x Switch buttons, for PC1/PC2/PC3/PC4 switching
• 1x Power button, on/off
• 1x DC power jack, 5V/3A

Output:

• 1x 20-pin, DisplayPort, Female
• 1x 19-pin, HDMI, Female
• 2x 9-pin, USB 3.2 Gen 1 Type-A, for USB devices, Female
• 6x 3.5mm phone jacks, for stereo audio, Female

Environmental conditions

• Operating temperature: 32 to 114 degrees F
• Storage temperature: 14 to 178 degrees F
• Relative humidity:: 5% to 90% RH (non-condensing)

Product Info

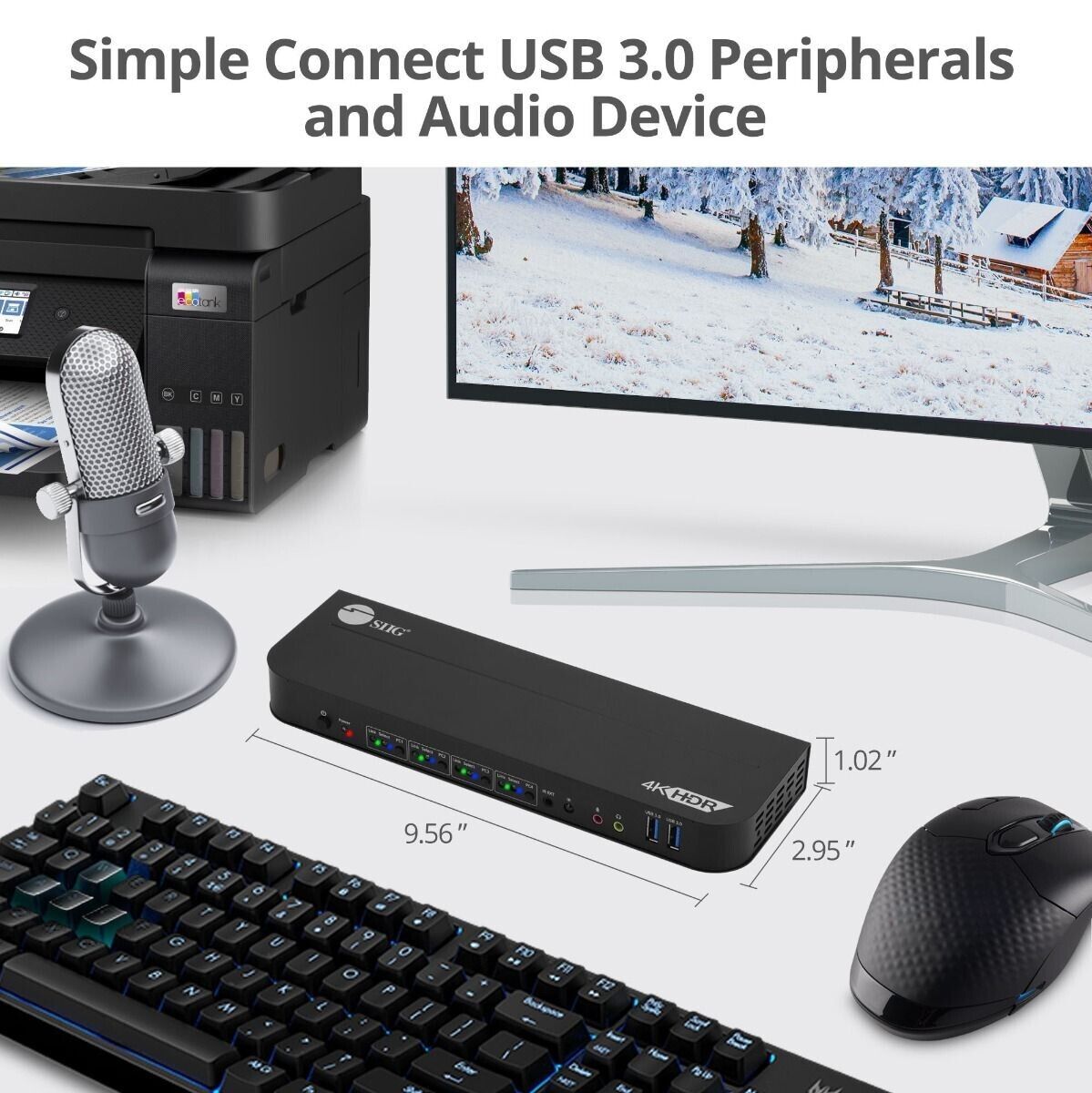

• Dimensions: 9.53” (L) x 1.02” (H) x 2.76” (W)
• Weight: 1.11 lbs
• Color: Black
• Housing material: Metal

Unit Package

1. Dimensions: 11.02” (L) x 2.56” (H) x 7.09” (W)
2. Weight: 2.38 lbs

Certifications/Standards

• FCC, CE, RoHS, REACH
• Warranty: 2 years from SIIG
• Country of origin: China

System Requirements

• PC or laptop with available DisplayPort, USB 3.2 Gen 1 Type-A, and audio/mic ports
• Windows® 11 / 10
• Mac OS® 12.x to 10.13

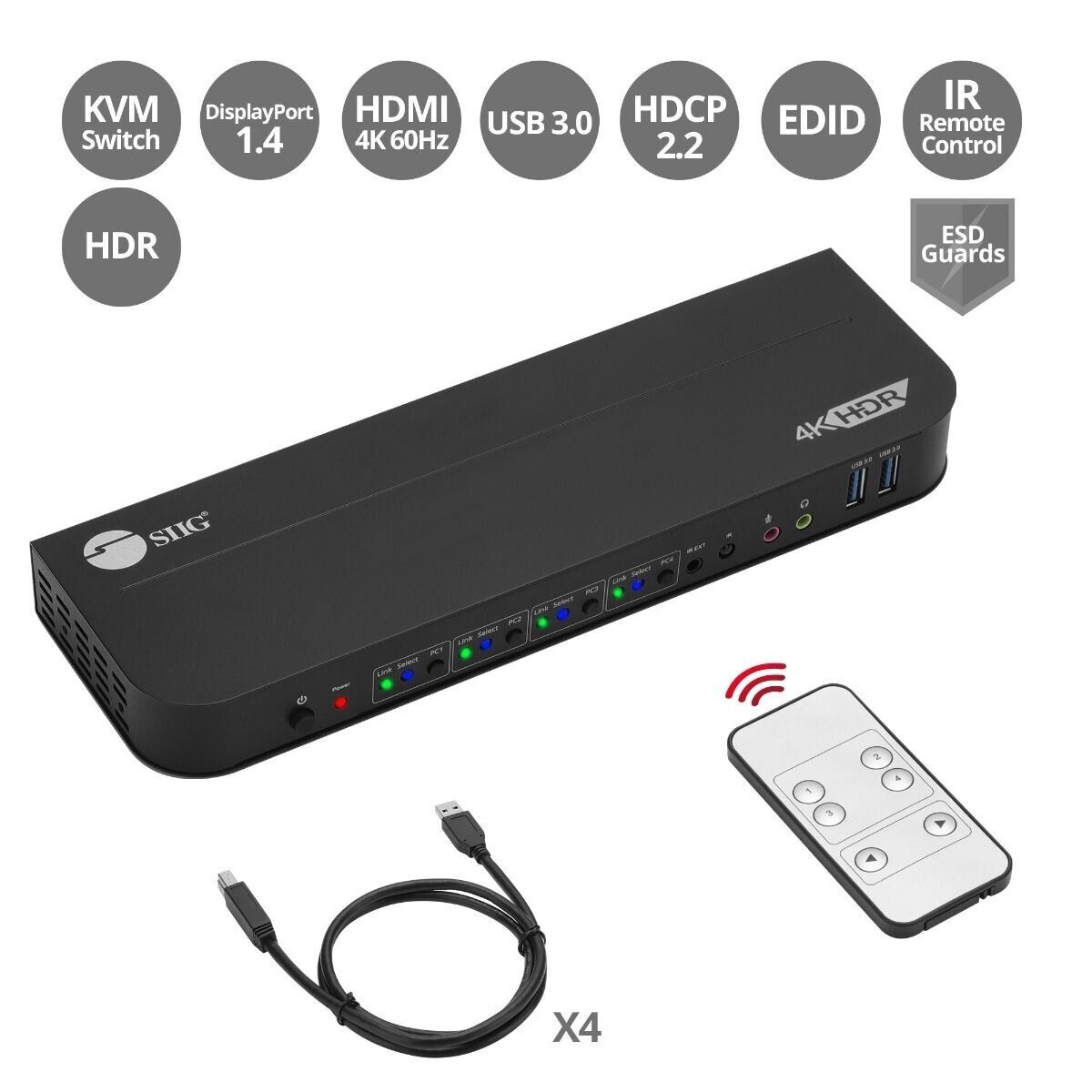

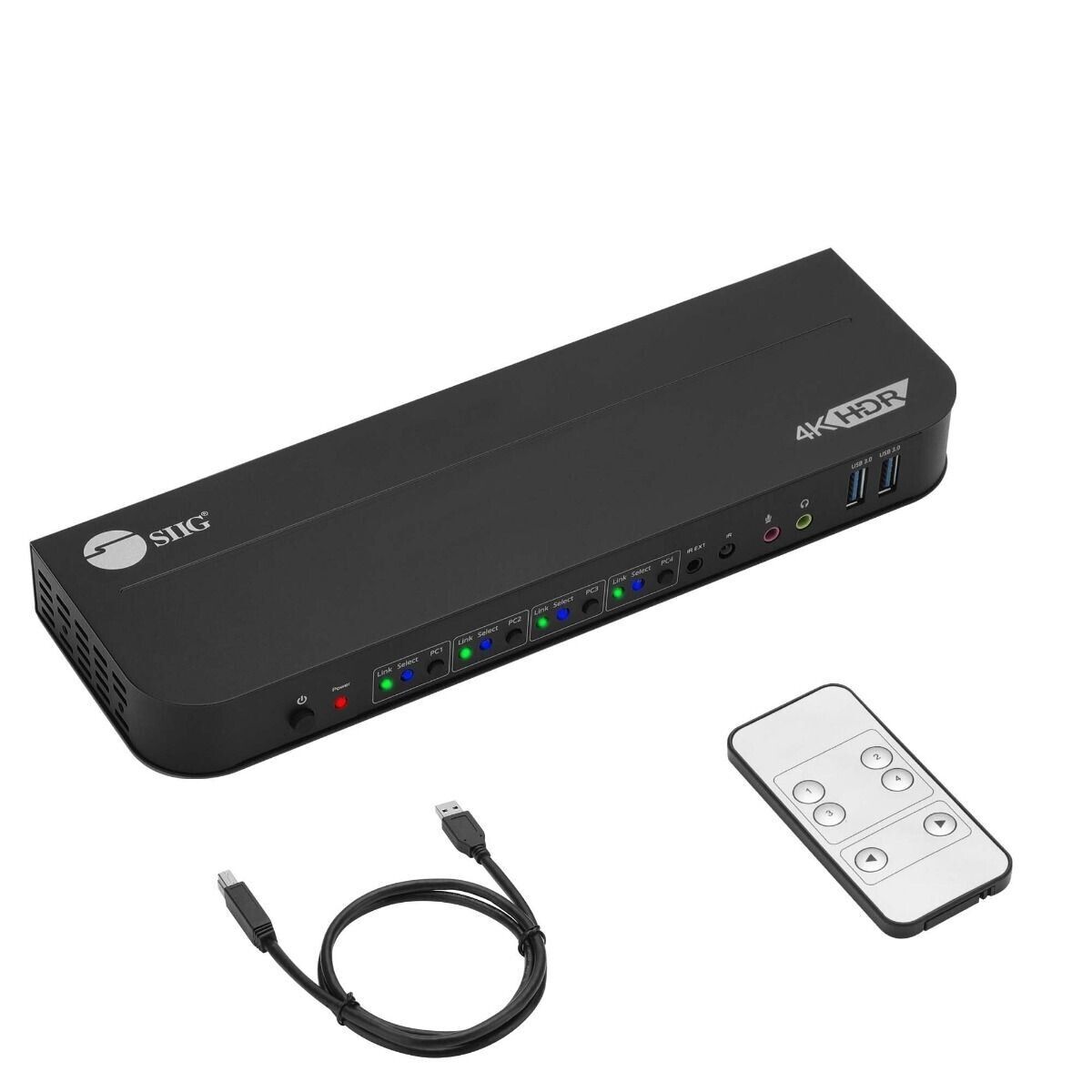

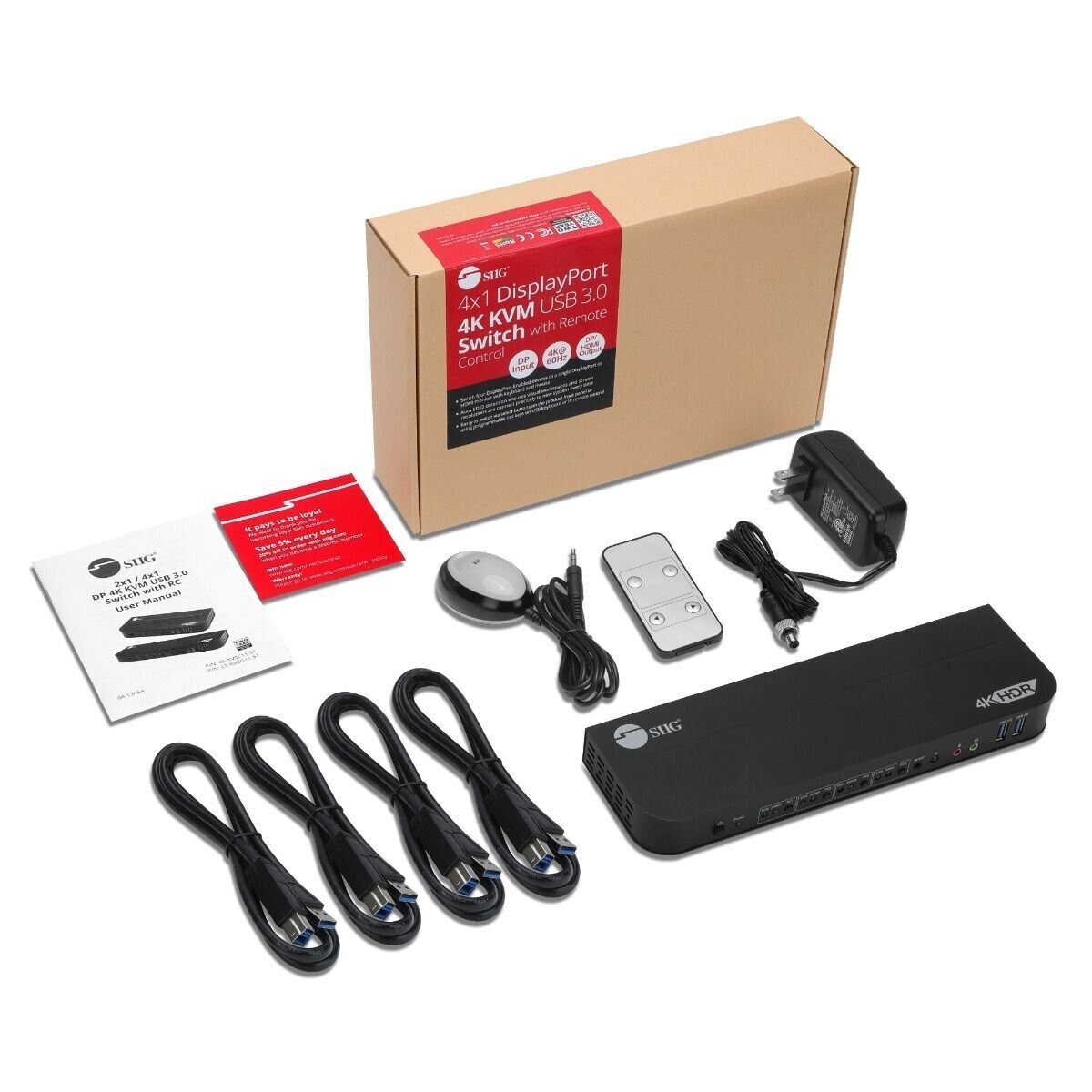

Package contents

• 1x 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control
• 4x USB 3.2 Gen 1 Type-A to B cable
• 1x IR extender cable
• 1x IR remote control
• 1x DC power adapter, 5V/3A
• 1x User reference guide
