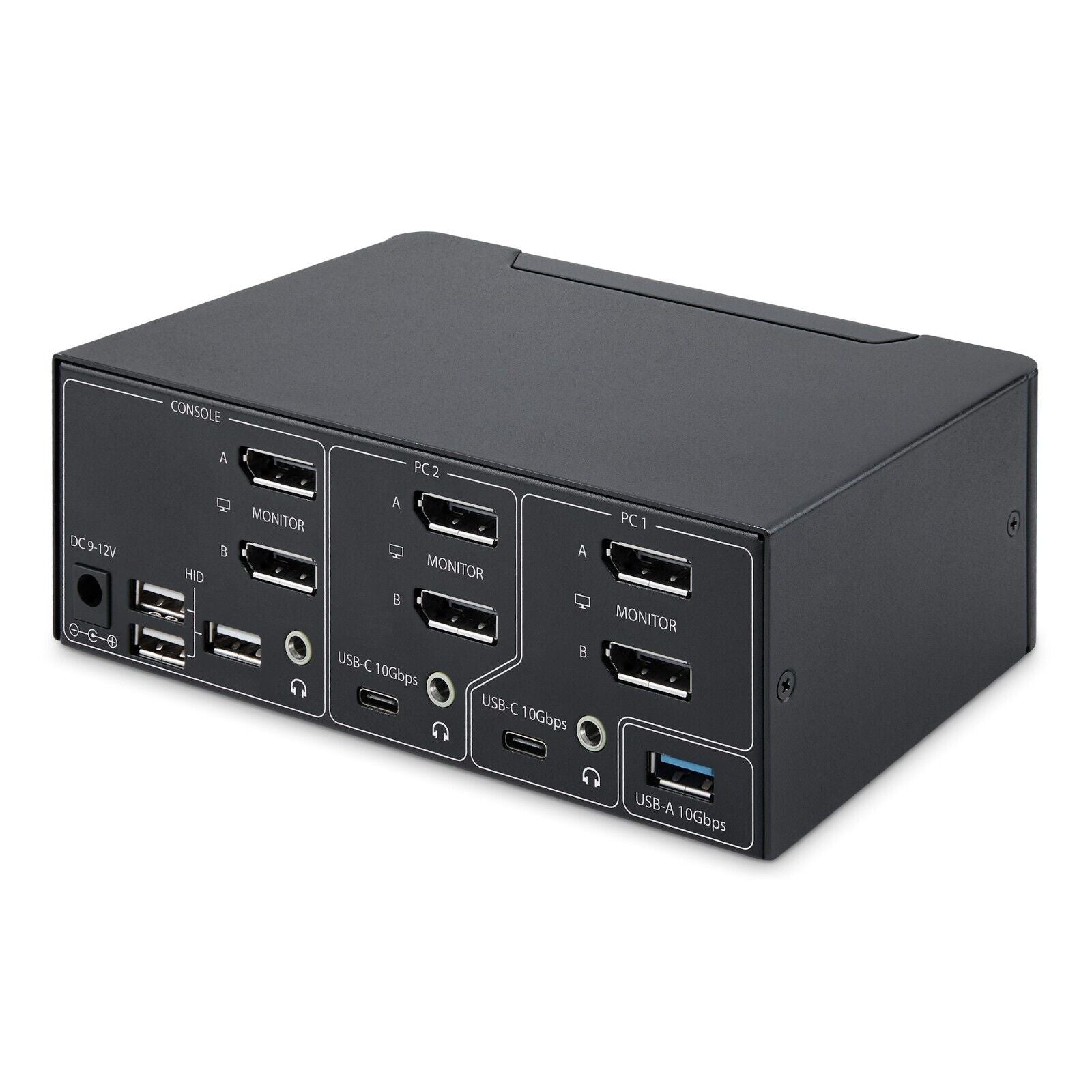

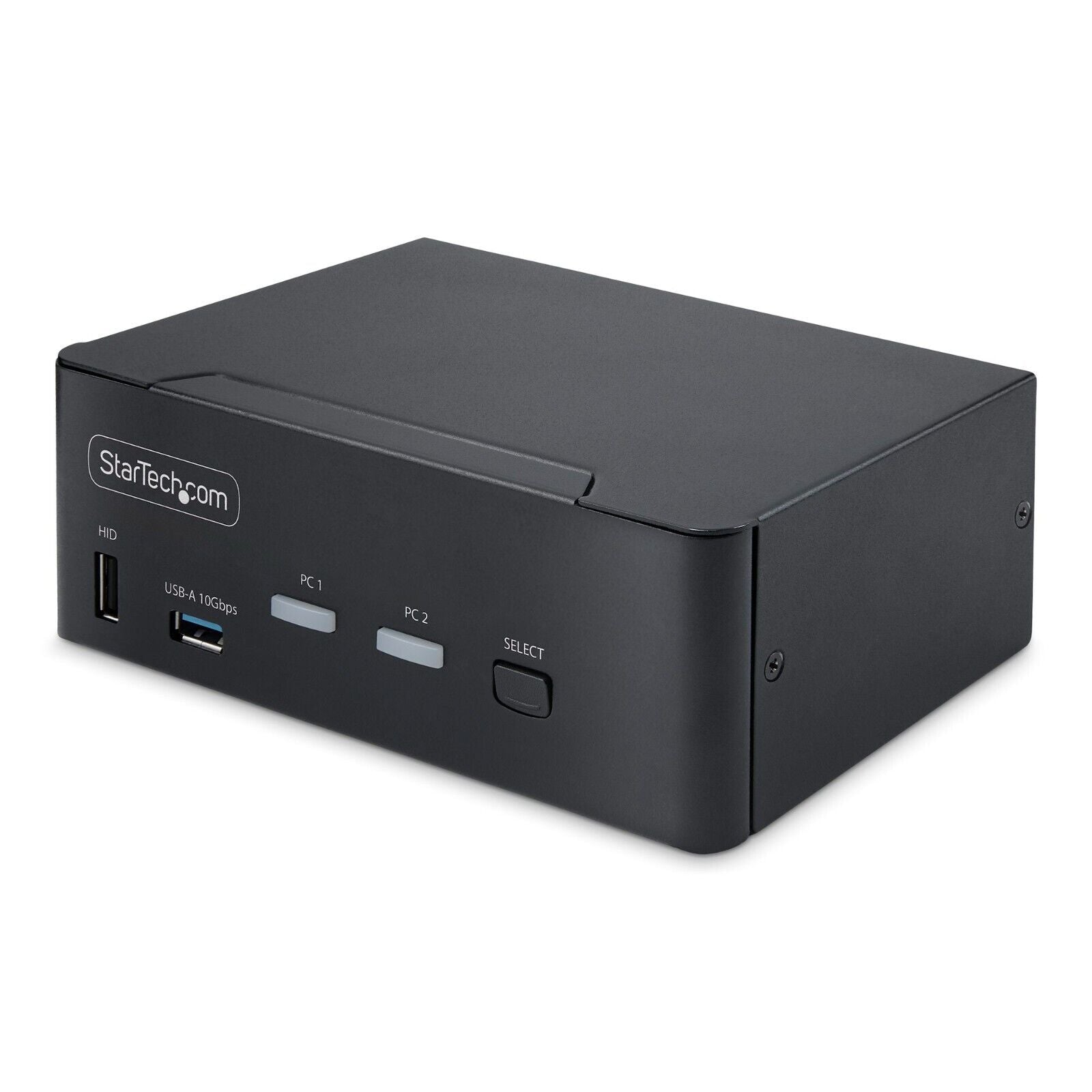

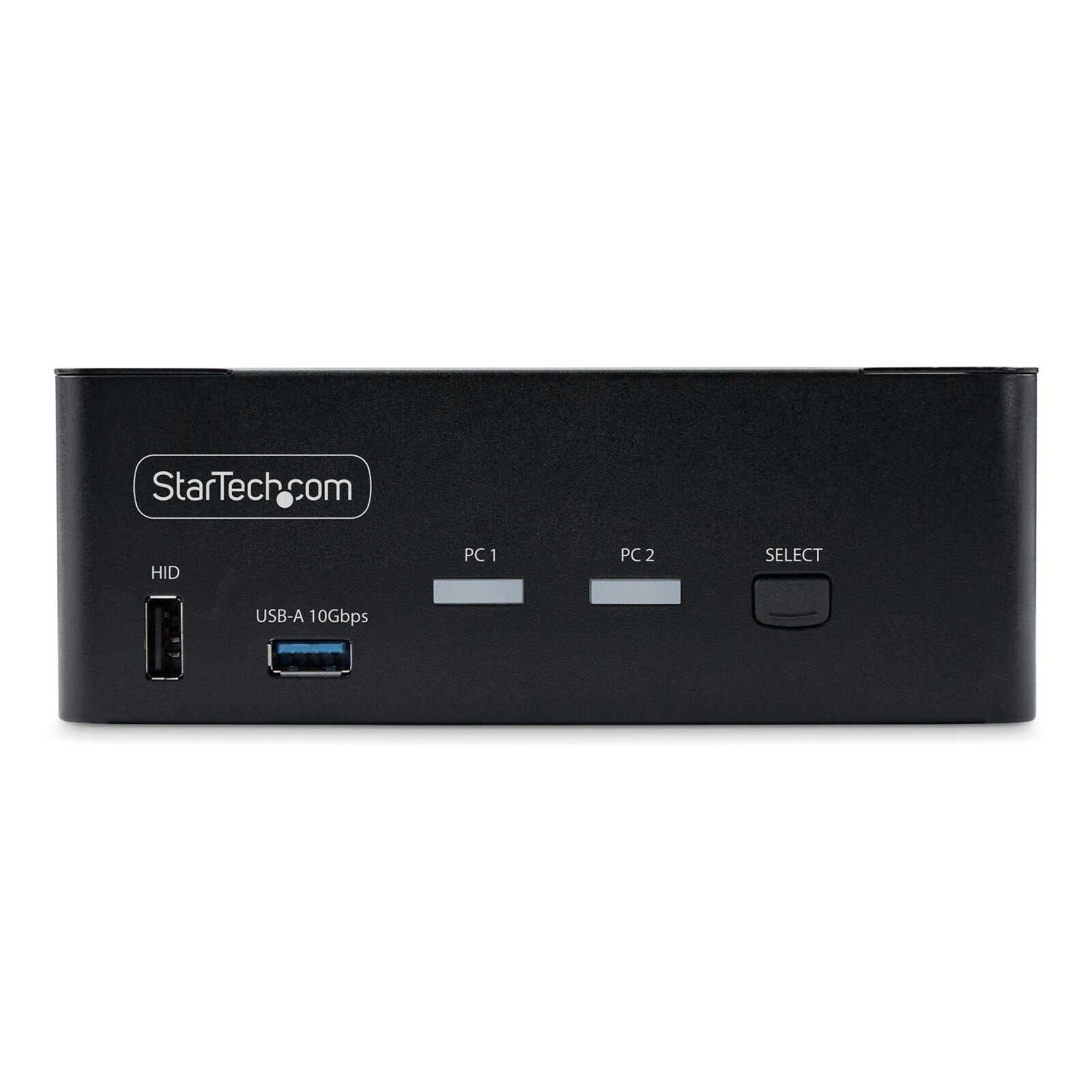

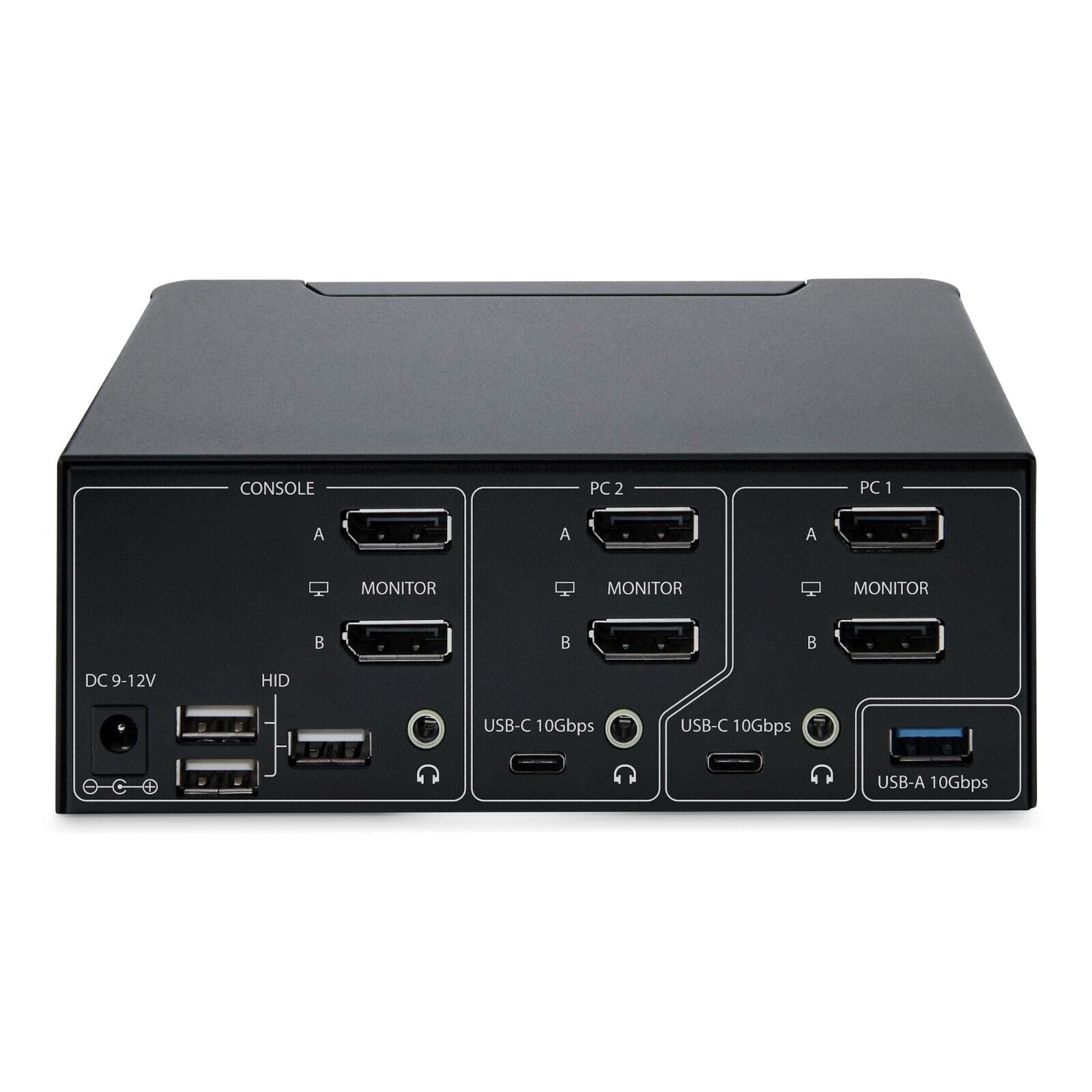

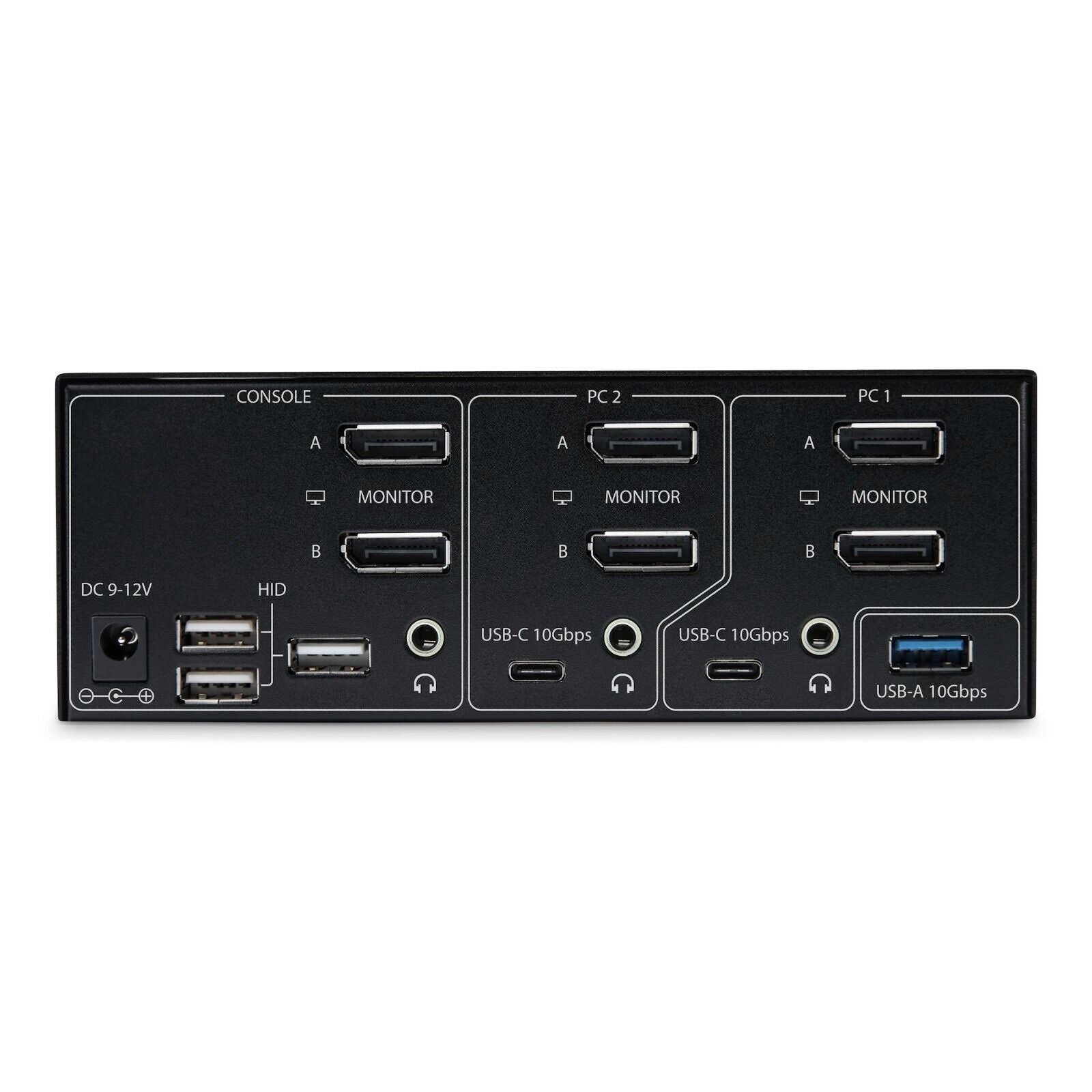

StarTech P2CDD143-KVM-SWITCH 2-Port DisplayPort 8K KVM Switch 4x USB 3.5mm Power
Regular price
$584.15 USD
Sale price
$584.15 USD
Regular price
$526.99 USD
Description
StarTech P2CDD143-KVM-SWITCH 2-Port DisplayPort 8K KVM Switch 4x USB 3.5mm Power
Current product
Current
Vendor:
Startech
StarTech P2CDD143-KVM-SWITCH 2-Port DisplayPort 8K KVM Switch 4x USB 3.5mm Power
Regular price
$584.15 USD
Sale price
$584.15 USD
Regular price
$526.99 USD
Options
Descriptions
2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant
Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers
Warranty Information
Warranty
2 Years
Connector(s)
Console Interface(s)
2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
2 - DisplayPort
4 - USB Type-A (4 pin; HID Port) USB 1.1
1 - 3.5mm Stereo Female 3 pos
1 - M-Type Barrel (Inner Diameter: 2.1 mm, Outer Diameter: 5.5 mm)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
Humidity
0% ~ 80% RH (non-condensing)
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB
PC Video Type
DisplayPort
Number of Monitors Supported
2
Rack-Mountable
No
Cables Included
Yes
Chipset ID
Genesys Logic - GL3590
Indicators
LED Indicators
1 - PC LED:
Solid Green when a Host Connection is detected
Blinking Green when a Host connection is not detected
Solid Green when a Host Connection is detected
Blinking Green when a Host connection is not detected
1 - Hub LED:
Solid Red when the PC Port is selected
Solid Red when the PC Port is selected
Packaging Information
Package Height
3.5 in [8.9 cm]
Package Length
7.2 in [18.4 cm]
Shipping (Package) Weight
3.1 lb [1.4 kg]
Package Width
9.4 in [23.8 cm]
Performance
On-Screen Display
No
Video Revision
DisplayPort 1.4
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
10Gbps
Maximum Digital Resolutions
8K 60Hz
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Auto Scan
3, 8, 15 & 30 seconds
Maximum Number of Users
1
Port Selection Support
Push Button and Hotkeys
MTBF
168,000 Hours
Physical Characteristics
Color
Black
Product Height
2.4 in [6.0 cm]
Product Length
6.3 in [16.0 cm]
Weight of Product
1.7 lb [0.8 kg]
Product Width
3.9 in [10.0 cm]
Material
Metal
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1A
Output Voltage
12V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
36W
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
System and Cable Requirements
A host that supports DisplayPort 1.4 and DSC is required for maximum video performance
A host that supports USB 3.2 Gen 2 (10Gbps) is required for maximum transfer speeds using the USB hub ports
What's in the Box
Included in Package
1 - KVM Switch
2 - USB-C to USB-A Cable
1 - Universal Power Adapter (NA/EU/UK/ANZ)
1 - Set of Rubber Feet
1 - Quick-Start Guide
..
