StarTech P2DD46A2-KVM-SWITCH 2-Port DisplayPort DP 4K USB 3.5mm KVM Switch Power
Regular price
$452.66 USD
Sale price
$452.66 USD
Description
Couldn't load pickup availability
StarTech P2DD46A2-KVM-SWITCH 2-Port DisplayPort DP 4K USB 3.5mm KVM Switch Power
Current product
Current
Vendor:
Startech
StarTech P2DD46A2-KVM-SWITCH 2-Port DisplayPort DP 4K USB 3.5mm KVM Switch Power
Regular price
$452.66 USD
Sale price
$452.66 USD
Options
Descriptions
2-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant - 3.5mm Audio, HDCP
Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between two DisplayPort-enabled computers
Warranty Information
Warranty
2 Years

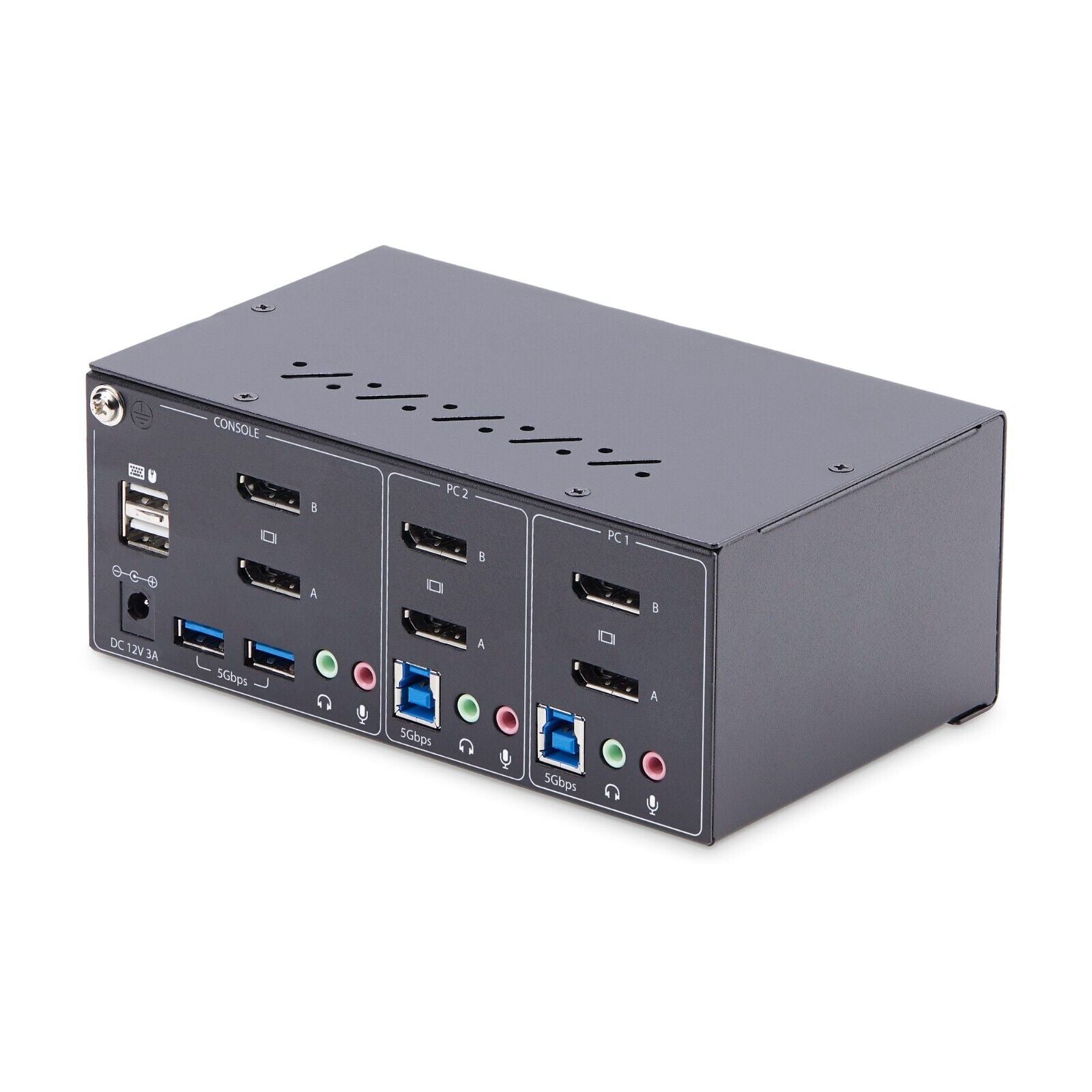

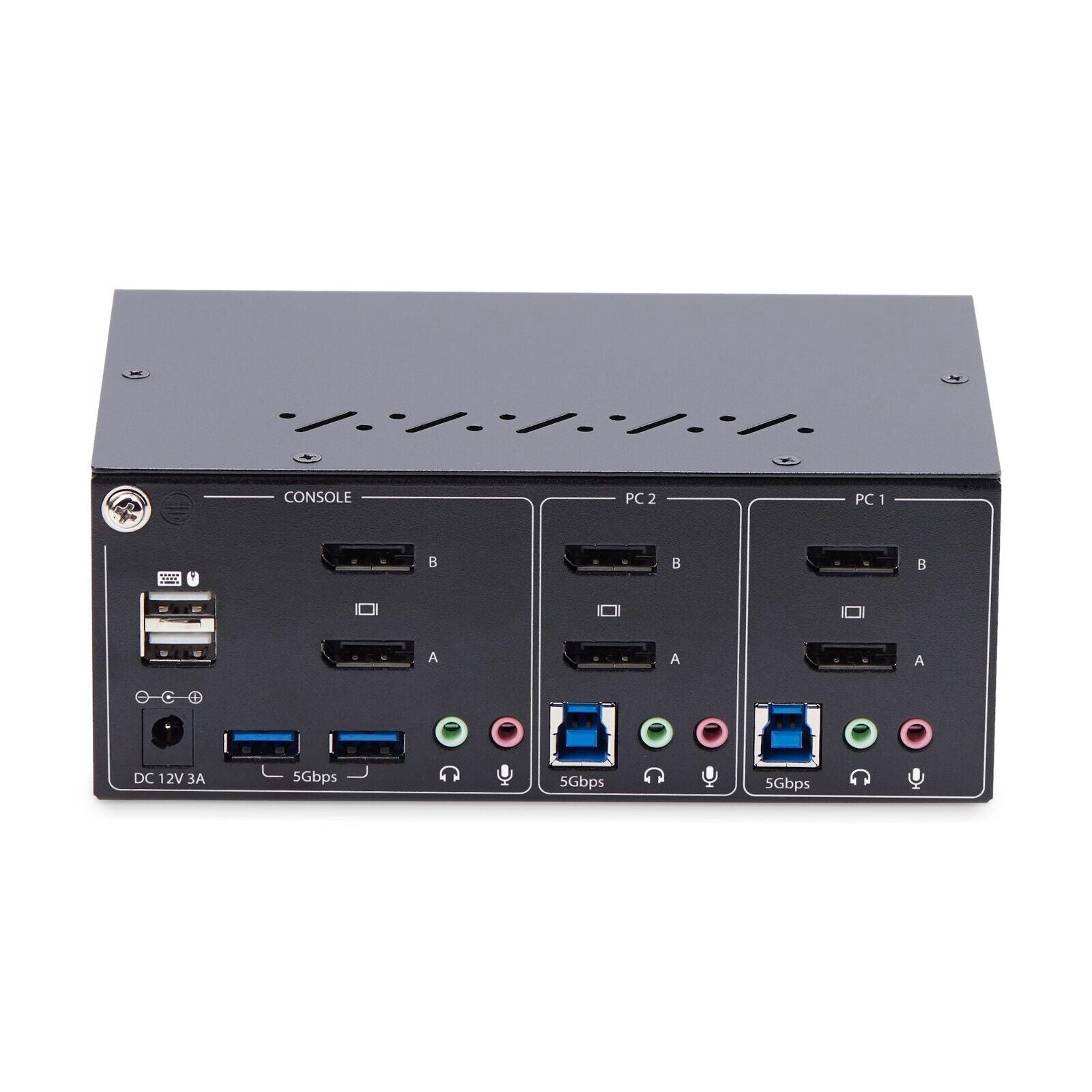

Connector(s)
Console Interface(s)
2 - DisplayPort
2 - USB Type-A (9 pin, 5 Gbps)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
2 - 3.5mm Stereo Female 3 pos
1 - Barrel Power Connector (Size N, OD: 5.5, ID: 2.5)
Host Connectors
4 - DisplayPort
2 - USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps)
4 - 3.5mm Stereo Female 3 pos
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0% ~ 90% RH (non-condensing)
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB 3.2 Gen 1 (5Gbps)
PC Video Type
DisplayPort
Number of Monitors Supported
2
Rack-Mountable
No
Cables Included
No
Daisy-Chain
No

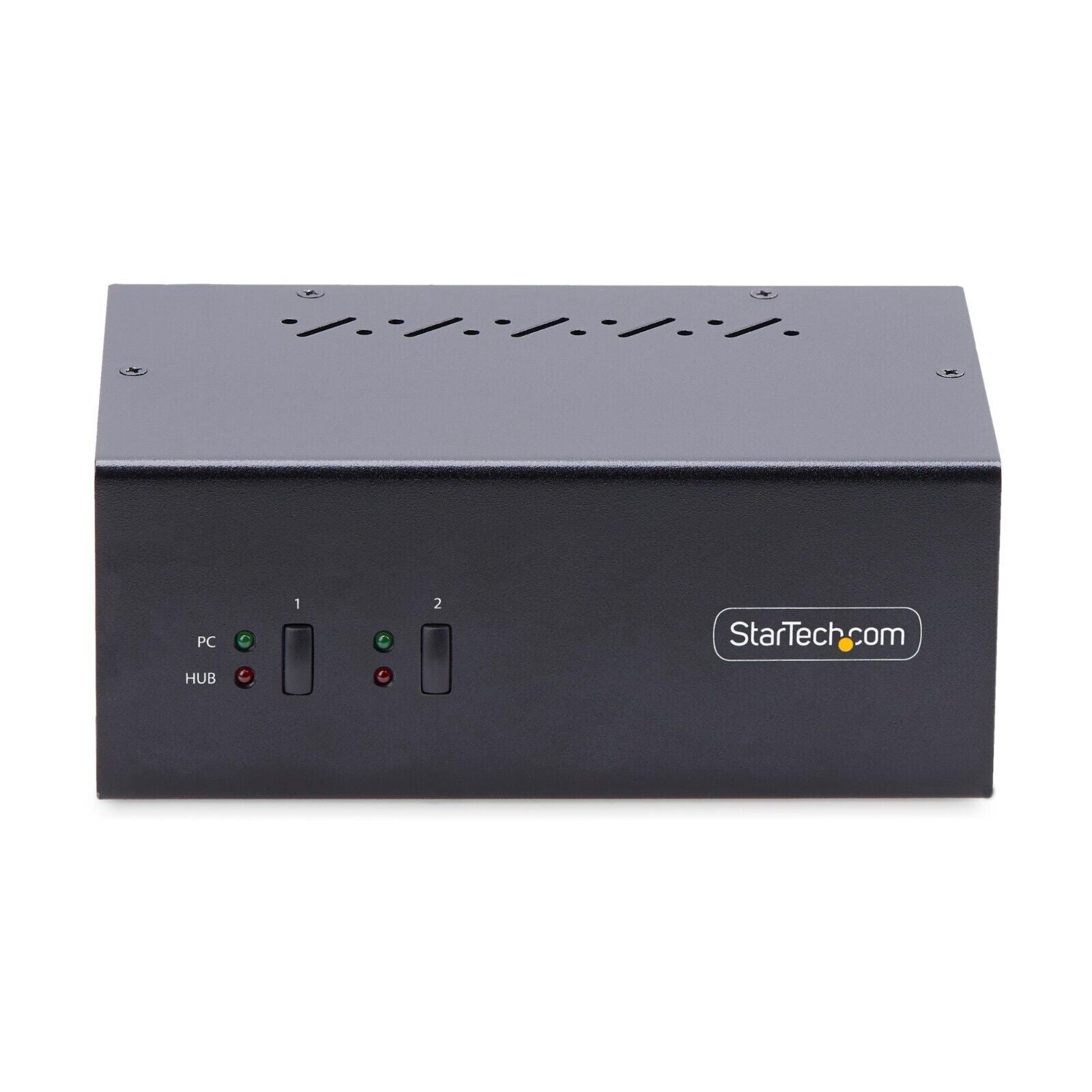

Indicators
LED Indicators
2 - PC LED: Solid Green when a host connection is detected. Blinking Green when a host connection is not detected
2 - Hub LED: Solid Red when the PC port is selected
Packaging Information
Package Quantity
1
Package Height
5.3 in [13.4 cm]
Package Length
6.4 in [16.3 cm]
Shipping (Package) Weight
2.8 lb [1.3 kg]
Package Width
13.0 in [33.1 cm]
Performance
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
5Gbps
Maximum Cable Length
24.6 ft [7.5 m]
Maximum Digital Resolutions
3840 x 2160 60Hz
Supported Resolutions
3840x2160 @60Hz
2560x1440 @60Hz
1920x1200 @60Hz
1920x1080 @60Hz
Other resolutions and refresh rates may be supported
2560x1440 @60Hz
1920x1200 @60Hz
1920x1080 @60Hz
Other resolutions and refresh rates may be supported
Audio Specifications
DisplayPort - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Auto Scan
10, 20, 30, 40, 50, and 60 seconds
Port Selection Support
Push Button and Hotkeys
MTBF
173,052 Hours
Physical Characteristics
Color
Black
Product Height
2.6 in [6.6 cm]
Product Length
6.4 in [16.3 cm]
Weight of Product
1.7 lb [0.8 kg]
Product Width
3.9 in [10.0 cm]
Material
Steel
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1 A
Output Voltage
12V DC
Output Current
3 A
Center Tip Polarity
Positive
Plug Type
N
Power Consumption (In Watts)
0.1 W
Software
OS Compatibility
No Drivers or Software Required
What's in the Box
Included in Package
1 - KVM Switch
1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
1 - Quick-Start Guide
..
