StarTech RKCOND17HD Dual Rail DVI VGA Rackmount KVM Switch w 17" LCD Console
Regular price
$1,433.41 USD
Sale price
$1,433.41 USD
Regular price
$1,309.99 USD
Description
StarTech RKCOND17HD Dual Rail DVI VGA Rackmount KVM Switch w 17" LCD Console
Current product
Current
Vendor:
Startech
StarTech RKCOND17HD Dual Rail DVI VGA Rackmount KVM Switch w 17" LCD Console
Regular price
$1,433.41 USD
Sale price
$1,433.41 USD
Regular price
$1,309.99 USD
Options
Descriptions
Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF
1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included
Warranty Information
Warranty
2 Years

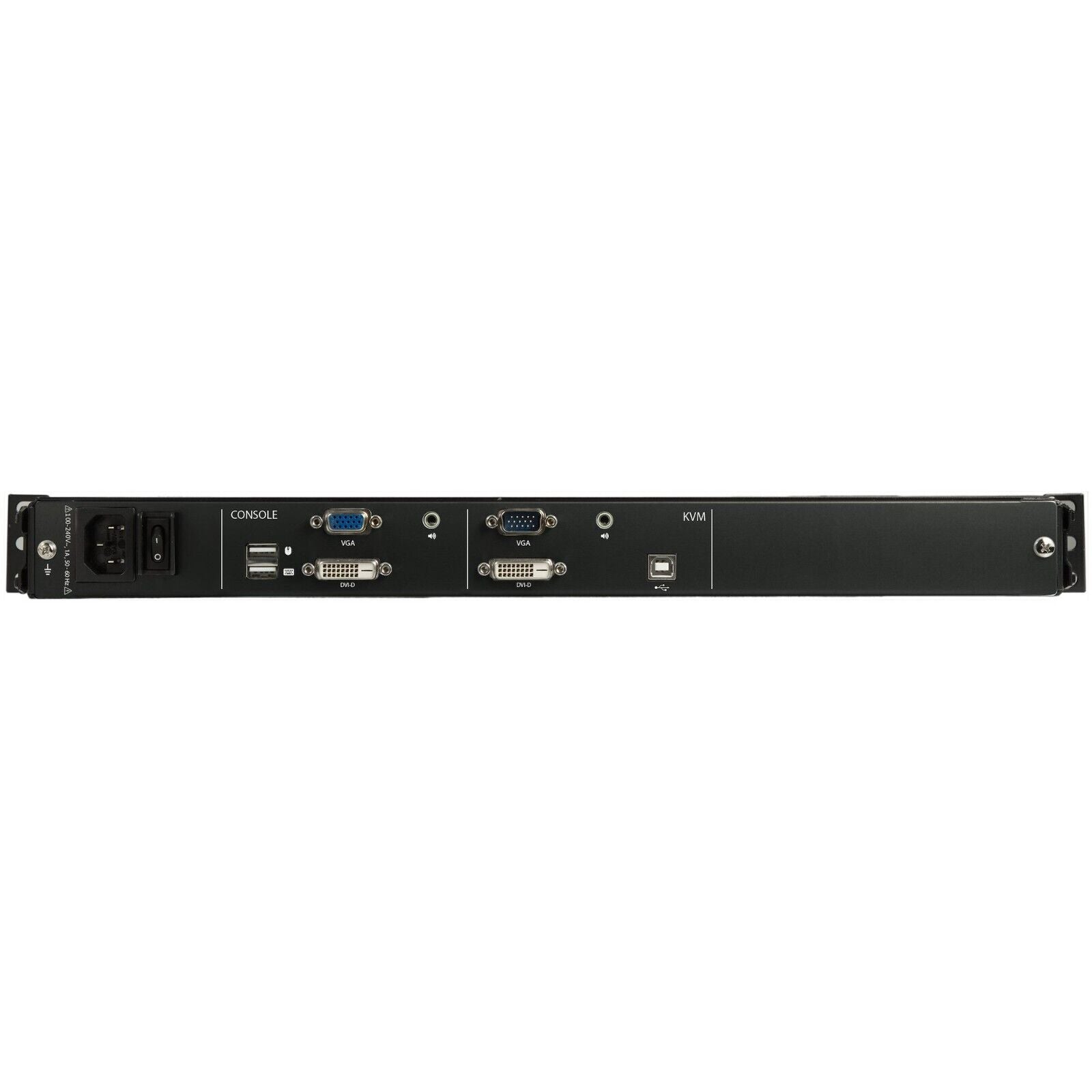

Connector(s)
Console Interface(s)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - VGA (15 pin, High Density D-Sub)
1 - DVI-D (25 pin)
1 - 3.5 mm Stereo Audio
Host Connectors
1 - VGA (15 pin, High Density D-Sub)
1 - DVI-D (25 pin)
1 - USB Type-B (4 pin) USB 2.0
1 - 3.5 mm Stereo Audio
Environmental
Operating Temperature
0~40 Celsius Degree
Storage Temperature
-20~60 Celsius Degree
Humidity
0~80% RH Non-condensing
Hardware
U Height
1U
Audio
Yes
Display Size
17.3"
Panel Type
Active Matrix TFT LCD
KVM Ports
1
PC Interface
USB
PC Video Type
DVI+VGA
Number of Monitors Supported
1
Rack-Mountable
Yes
Cables Included
Yes
Indicators
LED Indicators
1 - Power
1 - Num Lock
1 - Caps Lock
1 - Scroll Lock
Packaging Information
Package Height
5.4 in [13.6 cm]
Package Length
32.6 in [82.9 cm]
Package Width
26.5 in [67.4 cm]
Package Quantity
1
Shipping (Package) Weight
41.9 lb [19.0 kg]
Performance
On-Screen Display
No
DVI Support
Yes
Hot-Key Selection
Yes
Maximum Analog Resolutions
1920 x 1080 @ 60Hz
Maximum Digital Resolutions
1920 x 1080 @ 60Hz
Supported Resolutions
1024×576
1152×648
1280×720
1366×768
1600×900
1920×1080
1152×648
1280×720
1366×768
1600×900
1920×1080
Aspect Ratio
16:9
Wide Screen Supported
Yes
Response Time
8 ms
Contrast Ratio
650:1
Brightness
250 cd/m²
Color Depth
18-bit, 262,144 colors
Pixel Pitch Support
0.199 x 0.199 mm
Viewing Angle
140° (H), 120° (V)
General Specifications
Keyboard Layout: US/NA - Standard English QWERTY Keyboard
MTBF
Approx. 44230 hrs.
Physical Characteristics
Color
Black
Material
Steel
Cable Length
USB and VGA Combo Cable 1.2M
3.5in Audio cable 1.8M
3.5in Audio cable 1.8M
Product Length
27.0 in [68.5 cm]
Product Width
18.9 in [48.0 cm]
Product Height
1.7 in [4.4 cm]
Weight of Product
30.0 lb [13.6 kg]
Maximum Mounting Depth
39.4 in [100 cm]
Minimum Mounting Depth
25.2 in [64.1 cm]
Power
Power Source
International Power Cords
Input Voltage
100 - 240 AC
Input Current
1A
Power Consumption (In Watts)
19.4W
Software
OS Compatibility
OS independent; No software or drivers required
What's in the Box
Included in Package
1 - LCD Console
2 - Rear Mounting Brackets
1 - Set of KVM Cables (USB/VGA)
1 - Audio Cable
1 - Firmware Update Cable
8 - M5 Cage Nuts
8 - M5 Screws
5 - Power Cords (NA, JP, UK, EU, ANZ)
1 - Quick-Start Guide
..
