Warranty

3 Years

Console Interface(s)

1 - VGA (15 pin, High Density D-Sub)

4 - USB 2.0 Type-A (4 pin, 480Mbps)

1 - DVI-I (29 pin)

2 - 3.5 mm Mini-Jack (3 Position)

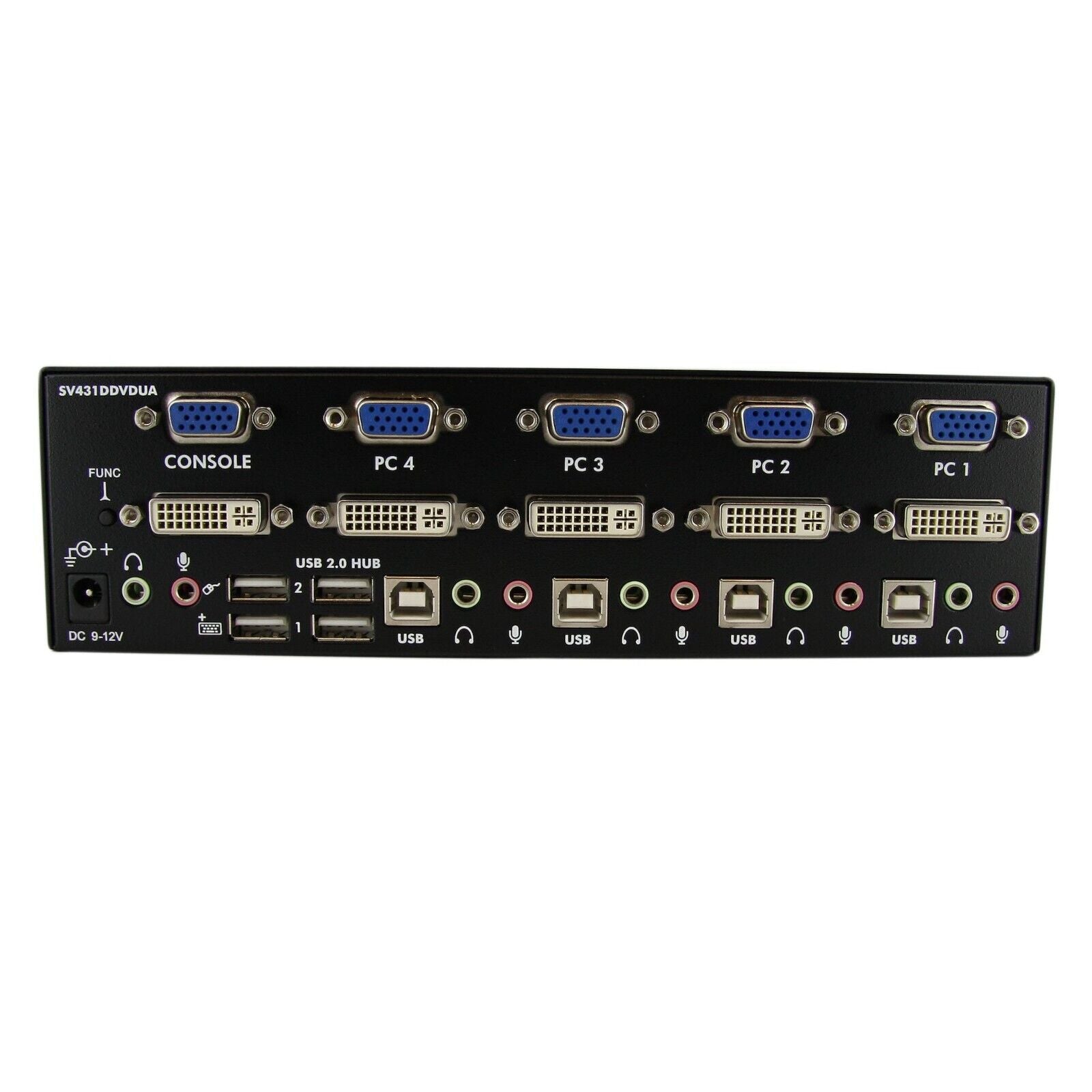

Host Connectors

4 - 3.5 mm Mini-Jack (3 Position)

4 - DVI-I (29 pin)

4 - USB B (4 pin)

4 - VGA (15 pin, High Density D-Sub)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

80% RH

Audio

Yes

KVM Ports

4

PC Interface

USB

PC Video Type

DVI+VGA

Number of Monitors Supported

2

Rack-Mountable

Optional

Cables Included

No

Daisy-Chain

No

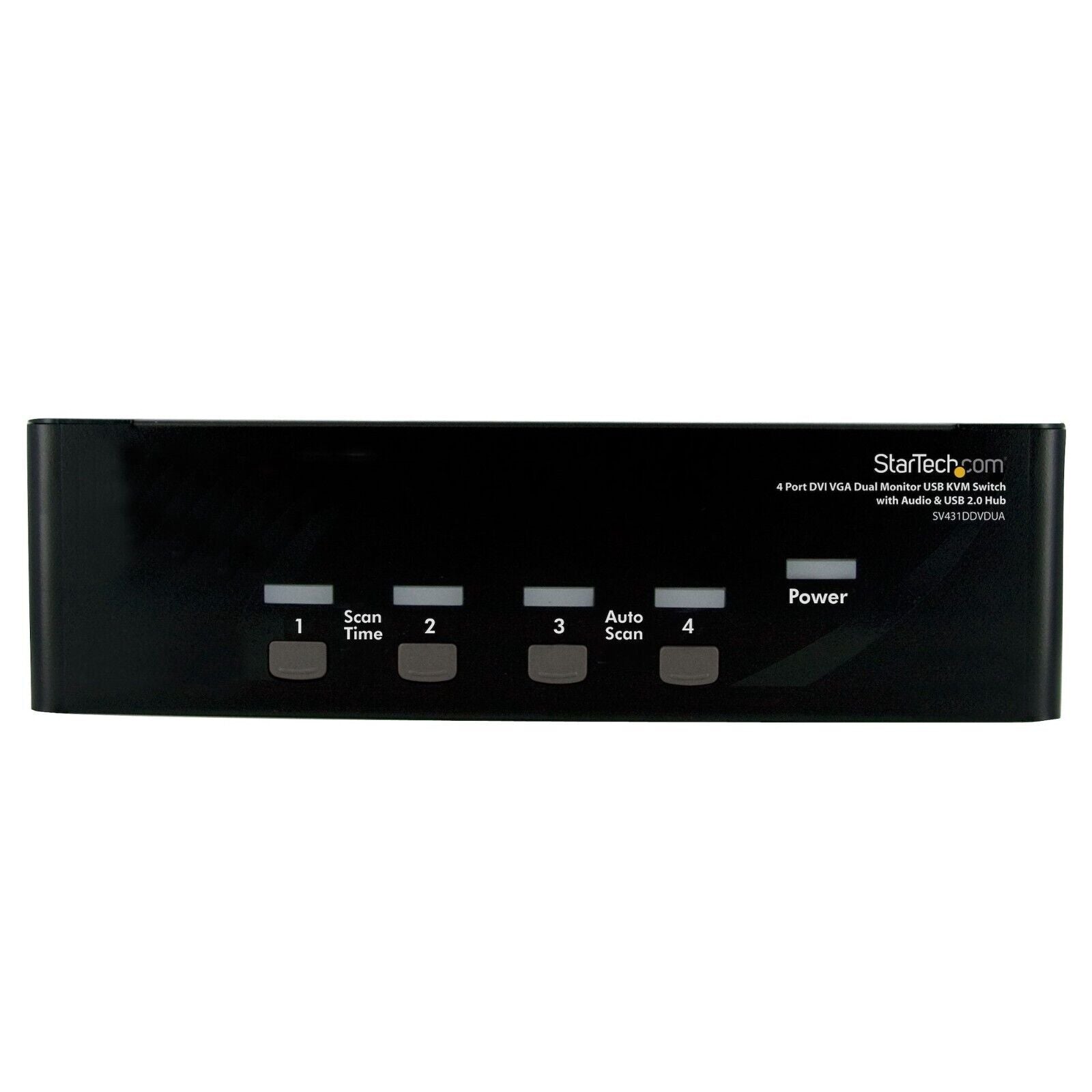

LED Indicators

2 - Green - PC Detected

1 - Green - Power

2 - Red - PC Indicator

Package Height

3.3 in [8.4 cm]

Package Length

11.7 in [29.8 cm]

Shipping (Package) Weight

3.9 lb [1.8 kg]

Package Width

9.7 in [24.6 cm]

Package Quantity

1

On-Screen Display

No

DVI Support

Yes - Single Link

IP Control

No

Hot-Key Selection

Yes

Maximum Analog Resolutions

1920 x 1400

Maximum Digital Resolutions

1920 x 1200

Maximum Number of Users

1

Port Selection Support

Push Button and Hotkeys

MTBF

140000 hours

Weight of Product

2.8 lb [1.3 kg]

Color

Black

Material

Steel

Product Length

6.4 in [16.3 cm]

Product Width

8.7 in [22 cm]

Product Height

2.4 in [6 cm]

Product Depth

5.1 in [130 mm]

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

0.8A

Output Voltage

12V DC

Output Current

1.5A

Center Tip Polarity

Positive

Plug Type

M

Power Consumption (In Watts)

18

OS Compatibility

OS independent; No software or drivers required

Note

While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.

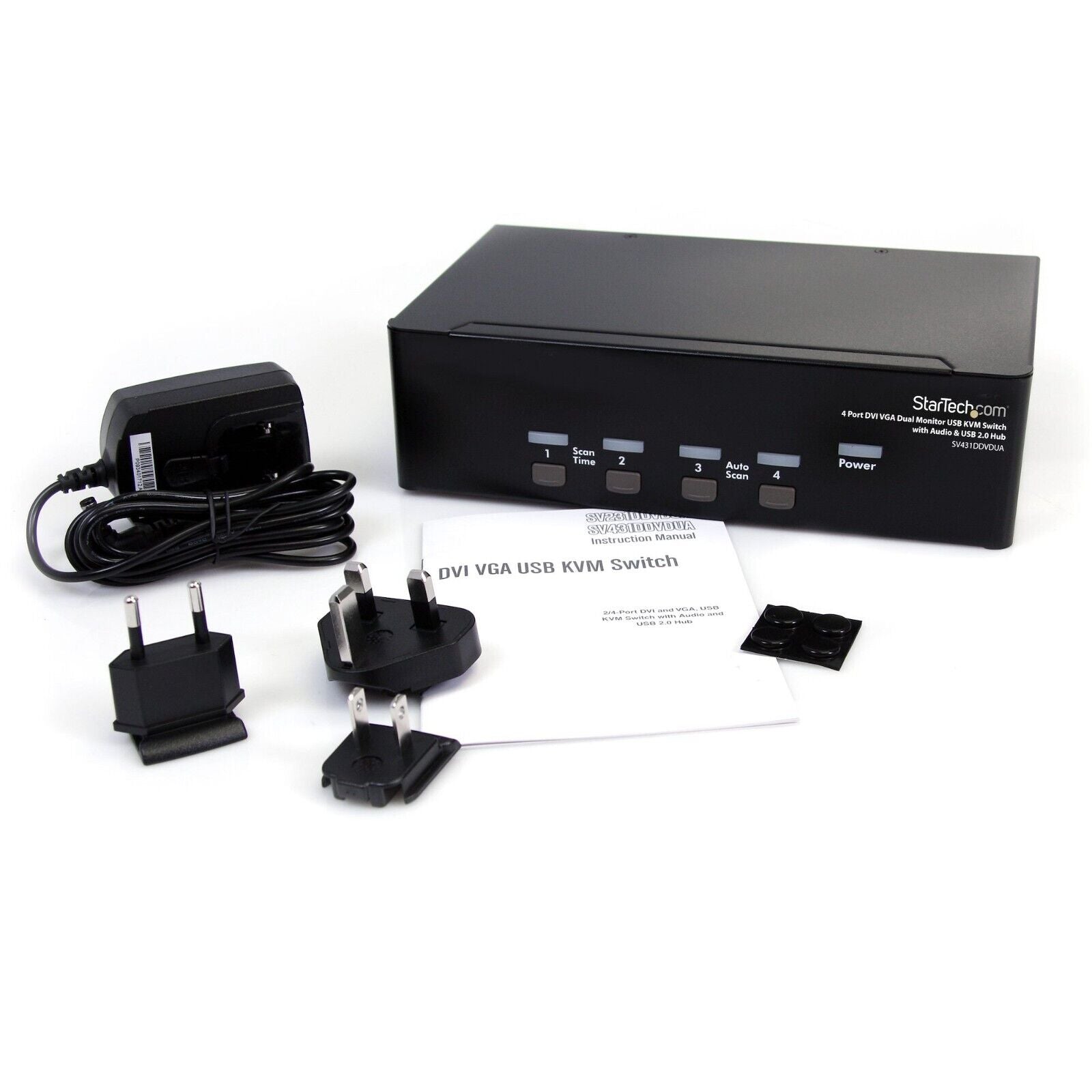

Included in Package

1 - 4-port KVM switch

4 - foot pads

1 - universal power adapter (NA/EU/UK/AU)

1 - instruction manual
