Warranty

2 Years

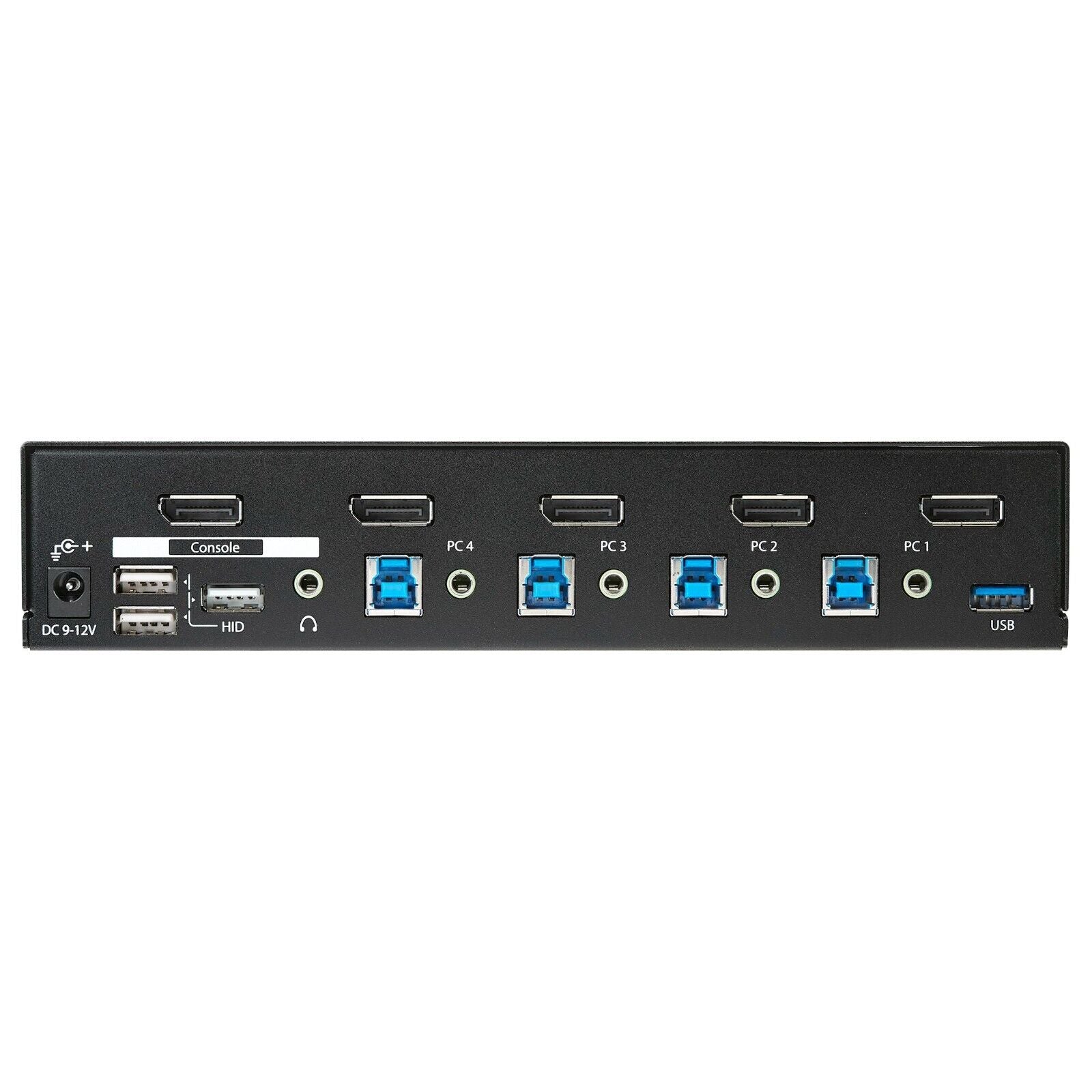

Console Interface(s)

1 - DisplayPort (20 pin)

1 - 3.5 mm Mini-Jack (3 Position)

4 - USB Type-A (9 pin, 5 Gbps)

Host Connectors

4 - DisplayPort (20 pin)

4 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)

4 - 3.5 mm Mini-Jack (3 Position)

Other Interface(s)

3 - USB Type-A (9 pin, 5 Gbps)

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-10°C to 60°C (14°F to 140°F)

Humidity

0~80% RH Non-Condensing

Audio

Yes

KVM Ports

4

PC Interface

USB 3.2 Gen 1 (5Gbps)

PC Video Type

DisplayPort

Number of Monitors Supported

1

Rack-Mountable

Optional

Cables Included

No

Industry Standards

HDCP 2.2

Daisy-Chain

No

LED Indicators

4 - port selection/link LEDs

1 - power LED

Package Height

3,4 in [8,6 cm]

Package Length

11,6 in [29,4 cm]

Shipping (Package) Weight

3,5 lb [1,6 kg]

Package Width

9,6 in [24,4 cm]

Package Quantity

1

On-Screen Display

No

IP Control

No

Hot-Key Selection

Yes

Maximum Cable Length

32,8 ft [10 m]

Maximum Digital Resolutions

3840x2160 @ 30 Hz

Wide Screen Supported

Yes

Audio Specifications

Port Selection Support

Push Button and Hotkeys

MTBF

143000 hours

Color

Black

Product Length

8,7 in [22 cm]

Product Width

5,1 in [13 cm]

Product Height

1,7 in [4,3 cm]

Weight of Product

2,3 lb [1,1 kg]

Input Voltage

100 - 240 AC

Output Voltage

12V DC

Output Current

1.5 A

Plug Type

M

Power Consumption (In Watts)

18

Note

About video adapters
If you use a video adapter with this KVM switch, you must use an active video adapter. If you use a passive video adapter, you might encounter performance issues.
Check with the manufacturer to determine if the video adapter that you want to use is an active adapter.

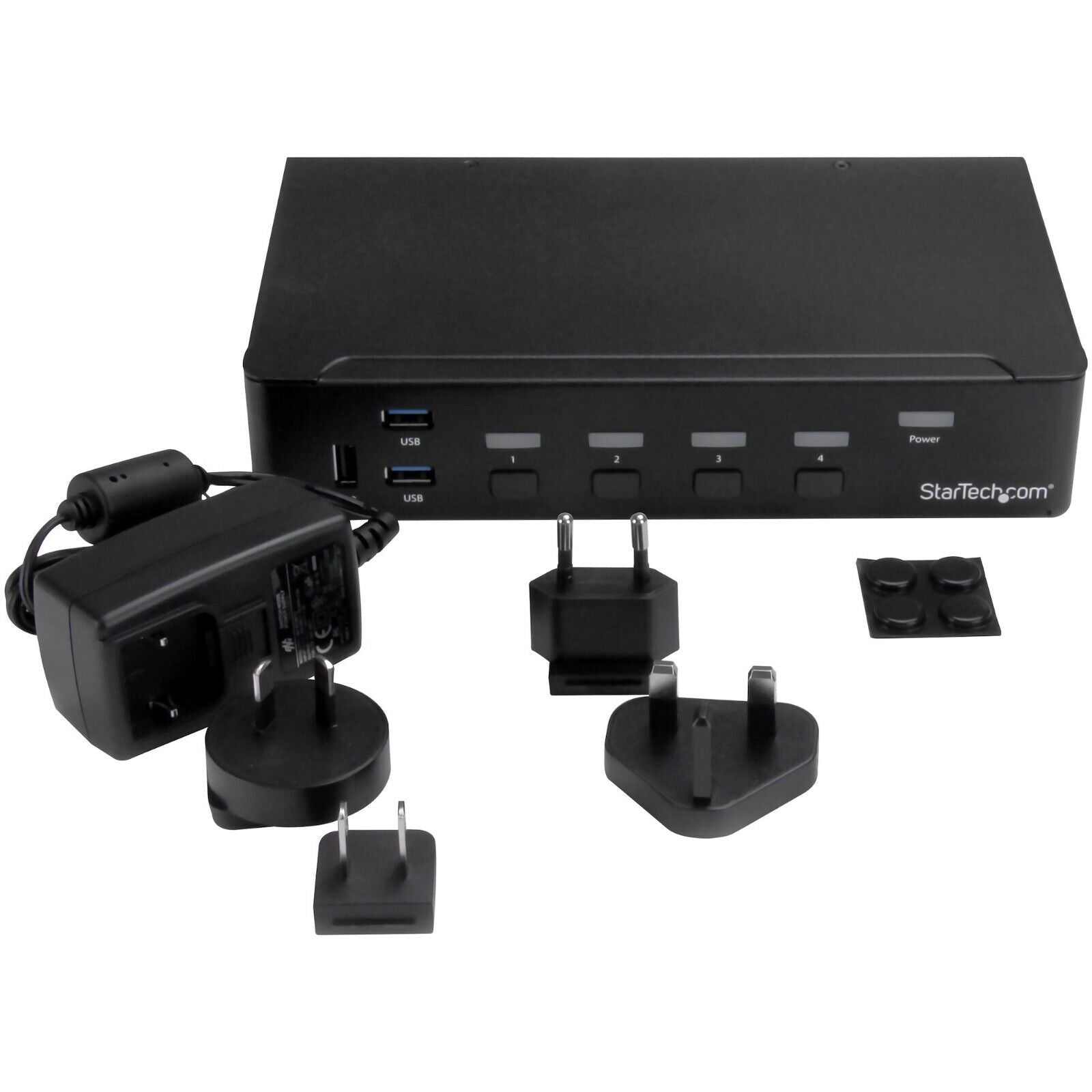

Included in Package

1 - 4-port DisplayPort KVM switch

4 - rubber feet

1 - universal power adapter (NA, EU, UK, ANZ)

1 - quick start guide
