StarTech SV431DPUA2 4 Port DisplayPort DP KVM Switch USB Audio w Power No Cables
$499.09 USD $499.09 USD $443.99 USD
Shipping calculated at checkout.
Out of stock
Description

4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant

DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

Warranty Information
Warranty
3 Years
Connector(s)
Console Interface(s)
1 - DisplayPort (20 pin)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
2 - 3.5 mm Mini-Jack (3 Position)
2 - USB Type-A (4 pin; HID Port) USB 1.1

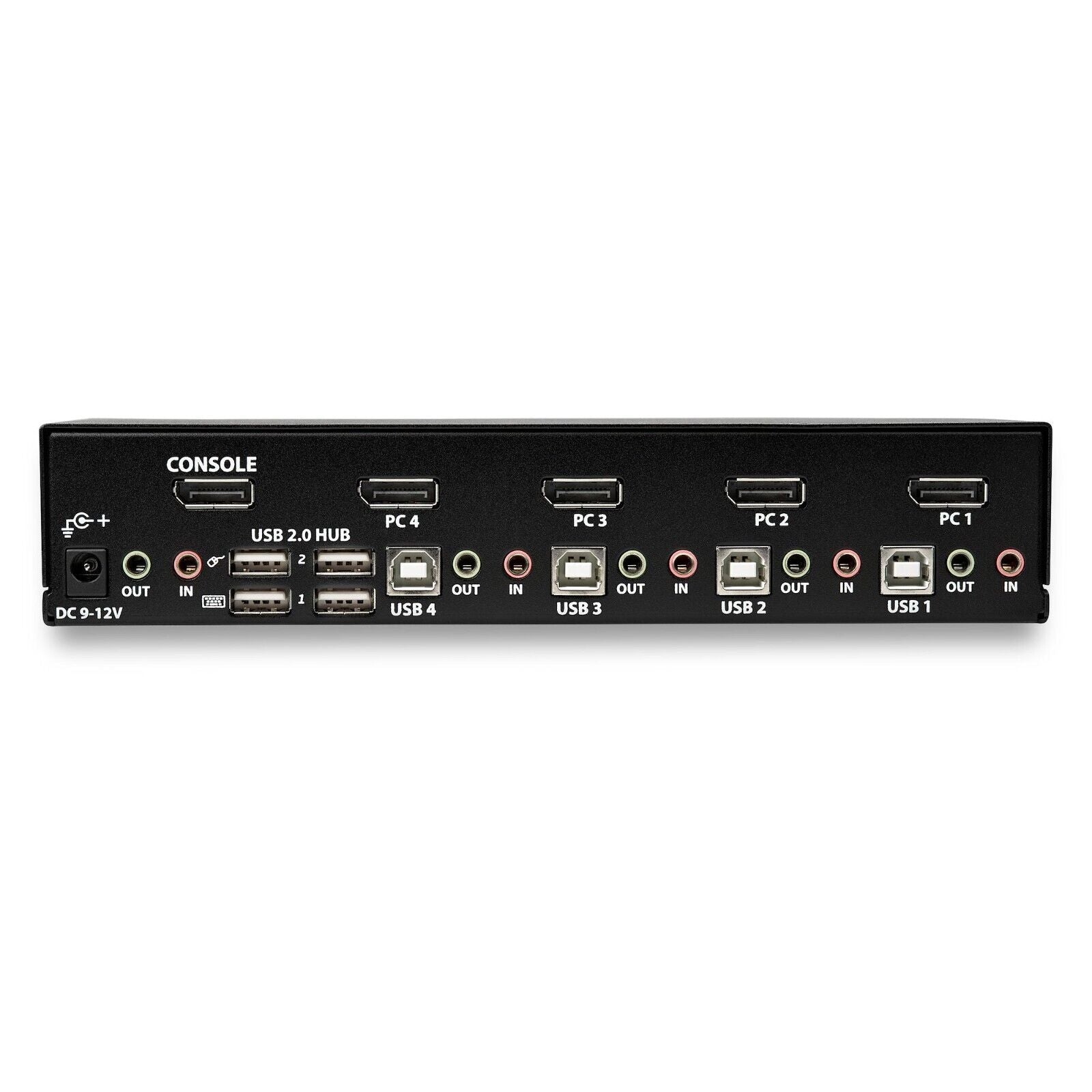

Host Connectors
8 - 3.5 mm Mini-Jack (3 Position)
4 - DisplayPort (20 pin)
4 - USB B (4 pin)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
Humidity
0% ~ 80%
Hardware
U Height
1U
Audio
Yes
KVM Ports
4
PC Interface
USB
PC Video Type
DisplayPort
Number of Monitors Supported
1
Rack-Mountable
Optional
Cables Included
No
Daisy-Chain
No
Indicators
LED Indicators
4 - Green - Online indicator (One LED per port)
1 - Power
4 - Red - Select indicator (One LED per port)
Packaging Information
Shipping (Package) Weight
3.5 lb [1.6 kg]
Package Quantity
1
Package Length
17.2 in [43.7 cm]
Package Width
3.5 in [9.0 cm]
Package Height
8.4 in [21.4 cm]
Performance
On-Screen Display
No
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
480 Mbps (USB 2.0)
Maximum Digital Resolutions
3840 x 2160 (Ultra HD 4K) @ 60hz
Wide Screen Supported
Yes
Auto Scan
3, 8, 15 & 30 seconds
Maximum Number of Users
1
Port Selection Support
Push Button and Hotkeys
MTBF
138327 hours
Physical Characteristics
Color
Black
Material
Steel
Product Length
8.7 in [22.0 cm]
Product Width
5.2 in [13.1 cm]
Product Height
1.8 in [4.5 cm]
Weight of Product
2.3 lb [1.0 kg]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.6 A
Output Voltage
12V DC
Output Current
1.5 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
18 W
Software
OS Compatibility
OS independent: No software or drivers required
What's in the Box
Included in Package
1 - KVM switch
4 - foot pads
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - quick-start guide

..

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, CA 91016 (Most usual)
  • Fort Worth, TX 76155
  • Carol Stream, IL 60188
  • Moore, SC 29369
  • Hazelton, PA 18202

…MJ5
