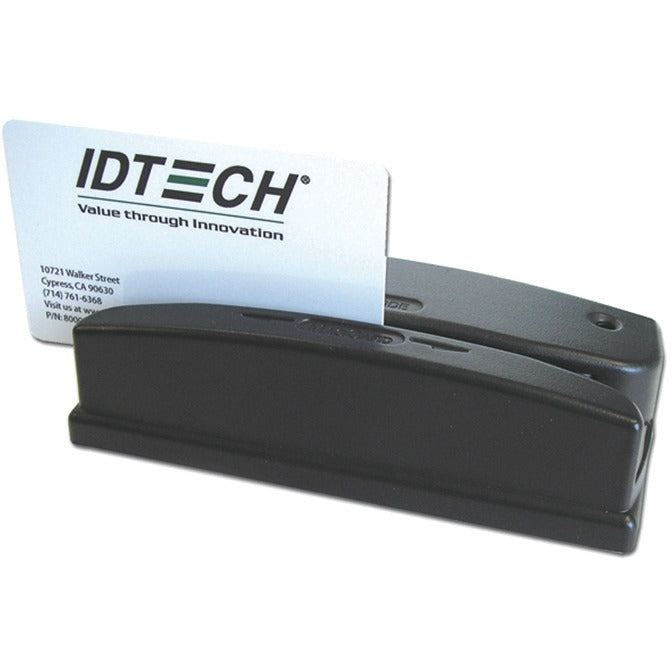

ID Tech WCR3227-633UC Credit Card Reader - Magnetic Stripe Reader - Black

MPN:  WCR3227-633UC

Product Overview:
ID Tech Omni Credit Card Reader
The ID Tech Heavy Duty Omni magnetic stripe reader. In addition to rugged housing, the Omni has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include TTL, RS-232, Keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface. If you need to read barcodes, please see the Omni Barcode Reader. If you need to read both barcodes and magnetic stripes, please see the Omni Barcode and Stripe Reader.

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three (varies by model) tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Technical Information
Magnetic Stripe Track Configuration: Triple Track
Magnetic Stripe Track Number: Track 3
Number of Swipes (Head Life): 1000000

Interfaces/Ports
Serial: Yes
USB: Yes

Power Description
Input Voltage: 5 V DC
