ID Tech WCR3237-733U Omni, Combo Bar Code-Mag Reader, USB

Product Overview:

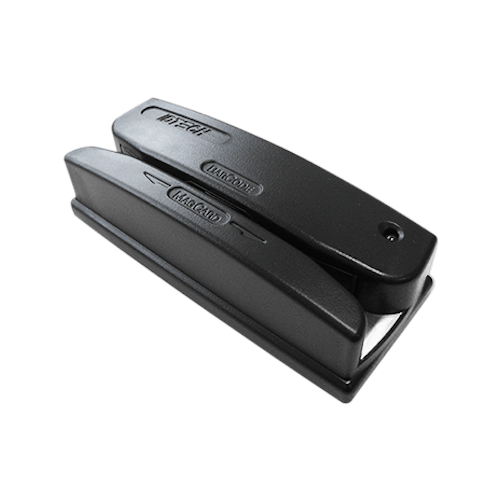

ID Tech Omni Barcode Card Reader
The ID Tech Heavy Duty Omni Barcode-Stripe Reader can read barcodes and magnetic stripe reader. In addition to rugged housing, the Omni Barcode-Stripe Reader has a metal base with tapped holes and rubber feet, and can be Velcro mounted. Multi-colored LED (not on TTL). The cable can exit at the end, side or straight down. Options include visible or infrared barcode scanning; as well as TTL, RS-232, keyboard wedge (AT/XT, PS/2, or Mac), Weigand or USB interface options.

The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.

Technical Information:

• Number of Read Heads: 2
• Magnetic Stripe Track Configuration: Triple Track
• Magnetic Stripe Track Number:

1. Track 1
2. Track 2
3. Track 3

• Minimum Swipe Speed: 3 in/s
• Maximum Swipe Speed: 60 in/s
• Number of Swipes (Head Life): 1000000

• USB: Yes

Shipping Notes:

All our ID Tech products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, California 91016 (Most usual)
• Southaven, Mississippi 38671
• Greenville, South Carolina 29601
