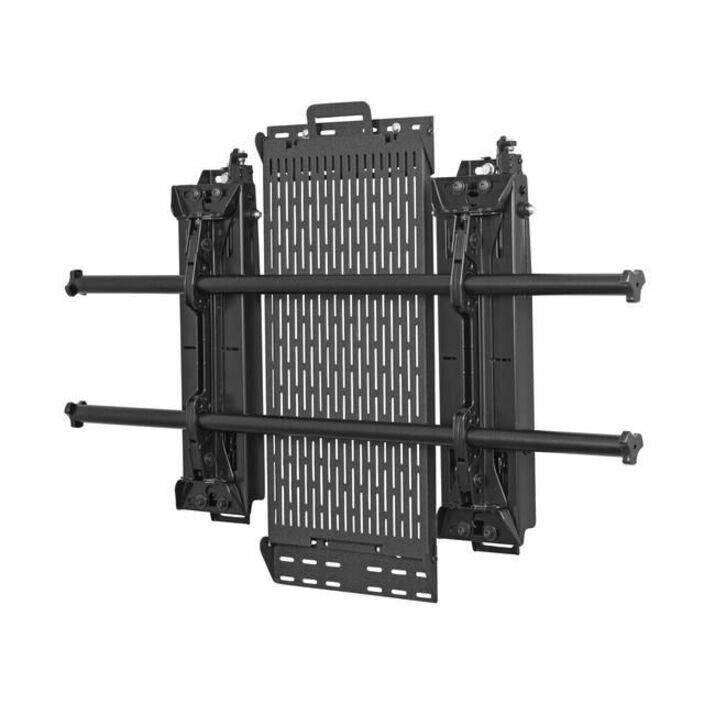

Chief LSM1U Fusion Adjustable Wall Display Mount 42"-86" 200 lb Height Adjust

General Information

• Manufacturer: Legrand Group
• Manufacturer Part Number: LSM1U
• Brand Name: Chief
• Product Line: Fusion Wall Fixed
• Product Model: LSM1U
• Product Name: Large Fusion Micro-Adjustable Fixed Wall Display Mount
• Product Type: Wall Mount

Marketing Information:

The Chief Fusion micro-adjustable fixed display wall mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution and includes new benefits of added stability, faster install, improved lateral shift, easier cable management and enhanced security.

The integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall and Control Zone Leveling for post-installation fine tuning of height and leveling.

Feel confident in your installation with Chief's ClickConnect technology that offers an audible click when the screen safely engages with the mount and set screws to keep the mount rigid, stable and secure throughout the life of installation.

Built in cable stand provides easy access under the screen.

Product Information

• Device Supported: Flat Panel Display
• Number of Displays Supported: 1
• Maximum Load Capacity: 200 lb
• Minimum Screen Size Supported: 42"
• Maximum Screen Size Supported: 86"
• Features:
  • Cable Management
  • Lateral Adjustment
  • Leveling System
  • Flexible
• Height Adjustable: Yes

Physical Characteristics

• Product Color: Black
• Mounting Pattern:
  • 100 x 100
  • 871 x 500
• Height: 18.3"
• Width: 34.8"
• Depth: 2"

Package Contents:

• Large Fusion Micro-Adjustable Fixed Wall Display Mount
• Hardware Kit

Certifications & Standards: UL

Country of Origin: China

Limited Warranty: 10 Year from Chief
