Chief RLF3 Large Fixed TV Display Wall Mount 43"-86" VESA up to 200lbs Black

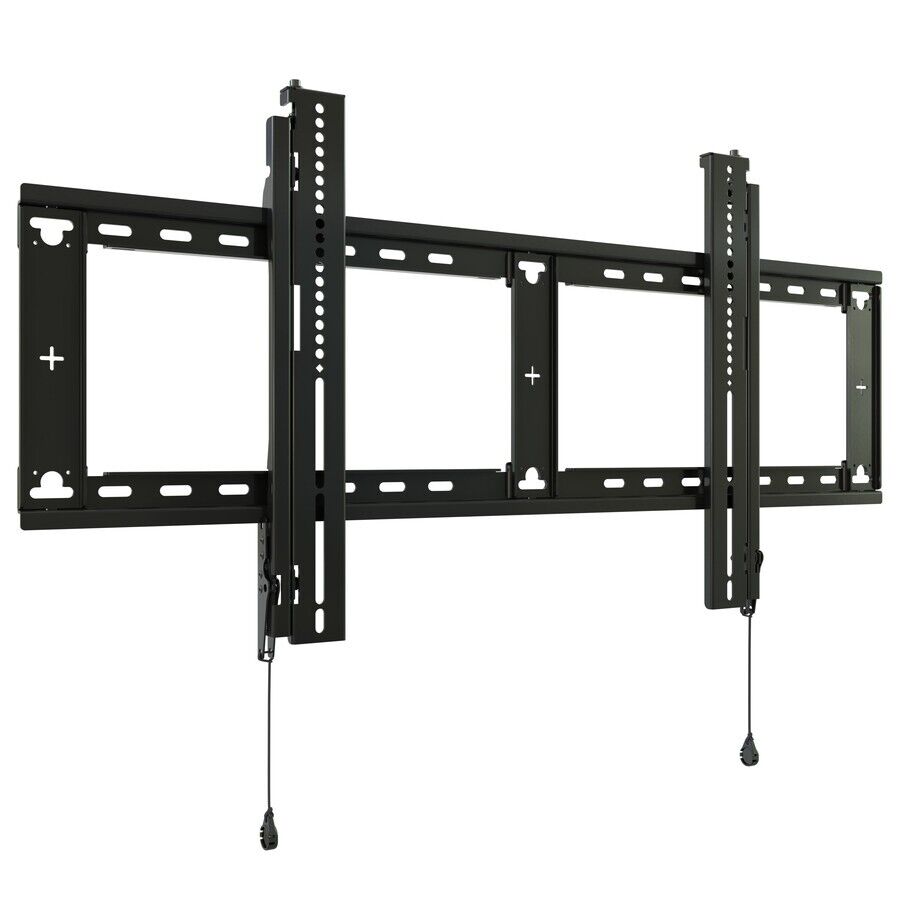

The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.

• Low profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 960 x 450 mm
• Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security options (not included)
• UL and TUV safety standards compliant

DIMENSIONS & MEASUREMENTS

• Depth: 1 in (2.5 cm)
• Height: 19.19 in (48.7 cm)
• Manual Height Adjustment: 0.75 in (19.1 mm)
• Minimum Depth: 1 in (2.5 cm)
• Overall Dimensions: 19.19" x 38" x 1" (559 x 965 x 25mm)
• Shipping Weight: 14.88 lbs (6.8 kg)
• Typical Screen Size: 43"- 86" (1092mm - 2184mm)
• Wall Stud Compatibility In: Dual Stud
• Weight Capacity: 200 lbs (90.7 kg)
• Width: 38 in (96.5 cm)

CHARACTERISTICS & FEATURES

• Adjustability: Fixed
• Application: Wall
• Color: Black
• Orientation: Landscape
• Solution Type: Universal
• VESA Mounting Pattern: 100 x 100 mm up to 960 x 450 mm

CERTIFICATIONS

• TUV
• UL Listed
