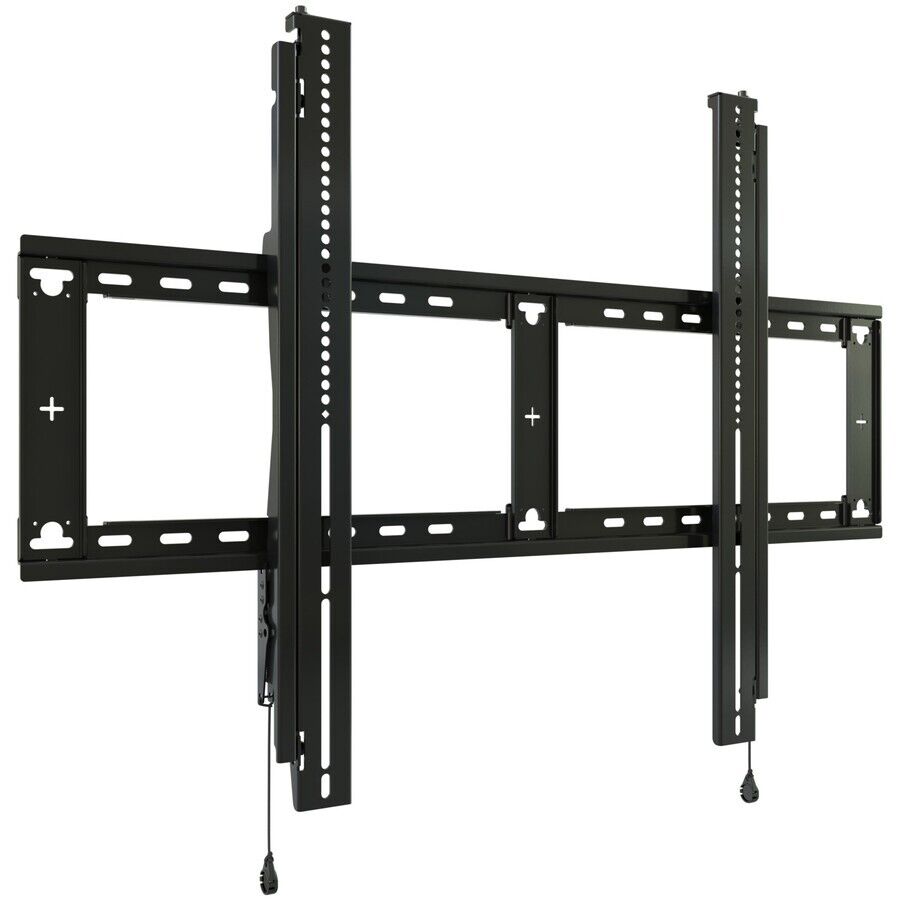

Chief RXF3 X-Large Fixed TV Display Wall Mount 49"-98" VESA up to 250lbs Black

The Fit series RXF3 is an extra-large fixed display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5” (38 mm) low-profile depth, and UL and TUV safety standard approvals.

• Low profile 1.5” (38 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 960 x 650 mm
• Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security option (not included)
• UL and TUV safety standards compliant

DIMENSIONS & MEASUREMENTS

• Depth: 1.5 in (3.8 cm)
• Height: 27.05 in (68.7 cm)
• Manual Height Adjustment: 0.75 in (19.1 mm)
• Minimum Depth: 1.5 in (3.8 cm)
• Overall Dimensions: 27.05” x 38” x 1.5” (687 x 965 x 39 mm)
• Shipping Weight: 17.42 lbs (7.9 kg)
• Typical Screen Size: 49" - 98" (1245mm - 2489mm)
• Wall Stud Compatibility In: Triple 16" (406 mm)
• Weight Capacity: 250 lbs (113.4 kg)
• Width: 38 in (96.5 cm)

CHARACTERISTICS & FEATURES

• Adjustability: Fixed
• Application: Wall
• Color: Black
• Orientation: Landscape
• Solution Type: Universal
• VESA Mounting Pattern: 100 x 100 mm up to 960 x 650 mm

CERTIFICATIONS

• TUV
• UL Listed

SHIPPING NOTES:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fresno, CA 93725
• Newman, GA 30265
• Bolingbrook, IL 60490
• Middletown, PA 17057
• Harrisburg, PA 17112

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov
