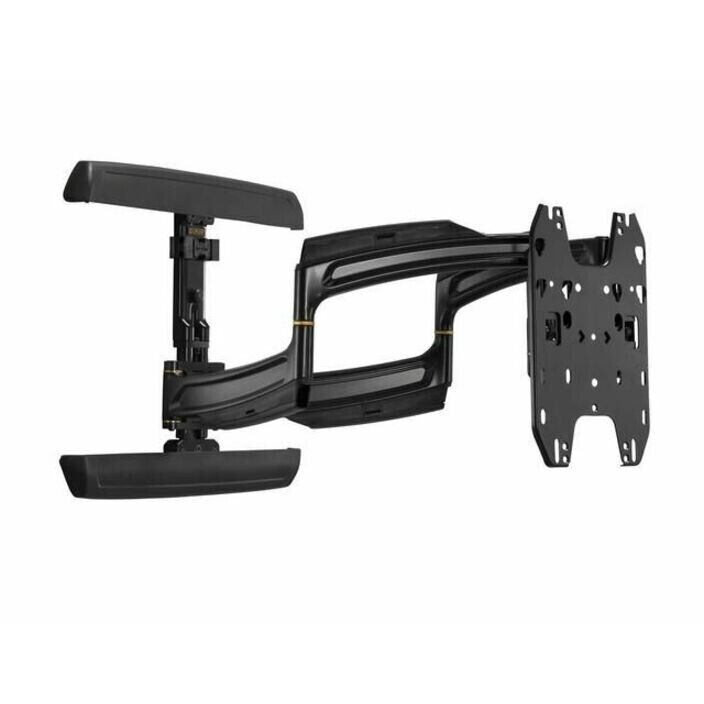

Chief TS325TU Thinstall 25" Dual Arm Extension Single TV Wall Mount 32"-65" 75lb

General Information

• Manufacturer: Legrand Group
• Manufacturer Part Number: TS325TU
• Brand Name: Chief
• Product Line: Thinstall
• Product Model: TS325TU
• Product Name: Thinstall TS325TU Medium Dual Swing Arm Wall Mount

Marketing Information:

• The Chief dual arm wall mount allows for perfect flat panel display placement and extends up to 25" for viewing from any angle while remaining low-profile in home position. The screen of this dual arm mount can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look for this tv mount.
• Product Type: Mounting Arm

Product Information

• Device Supported: Flat Panel Display
• Number of Displays Supported: 1
• Maximum Load Capacity: 75 lb
• Minimum Screen Size Supported: 32"
• Maximum Screen Size Supported: 65"
• Maximum Adjustable Height: 1"
• Maximum Adjustable Depth: 25.70"
• Features: Tilt
• Height Adjustable: Yes

Physical Characteristics

• Product Color: Black
• VESA Mount Compatible: Yes
• Mounting Pattern:
• 100 x 100
• 600 x 400
• Height: 17.2"
• Width: 29.5"
• Depth: 1.3"
• Weight (Approximate): 31 lb
• Package Contents:
• 1 x Main Assembly
• 1 x Wall Rail
• 1 x Right Upright
• 1 x Left Upright
• 1 x Top Interface Support
• 1 x Bottom Interface Support
• 2 x Wall Rail Cover
• 1 x Rag Screw Cover
• 1 x Bumper
• 1 x Latch Spacer
• 2 x Long Adhesive
• 4 x Short Adhesive
• Mounting Hardware
• Application/Usage:
• Flat Panel Display

Additional Information:

• Ultra Low Profile Sleek design collapses to 1.3" (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
• Extends up to 25" (635 mm) Full extension maximizes viewing potential
• Centris low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
• Centerless Lateral Shift Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability
• Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
• Orientation: Landscape
• Solution Type: Universal
• Tilt: +,- 15
• Compatibility:
• LCD Screen
• LED Screen
• Plasma Screen
• Recycled: Yes
• Post-consumer-waste%: 30%

• Country of Origin: China

• Limited Warranty: 10 Year from Legrand
