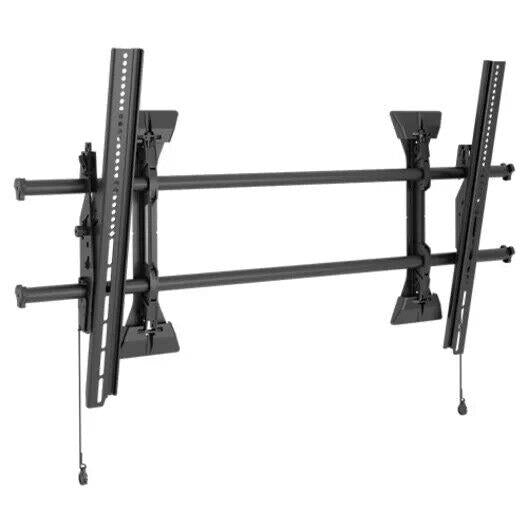

Chief XTM1U-G Fusion X-Large Tilt Wall Mount 55"-100" VESA up to 250lbs TAA BLCK

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

DIMENSIONS & MEASUREMENTS

• Depth: 2.5 in (6.4 cm)
• Height: 24.5 in (62.2 cm)
• Manual Height Adjustment: 1 in (25.4 mm)
• Maximum Screen Thickness: 6" (152mm)
• Minimum Depth: 2.5 in (6.4 cm)
• Overall Dimensions: 24.5" x 42.75" x 2.5" (622 x 1086 x 64 mm)
• Shipping Weight: 27.24 lbs (12.4 kg)
• Typical Screen Size: 55" - 100" (1397mm - 2540mm)
• Wall Stud Compatibility In: 24" - 42" (610mm - 1067mm)
• Weight Capacity: 250 lbs (113.4 kg)
• Width: 42.75 in (108.6 cm)

CHARACTERISTICS & FEATURES

• Adjustability
  • Height Adjustable
  • Lateral Shift
  • Micro-Adjustable
  • Tilt
• Application: Wall
• Color: Black
• Number of Displays: 1
• Orientation: Landscape
• Solution Type: Universal
• Tilt: +5° / -12°
• VESA Mounting Pattern: 100 x 100 mm - 1070 x 600 mm

CERTIFICATIONS & WARRANTIES

• OSHPD
• TAA
• UL Listed

SHIPPING NOTES:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fresno, CA 93725
• Newman, GA 30265
• Bolingbrook, IL 60490
• Middletown, PA 17057
• Harrisburg, PA 17112

International orders may take an additional 2 to 3 days.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov
