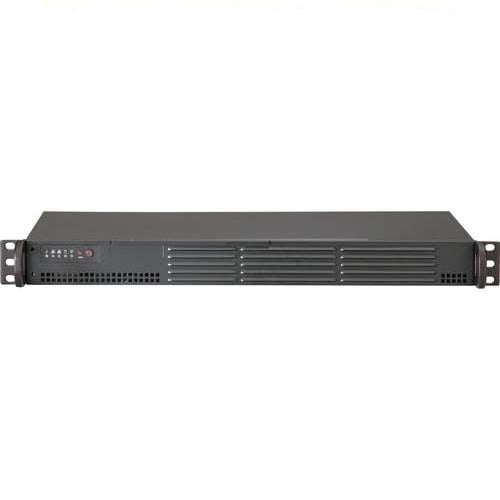

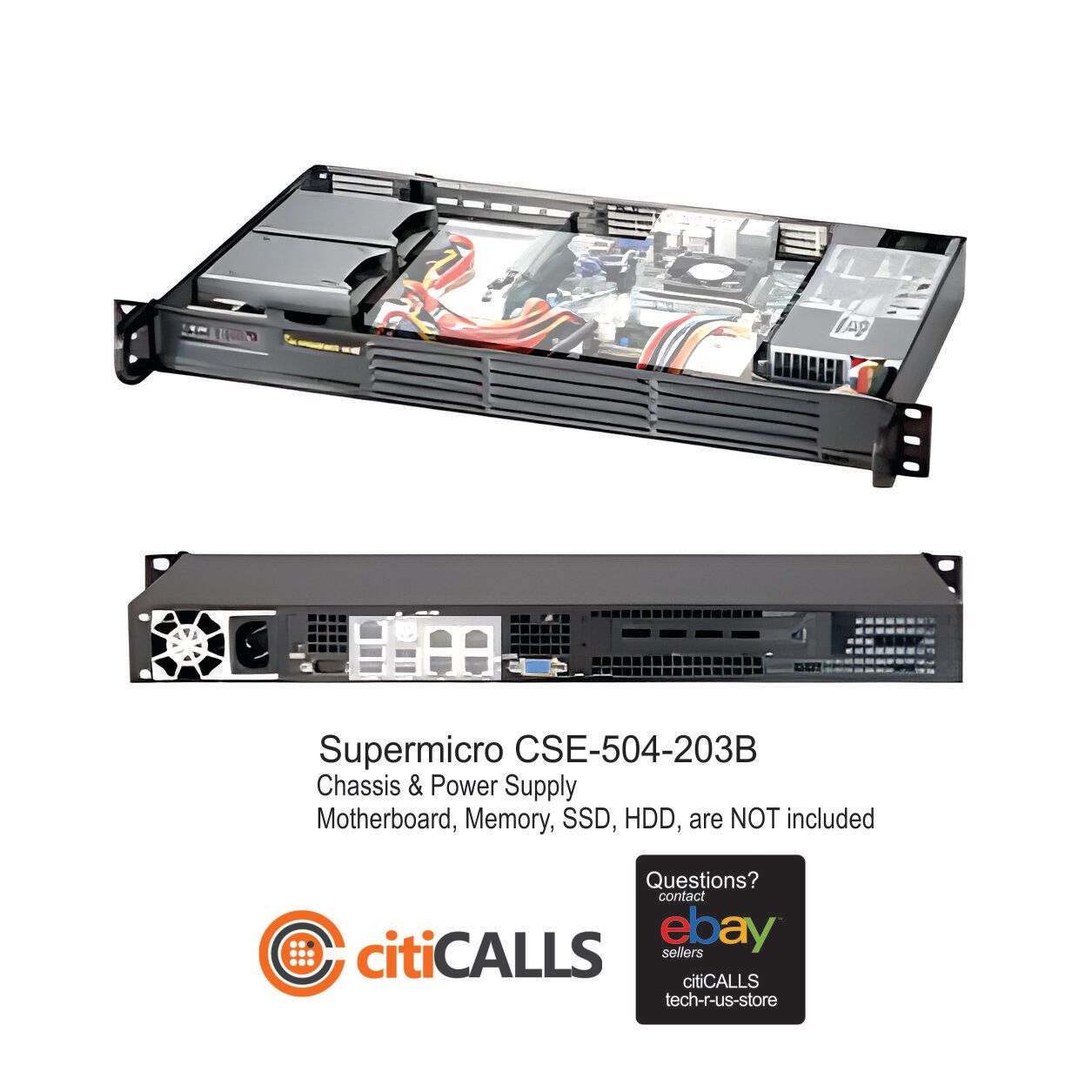

Supermicro CSE-504-203B Case Mini 1U 9.8inch 200W 80PLUS 1x3.5inch Black

Key Features

• Mini 1U Chassis
• 200W High-efficiency Power Supply Gold Level Certified
• Rear I/O Ports
• 1x 3.5" Internal Drive Bay with 1x Full-height, Half-length PCI
  • OR 2x 3.5" Internal Drive Bay
  • OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI
  • OR 4x 2.5" Internal Drive Bay
• Power Switch, Reset Button and 5x LED Indicators

The CSE-504-203B is for the 1U CHASSIS Case with 200W 80Plus Power Supply.

• Motherboard and other components are NOT included.
• The Photo shown is for illustration purposes only

Product SKU:

• SuperChassis: CSE-504-203B
• Form Factor: 9.8" Mini 1U chassis support for maximum motherboard size: Mini-ITX 6.75" x 6.75"

Processor Support:

• Intel® processors, up to 35W

Dimensions

• Height: 1.7" (43 mm)
• Width: 17.2" (437 mm)
• Depth: 9.8" (249 mm)
• Gross Weight: 10 lbs (4.54 kg)
• Packaging (W x H x L):  25.8" (655 mm) x 6.1" (155 mm) x 18.3" (465 mm)
• Color: Black

Expansion Slots: Up to 1x Full-height, Half-length expansion slot(s) (Riser Card Required, See 'Drive Bays' for possible configurations)

Drive Bays:

• 1x 3.5" Internal drive bay with 1 Full-height, Half-length PCI
  • Or 4x 2.5" Internal drive bay
  • Or 2x 2.5" Internal drive bay with 1 Full-height, Half-length PCI
  • Or 2x 3.5" Internal drive bay
• Only SAS or enterprise SATA HDD recommended

Front Panel

• Button:
  • Power On/Off button
  • System Reset button
• LED:
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
• Ports
  • 1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse

• Fans: 1x High-efficiency power supply with thermal control fan(s)

Operating Environment (System)

• Operating Temperature Range: 5°C - 35°C (41°F - 95°F)
• Non-Operating Temperature Range: -40°C - 60°C (-40°F - 140°F)
• Operating Relative Humidity Range: 8% - 90% (non-condensing)
• Non Operating Relative Humidity Range: 5% - 95% (non-condensing)

Power Supply (Included)

• 1U 200W Multi-output power supply Gold level w/20pin
• Power Efficiency: 91%
• Total Output Power and Input: 200W with Input 100 - 240Vac
• AC Input Frequency: 50-60Hz
• Dimensions (L x W x H): 192 x 76 x 40.3 mm
• Output Type: 20pin ATX
• -12V: Max: 0.5A / Min: 0A
• +12V: Max: 16A / Min: 0.1A (100Vac - 240Vac)
• +5V: Max: 8A / Min: 0.1A
• +3.3V: Max: 8A / Min: 0.1A
• +5Vsb: Max: 2A / Min: 0A

Regulatory (Power Supply), Power Supply Safety / EMC

• BSMI
• CCC
• CE/EMC
• FCC class B
• TUV/CB
• UL/CUL
