Algo 1203 Call Switch LED Button for Emergency Alerting, Notification
$160.00 USD $160.00 USD
Shipping calculated at checkout.
In stock: 3
Description
Product Overview:

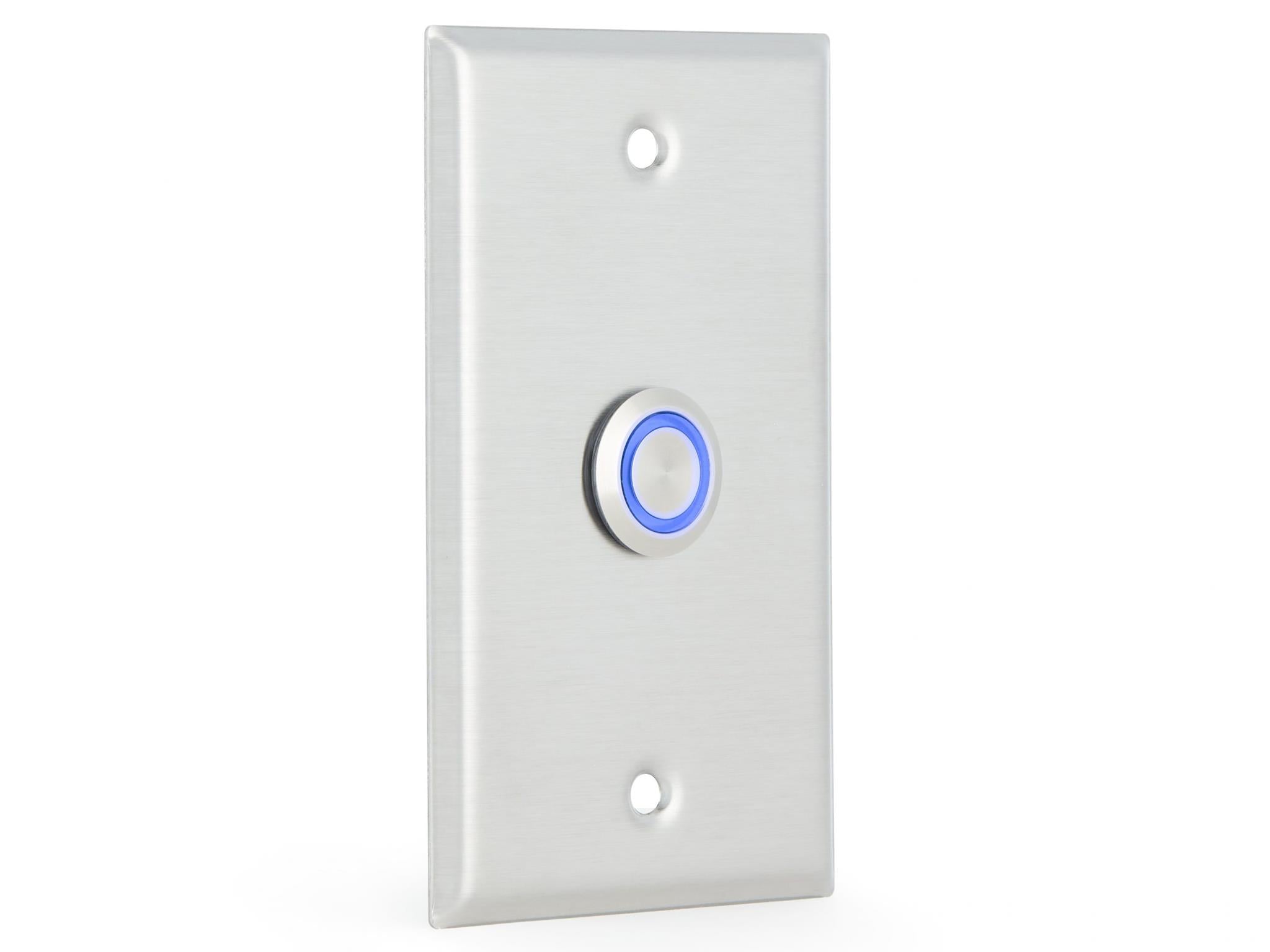

Algo 1203 Call Switch LED Button
Call Switch LED Button for Emergency Alerting, Notification & Customer Assistance
The Algo 1203 Call Switch is a single gang illuminated LED button for alerting with any Algo IP speaker, IP strobe light or 8301 paging adapter. For any application requiring one-touch programmable announcement or alert notification, the 1203 is designed as a simple and intuitive interface for emergency and non-emergency alerting or for improving customer service.
When configured with a compatible Algo IP endpoint for button-press activation, the 1203 initiates one of the following actions:
  • Multicast an alert or announcement.
  • Make a SIP call to a configured extension to play a discreet notification when the call is answered.
  • Make a SIP call to a configured extension and permit hands-free two-way communication (e.g. via the Algo IP speaker microphone).
About the 1203 Call Switch
The 1203 is a LED backlit switch in a single gang stainless steel faceplate that
connects to compatible Algo SIP endpoints. The functionality of the switch is
determined by the configuration of the SIP endpoint to which it is connected.
Typical applications for the 1203 Call Switch are:
• To initiate a multicast alert or announcement from the attached SIP endpoint
• Make a SIP call from the attached SIP endpoint to a preconfigured extension
and either play a notification or permit hands-free communication (for
endpoints equipped with a microphone).
The 1203 Call Switch connects to the 'Relay Input' port of the SIP Endpoint. This port
is capable of detecting a dry contact closure (normally open or normally closed) for
which the input is named. However, the electronic circuitry in the endpoint is also
capable of providing power to illuminate a call switch and measure external
resistance to detect wire faults and multi-state events.
Compatibility
The 1203 is compatible with the following Algo SIP Endpoints (running firmware v1.3
or higher):
  • 8128 SIP Strobe Light (G2)
  • 8180 SIP Audio Alerter (G2)
  • 8186 SIP Horn Speaker
  • 8188 SIP Ceiling Speaker
  • 8189 SIP Speaker Surface Mount
  • 8190 SIP Speaker/Clock
  • 8301 SIP Paging Adapter

Shipping Notes:

All our Algo products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, California 91016 (Most usual)
  • Southaven, Mississippi 38671
  • Greenville, South Carolina 29601

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Visit www.P65Warnings.ca.gov
