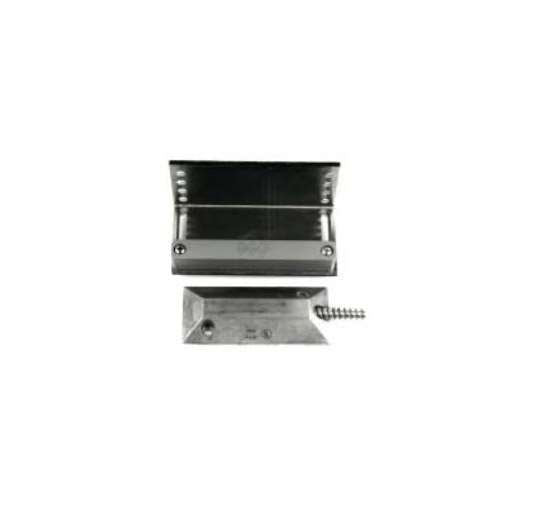

GRI 4532L Floor Mount Miniature Overhead Door Switch Set

Product Overview:
Mini Floor Mount/2’ Armored Cable/Closed Loop/With 4175 Bracket and M-15 Magnet

The 4532 is a miniature, low-profile reed switch in cast aluminum for durability in harsh environments. The 4532 features a wide working gap of up to 3" with two feet of heavy-duty armored cable for protection from the elements and a versatile universal magnet which can be mounted at various angles for those difficult installations. The 4532 is also available with an optional "L" bracket. Order part number 4532L for this option. The 4532 is shipped as a set but can be packaged separately.

Main Features:

• The 4532L series Overhead Door Switch Set is a miniature, low-profile reed switch in a cast aluminum for durability in harsh environments
• The 4532L features aWideWorking gap of up to 2 with two' of heavy duty armored cable for protection from the elements and a versatile universal magnetWhich can be mounted at various angles for those difficult installations
• The 4532L series is equipped with an L bracket
• Max Initial Contact Resistance: .150
• Max Contact Rating: 10W
• 200 VDC
• Max Switching Current: .250 A

---
