Broadcom BCM957504-M1100G16 NT 100Gb s PCIEv3.0 x16 OCP 2.0 Mezzanine Card

Marketing Information

BCM957504-M1100G16
Single-Port 100 Gb/s Ethernet PCI Express v3.0 x16 OCP 2.0 Mezzanine Card
Overview

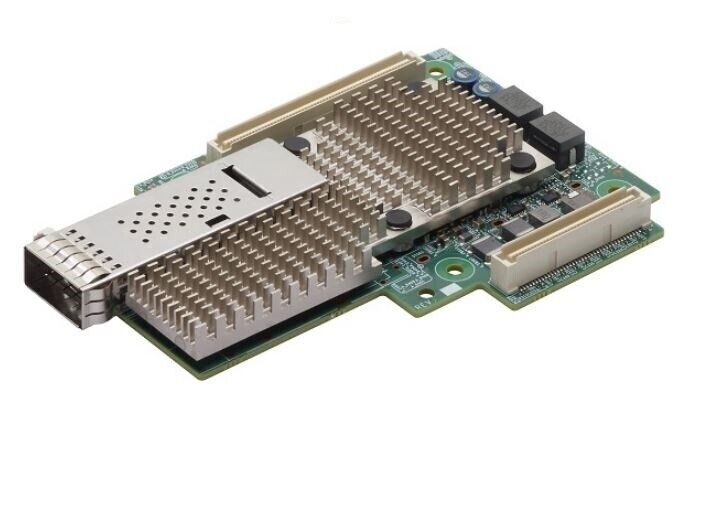

The Broadcom BCM957504-M1100G16 is a single-port 100 Gb/s PCI Express v3.0 x16 network adapter card designed to the Open Compute Project (OCP) mezzanine card specification with a QSFP56 network connector. The adapter is designed to the OCP Mezzanine v2.0 specification as a Type 2 adapter with the board outline adhering to the original v0.5 dimensions. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated 100GbE SFI transceiver.
Features
Pluggable media interface, which is compatible with a QSFP56/QSFP28/QSFP+ optical transceiver or a copper direct-attach cable.
Industrys most secure PCIe adapter solution leveraging Broadcoms BroadSAFE technology
Supports 50G PAM-4 and 25G NRZ signaling.
Fully compliant with the SFF-8402 standard.
PCI Express v3.0 x16 compliant.
SR-IOV with up to 1k virtual functions (VFs).
Function-Level Reset (FLR) support.
TruFlow flow processing engine.
Virtual Network Termination VXLAN, NVGRE, Geneve, GRE encap/decap.
vSwitch Acceleration
.Tunnel-aware stateless offloads.
DCB support PFC, ETS, QCN, DCBx.
RDMA over Converged Ethernet (RoCE)
Network Controller Sideband Interface (NC-SI).
SMBus 2.0.
MCTP over SMBus.
Jumbo frames up to 9 KB.
Advanced congestion avoidance.
Multiqueue, NetQueue, and VMQ.
IPv4 and IPv6 offloads.
