D-Link DPE-301GI Accessory 1Port Gigabit PoE Injector Retail
Regular price
$47.93 USD
Sale price
$47.93 USD
Regular price
$0.00 USD
Description
Couldn't load pickup availability
D-Link DPE-301GI Accessory 1Port Gigabit PoE Injector Retail
Current product
Current
Vendor:
D-Link
D-Link DPE-301GI Accessory 1Port Gigabit PoE Injector Retail
Regular price
$47.93 USD
Sale price
$47.93 USD
Regular price
$0.00 USD
Options
Descriptions
Vendor: D-Link
SKU: 175895MPN: DPE-301GI
Marketing Information

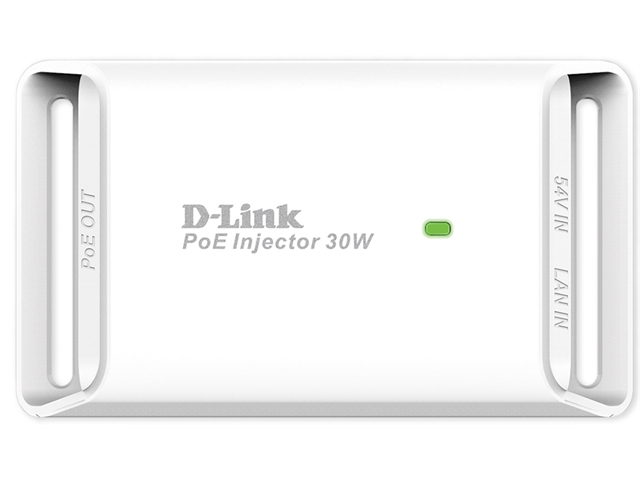

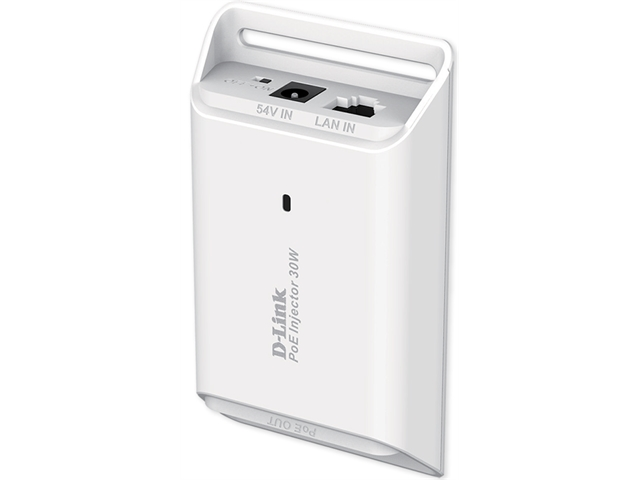

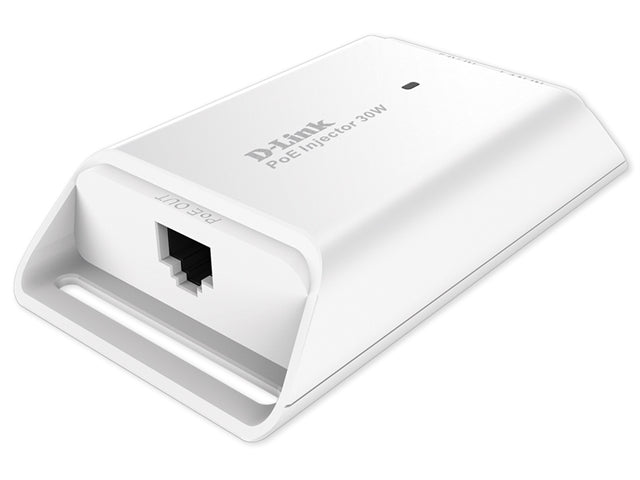

DPE-301GI PoE Injector
D-Link’s DPE-301GI 1-Port PoE Injector is used to provide I.T. Professionals with the benefits of Power over Ethernet (PoE), even when other devices in the network do not support it. With PoE technology, low voltage DC power and Ethernet data signals are combined on a single network cable, which facilitates powering of end devices like IP Cameras, wireless Access Points (APs), and VoIP Phones. This reduces cable clutter, eliminates the need for dedicated electrical outlets on the wall, ceiling, or other unreachable places, reduces installation time, and lowers costs.
The DPE-301GI device supports Gigabit speeds, and can connect to 10Mbps, 100Mbps or 1000Mbps through the RJ-45 interface. This device also supports the IEEE 802.3af and 802.3at PoE/PoE+ standards, which ensures interoperability with other standards-based PoE and PoE+ devices. Small and compact, the DPE-301GI is lightweight, has integrated mounting slots, and is easy to install.
The DPE-301GI provides a power and data connection to a PoE device over a single network cable. It allows I.T. Professionals to mount their PoE devices virtually anywhere in a building, such as on ceilings or near entryways, and eliminates the need for nearby power outlets and attached power supplies. The DPE-301GI combines electrical power with a Gigabit network connection and produces a Gigabit PoE signal, allowing a single Ethernet cable to carry both data and power to a device.
Detail Specifications
PORTS:
PoE and Data

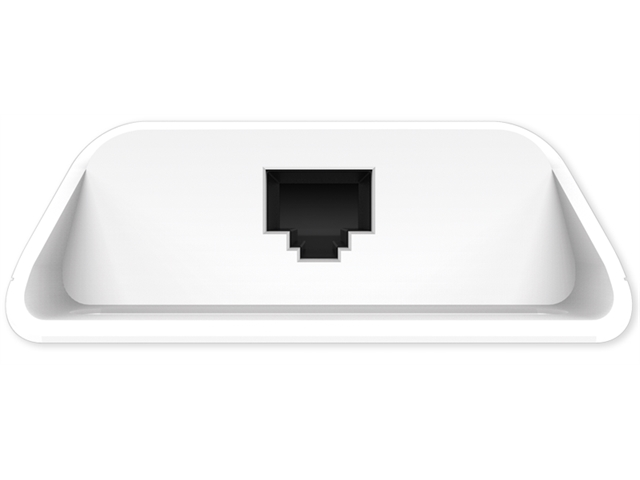

Label: PoE OUT
IEEE 802.3 / 10BASE-T
IEEE 802.3u / 100BASE-Tx
IEEE 802.3ab / 1000BASE-T
IEEE 802.3af / 802.3at
Half/full-Duplex operation
CSMA/CD
Data

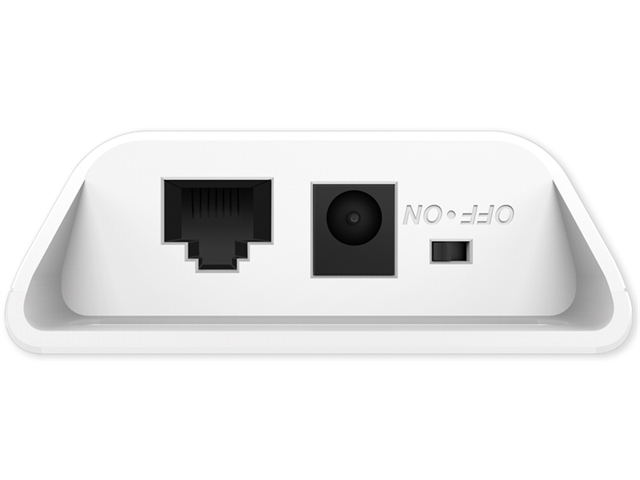

Label: LAN IN
IEEE 802.3 / 10BASE-T
IEEE 802.3u / 100BASE-Tx
IEEE 802.3ab / 1000BASE-T
Half/full-Duplex operation
CSMA/CD
PHYSICAL and ENVIRONMENTAL:
Temperature
Operating: 32 F to 122 F / 0 to 50 C
Storage: -22 F to 158 F / -30 C to 70 C
Humidity
Operating: 5% to 95% RH
Storage 5% to 95% RH
Power Consumption
Maximum: 32.4 Watts
LED Indicators
Blue: Power On
Green: Link On
AC/DC Power Adapter
AC Input: 100 to 240V 50/60Hz
DC Output: 54V /06A
Power Jack: 5.5mm (EIAJ-4) I-Type
PoE FEATURES:
Standards: IEEE 802.3af, IEEE 802.3at
Power Output
54V +/-2V 600mA
32.4 Watts Maximum
Emissions (EMI) and Safety Certifications
Certifications: CE, FCC, VCCI, RCM, RoHS, BSMI
Warranty Information
1 Year Limited - Direct from the Manufacturer
