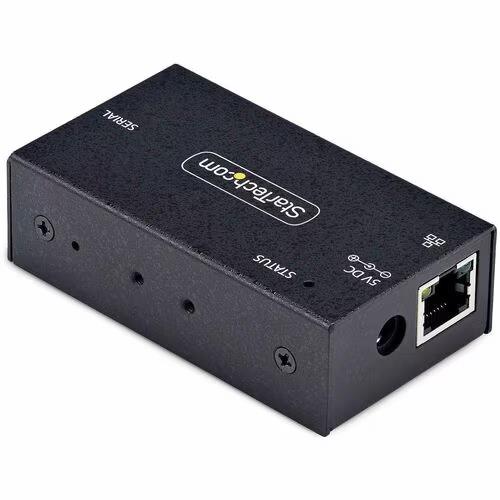

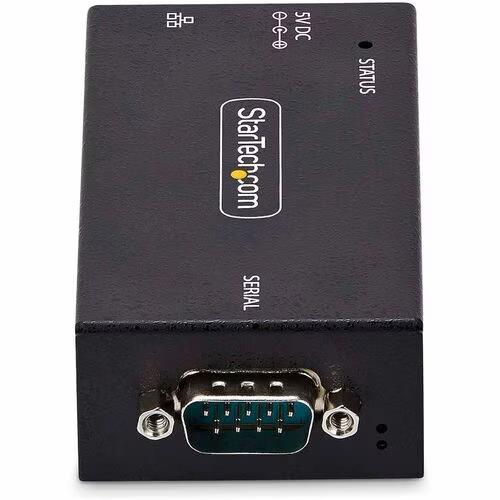

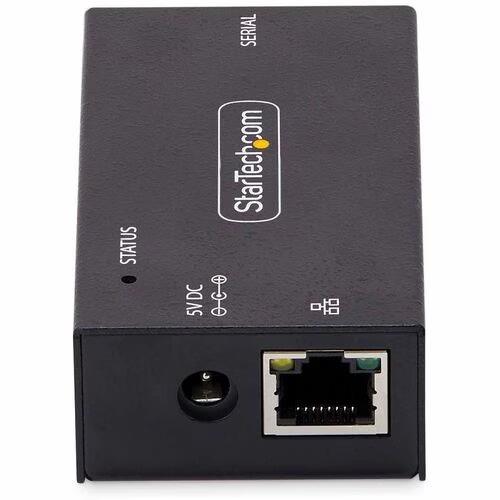

StarTech I13-SERIAL-ETHERNET Serial RS232 to IP Ethernet Device Server Adapter
$185.80 USD $185.80 USD
Shipping calculated at checkout.
In stock: 1
Description

1-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mountable, Metal Housing, RJ45 LAN to DB9 Serial Converter, TAA

Streamline RS-232 connectivity for serial device management over IP

Product ID: I13-SERIAL-ETHERNET

..

This 1-port serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

  • SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
  • UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
  • VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
  • ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
  • RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)

Connector(s)

Connector Type(s)
1 - DB-9 (9 pin, D-Sub)
1 - RJ-45
Connector A
1 - RJ-45
Connector B
1 - DB 9-pin Serial
Environmental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-20°C to 75°C (-4°F to 167°F)
Humidity
5~95% RH (Non-condensing)
Hardware
Ports
1
Interface
Serial
Industry Standards
IEEE 802.3u (100BASE-TX )
IEEE 802.3i (10BASE-TX)
EIA/TIA-232
Indicators
LED Indicators
1 - RJ-45
Right LED
Steady green: Ethernet connection
Blinking green: Activity
Off: Ethernet is not connected
2 - DB-9
Top LED Blinking green: Activity
Around DB-9 port
Top LED: Transmit data activity
Bottom LED: Receive data activity
Off: No activity
1 - Power LED
Steady green: Power is on
Off: Power is off
Blinking green: Restoring to factory settings
Packaging Information
Package Height
2.2 in [5.5 cm]
Package Length
9.5 in [24.2 cm]
Shipping (Package) Weight
1.1 lb [0.5 kg]
Package Width
6.5 in [16.6 cm]
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
7, 8
Flow Control
RTS/CTS , X-ON/X-OFF, None
Parity
None, Even, Odd, Mark, Space
Stop Bits
1, 2
Remote Management Ability
Yes
Surge Protection
ESD (Electrostatic Discharge) Level 4 Protection:

15kV IEC1000-4-2 Air
8kV IEC1000-4-2 Contact
Compatible Networks
10/100 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Supported Protocols
IP, Telnet RFC2217, TCP Server, TCP Client, and UDP
Physical Characteristics
Color
Black
Product Height
1.0 in [2.5 cm]
Product Length
1.8 in [4.6 cm]
Weight of Product
5.5 oz [155.0 g]
Product Width
3.2 in [8.2 cm]
Material
Steel
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.48A
Output Voltage
5V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
15W
Software
OS Compatibility
Virtual COM software supports Windows® only.
Compatible with Windows 8, 8.1, 10, 11
Special Notes / Requirements
Note
Note: The device server's hardware is compatible with macOS® and Linux®; however, the provided Virtual COM software is not compatible with these operating systems.
When used with macOS® and Linux®, the device server can only be configured using the WebUI.
What's in the Box
Included in Package
1 - 1-Port Serial Over IP Device Server
1 - Din Rail Kit
1 - Mounting Bracket
4 - Mounting Bracket Screws
1 - Universal Power Adapter
1 - Quick-Start Guide

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, CA 91016 (Most usual)
  • Fort Worth, TX 76155
  • Carol Stream, IL 60188
  • Moore, SC 29369
  • Hazelton, PA 18202

…MJ5
