StarTech MPO8LCPL3M 10Ft MTP(F)/PC to 4xLC/PC Breakout OM3 Multimode Fiber Cable

Regular price $174.83 USD Sale price $174.83 USD Regular price $174.83 USD
Shipping calculated at checkout.
Out of stock
Description

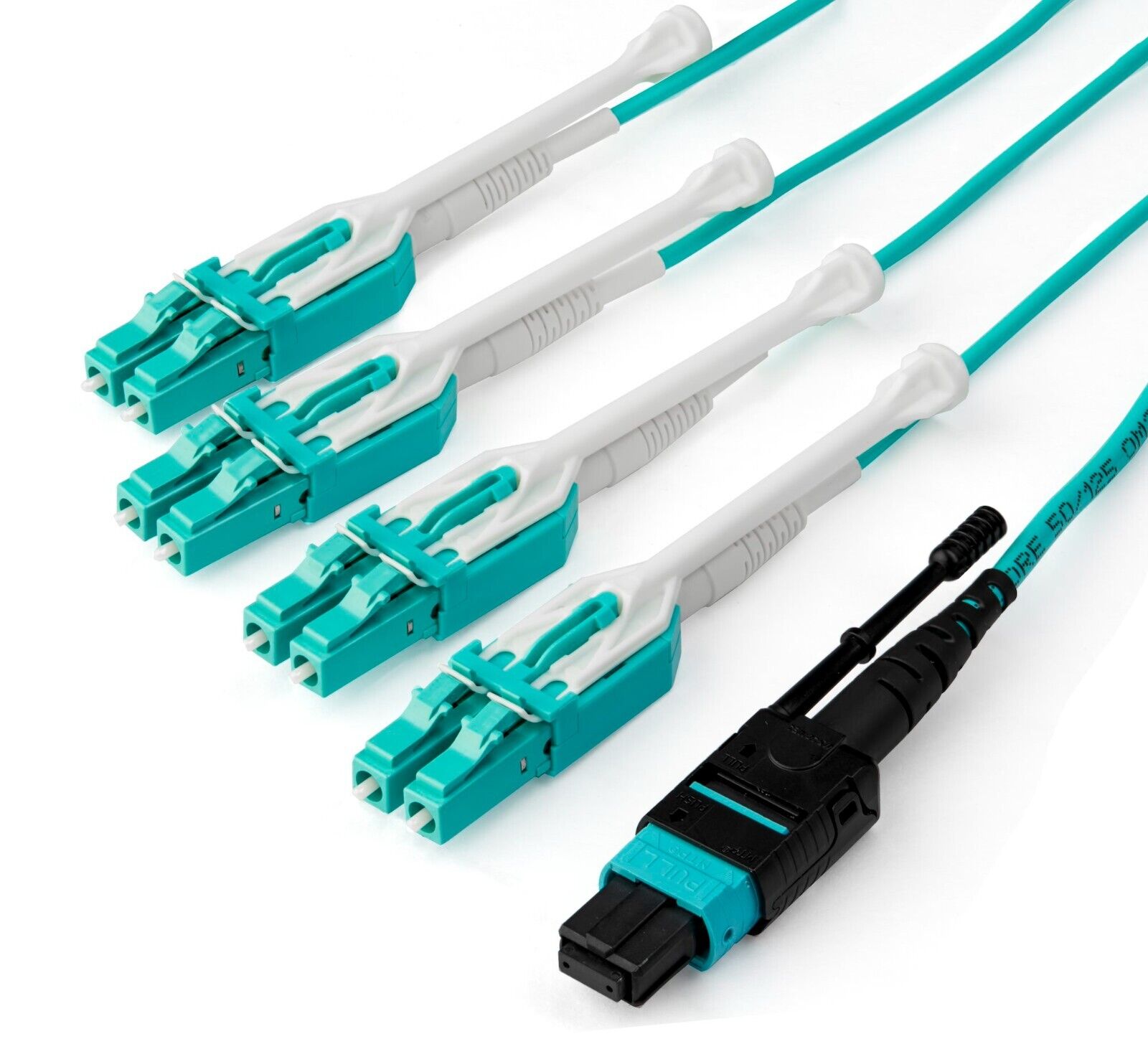

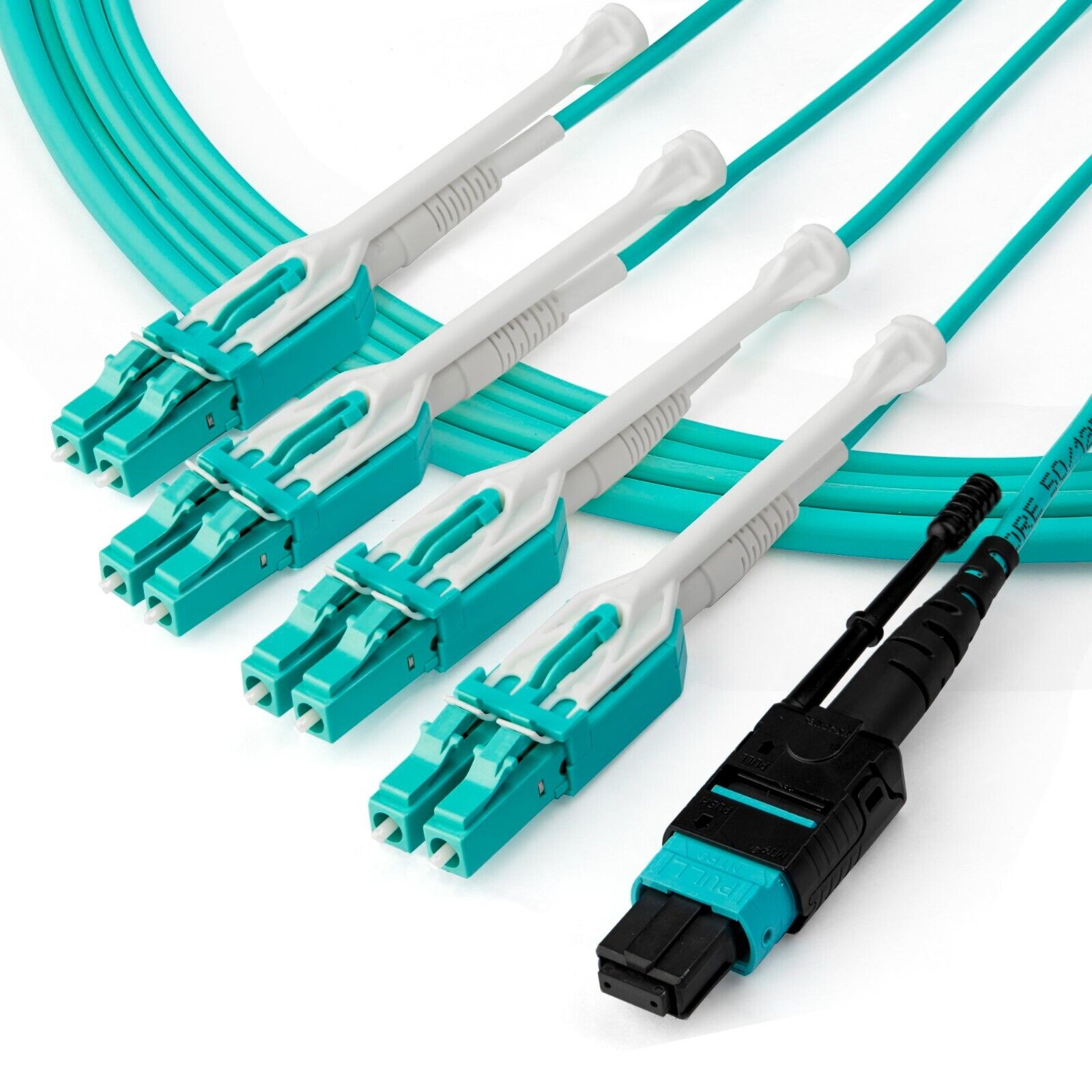

3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord

Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+

Product ID: MPO8LCPL3M

..

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

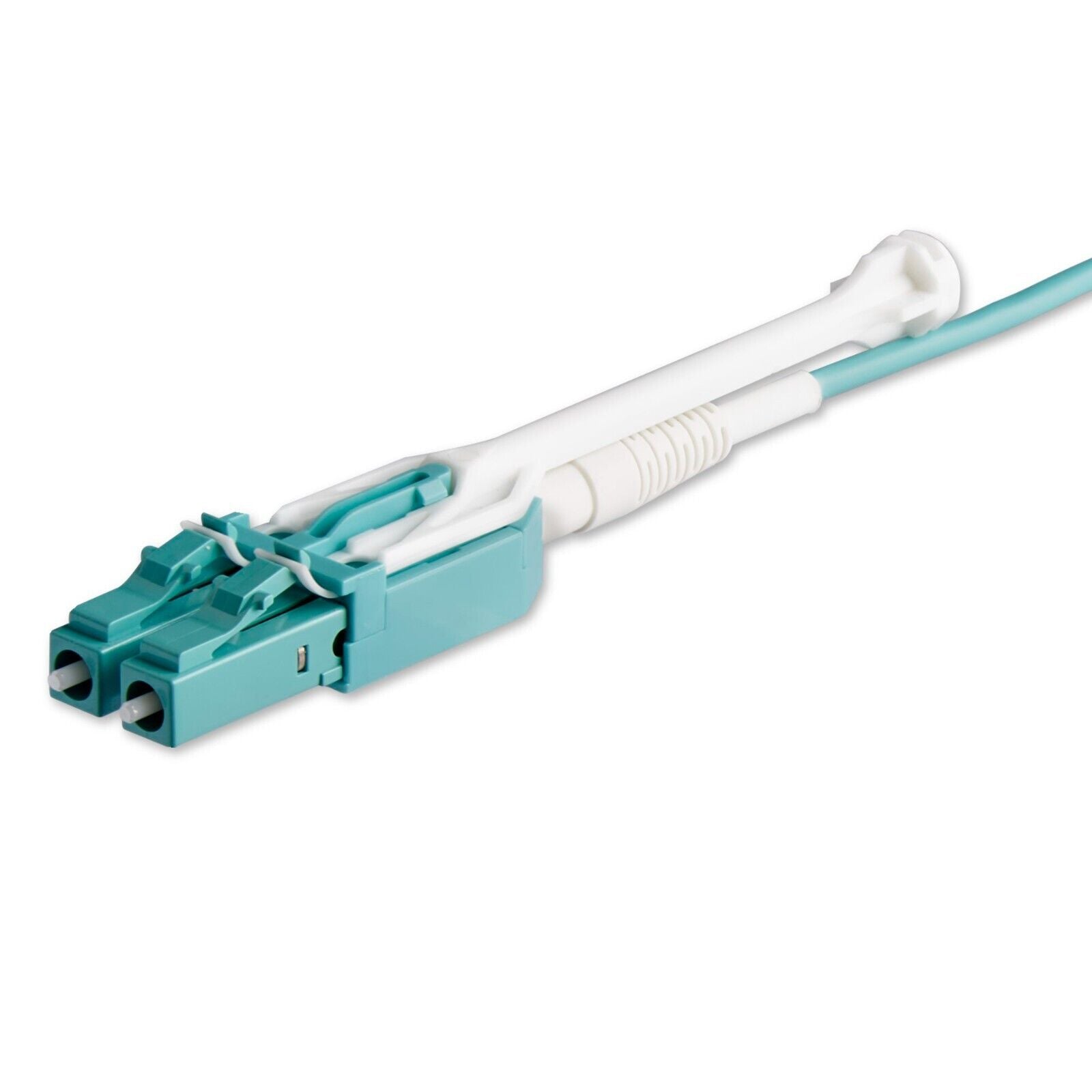

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

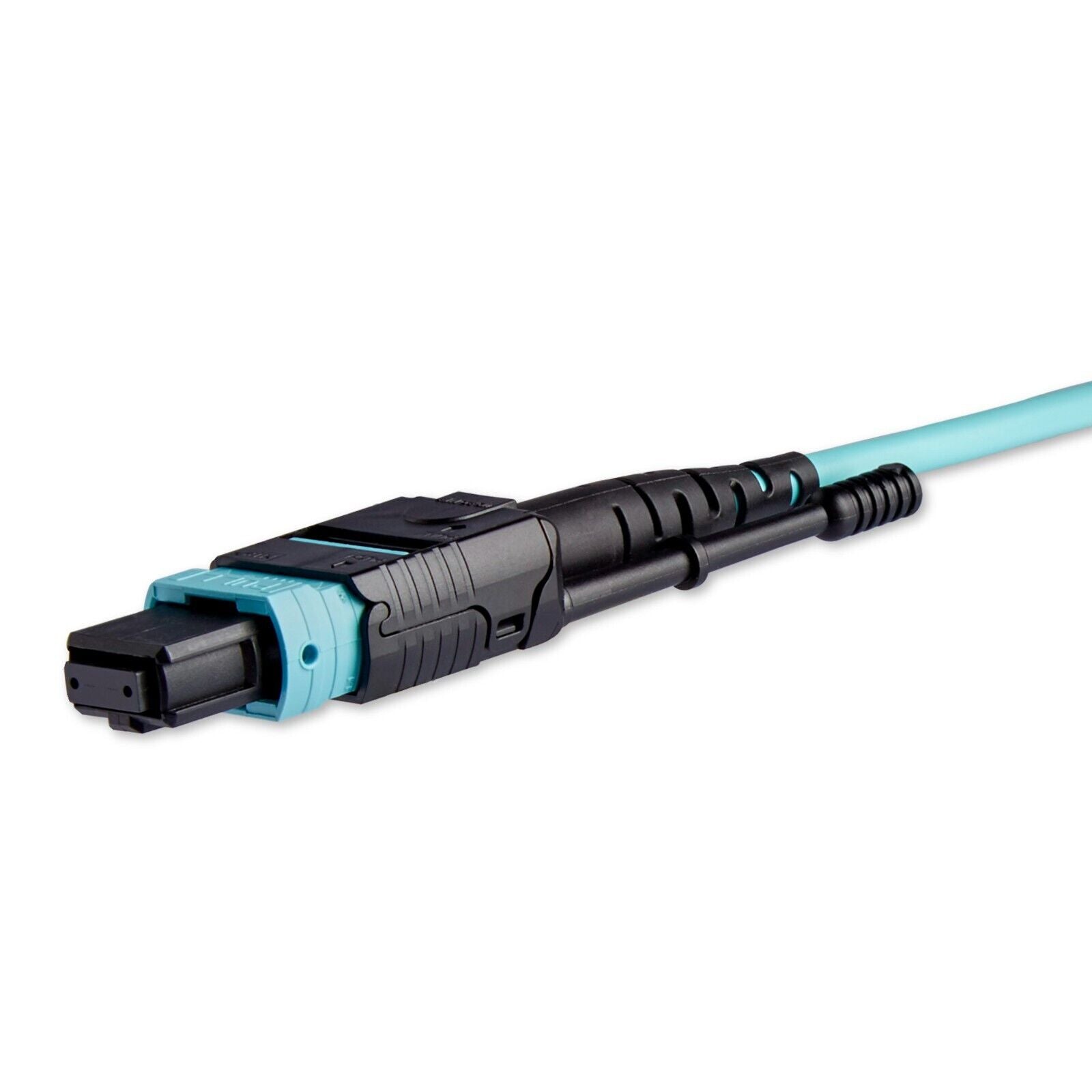

The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

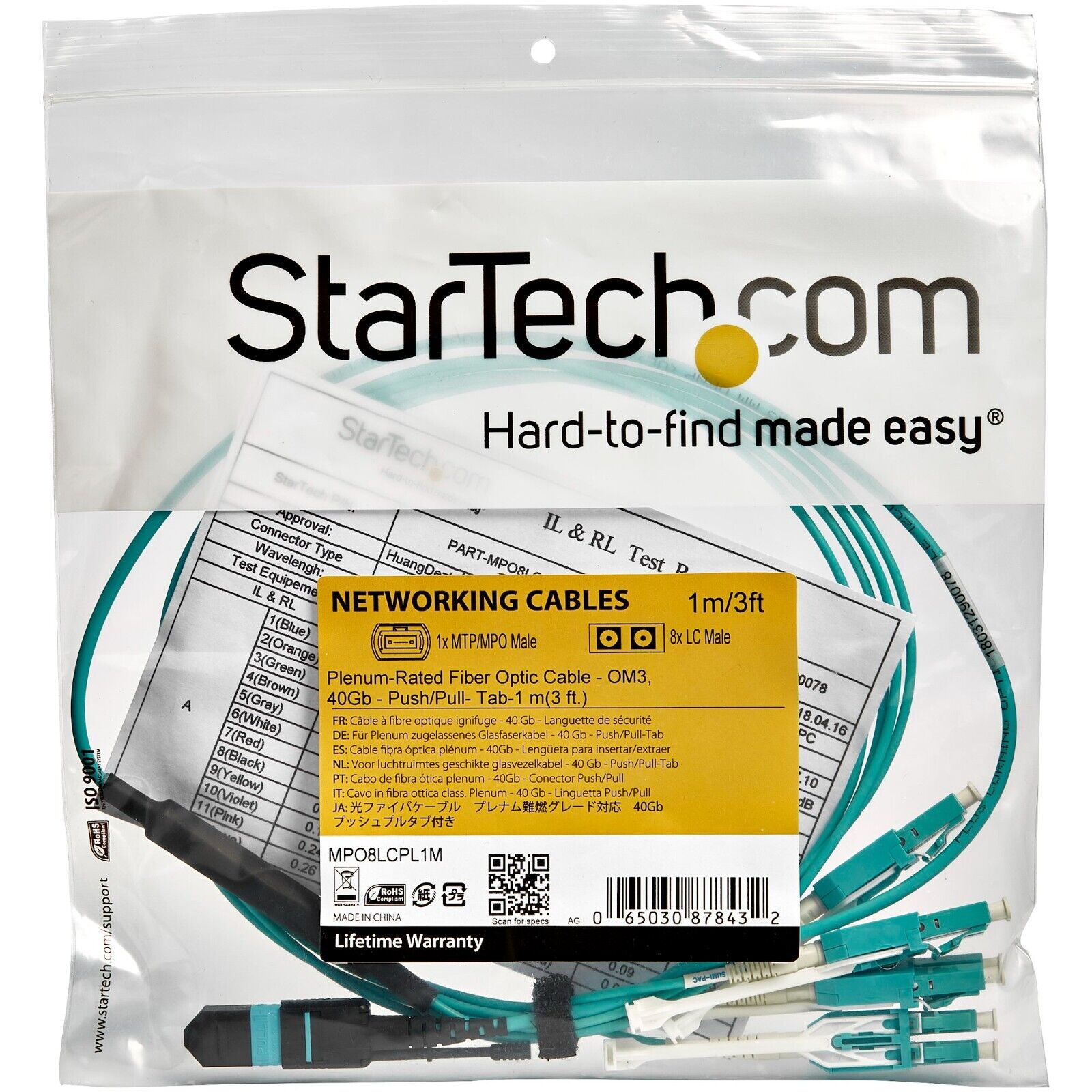

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

Warranty Information
Warranty
Lifetime

Connector(s)
Connector A
1 - MPO/MTP
Connector B
4 - Fiber Optic LC Duplex

Environmental
Operating Temperature
-10°C to 70°C (14°F to 158°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
55 ~ 65%RH

Hardware
Fiber Size
50/125

Packaging Information
Shipping (Package) Weight
2.2 oz [62.0 g]
Package Quantity
1
Package Length
7.9 in [20.0 cm]
Package Width
8.7 in [22.0 cm]
Package Height
0.4 in [1.0 cm]

Performance
Fiber Classification
OM3
Type
Multi Mode

Physical Characteristics
Color
Aqua
Cable Length
9.8 ft [3 m]
Product Length
9.8 ft [3.0 m]
Product Width
0.5 in [1.4 cm]
Product Height
0.3 in [0.8 cm]
Weight of Product
1.8 oz [52.0 g]

Website Filters
Fire Rating
OFNP Plenum Rated

What's in the Box
Included in Package
1 - fiber optic cable
