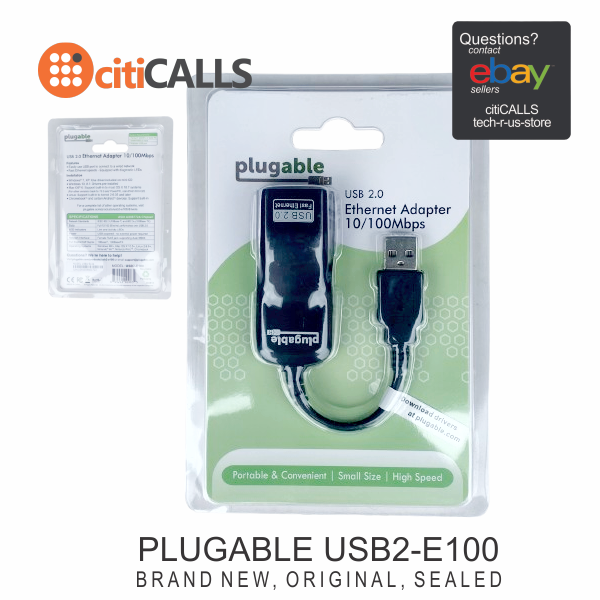

Plugable USB2-E100 USB 2.0 to Ethernet Fast 10/100 LAN Wired Network Adapter

General Information

Brand Name Plugable

Manufacturer Part Number USB2-E100

Manufacturer Plugable Technologies

Product Model USB2-E100

Product Name USB 2.0 to Ethernet Fast 10/100 LAN Wired Network Adapter

Product Type Fast Ethernet Card

Packaged Quantity 1

Marketing Information:

Features faster-than-wireless speeds and easy connectivity. The Plugable USB 2.0 to 10/100 Network Adapter adds a Fast Ethernet (RJ45) capable port to any supported system. It uses the ASIX AX88772 chipset for widest possible compatibility. Note the adapter is not for network enabling USB devices, rather it's the other way around - it's a USB device that adds a fast wired network interface to supported computers, consoles, and mobile devices running network-capable operating systems.Two LEDs monitor power and link activity. Powered by USB (no external power adapter needed).

If your computer or tablet has an micro USB port, please consider using Plugable USB2-OTGE100 Ethernet adapter.

Compatibility

Drivers built in -- no driver install required -- on Windows 11, 10 and 8.x, Nintendo Wii, Wii U, Linux 2.6.35 and newer, ChromeBook, Chumby, and some other systems. Driver download and install required for Mac OS 10.6 and newer. On Windows 7, Vista 32/64-bit drivers are automatically provided via Windows Update. Windows XP, 2000, ME, and 98SE require driver install via download or included disk. Source code/driver available for Linux kernels 2.6.9 - 2.6.34.

Not supported on ARM-based Windows, including Surface RT and Surface 2. Not compatible with Apple iOS or Amazon devices.

Performance

Wired Ethernet via this adapter provides faster and more reliable network access than typical 802.11 wireless networking (up to 2-3x as fast). Particularly helpful for web video, downloads, and streaming. Useful to replace a broken network port, participate on multiple networks, or give virtual machines their own physical network connection.

Features

FAST ETHERNET - Add a fast wired network interface to your system. Compatible with Windows 11, 10, 8.x, 7, Vista and XP. Wii, Wii U, Linux, ChromeOS, and some Android devices including the Nvidia Shield. Compatible with Nintendo Switch when using the dock

INSTALLATION - Automatic driver installation via Windows update on Windows 11, 10, 8.x, 7, Vista, and XP (with existing internet connection). Full 10/100 Mbps Fast Ethernet performance over USB 2.0's 480Mbps bus. Faster than most wireless connections

COMPATIBILITY - Windows 11, 10, 8.1/8 and Surface Pro series have built-in support. Windows 7, Vista, XP supported by Windows Update, disk, and download. Drivers built into Linux kernel 2.6.35 and newer, Wii, Wii U, Switch, ChromeOS, and some other systems. Windows RT (SurfaceRT) not supported, macOS not supported

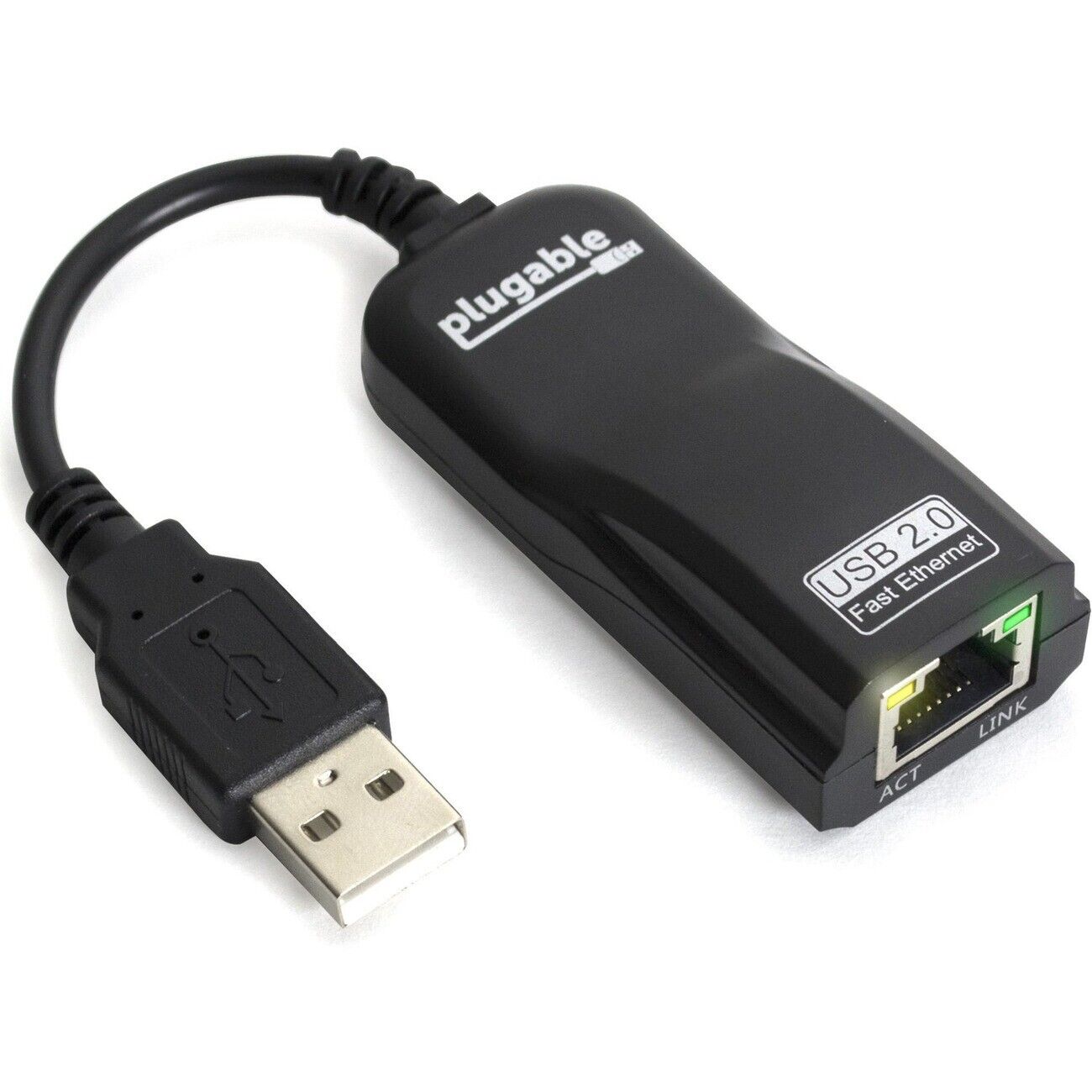

FEATURES - ASIX AX88772 chipset used for widest possible compatibility. RJ-45 port interfaces with any 10/100Mbps Ethernet network, Link and Activity LEDs, USB bus-powered

2 YEAR WARRANTY - We love our Plugable products, and hope you will too. All of our products are backed with a 2-year limited parts and labor warranty as well as Seattle-based email support

Technical Information

Chipset Manufacturer ASIX

Chipset Model AX88772

Interfaces/Ports

Host Interface USB 2.0

Number of Network (RJ-45) Ports 1

Total Number of Ports 1

Network & Communication

Network Technology 10/100Base-TX

Physical Characteristics

Form Factor Portable

Media & Performance

Data Transfer Rate 480 MB/s

Media Type Supported Twisted Pair

Miscellaneous

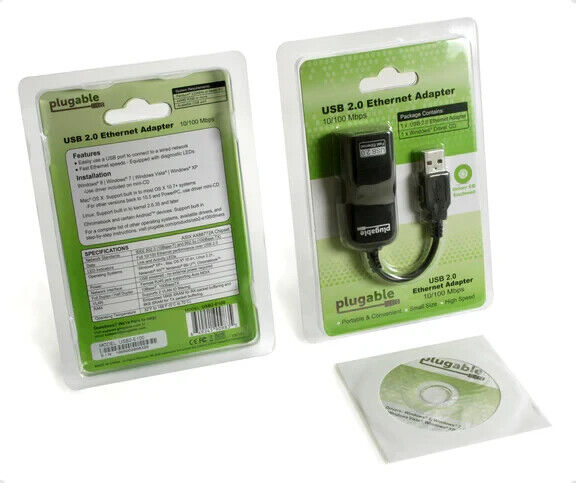

Package Contents

Network Adapter - USB 2.0 to 10/100 Ethernet

Drivers CD-ROM

Device Supported Computer/Notebook/Tablet

Country of Origin China

Environmentally Friendly Yes

Environmental Certification WEEE
