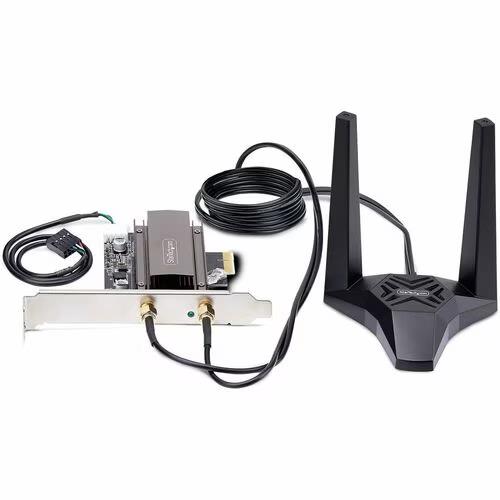

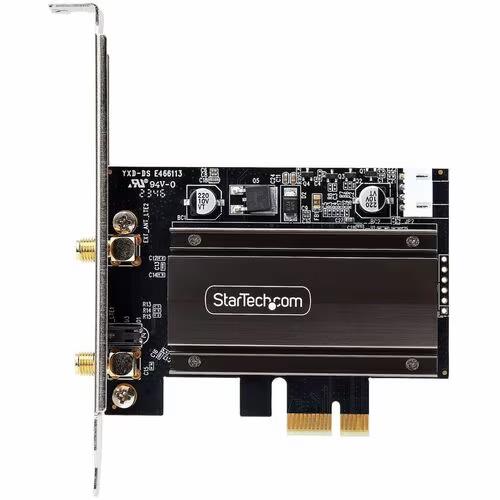

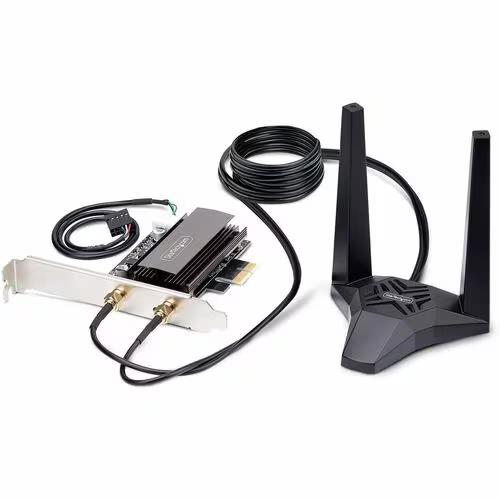

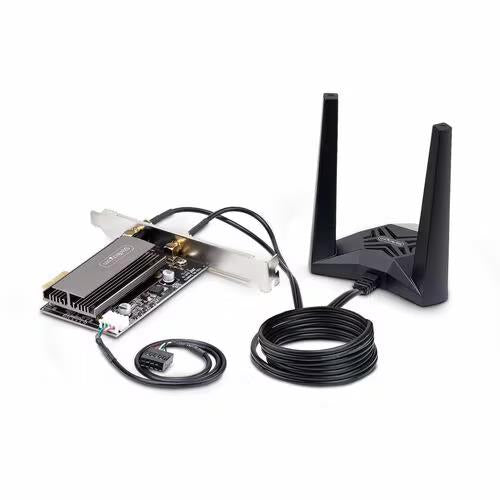

StarTech PAX2235-WIFI-6E-CARD WIFI 6E PCIe Network Card w Mag Ant AX5400 .11ax
Regular price
$112.78 USD
Sale price
$112.78 USD
Description
Couldn't load pickup availability
StarTech PAX2235-WIFI-6E-CARD WIFI 6E PCIe Network Card w Mag Ant AX5400 .11ax
Current product
Current
Vendor:
Startech
StarTech PAX2235-WIFI-6E-CARD WIFI 6E PCIe Network Card w Mag Ant AX5400 .11ax
Regular price
$112.78 USD
Sale price
$112.78 USD
Options
Descriptions
Wi-Fi 6E PCIe Network Card with Bluetooth 5.3, Magnetic Antenna Base with 3.6ft Cables, Tri-Band 802.11ax, AX5400 WiFi NIC, Windows/Linux - PCI Express Wi-Fi Card for PC
Add 802.11ax Wi-Fi connectivity to a computer or server through a PCI Express slot - with tri-band 6/5/2.4GHz frequencies
Warranty Information
Warranty
2 Years
Connector(s)
Internal Ports
1 - 4 pin IDC (USB Motherboard Header) Female
External Ports
2 - RP-SMA (Coax, Reverse Polarity SubMiniature A)
Host Connectors
1 - PCI Express x1
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10% ~ 90% RH (non-condensing)
Hardware
Interface
Wireless Ethernet
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Antenna Configuration
External Magnetic Base w/2x 5dBi Wi-Fi 6E Tri-Band Antennas
Industry Standards
IEEE 802.11ax
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11a
IEEE 802.11b
PCI Express 3.0
Bluetooth 5.3 Class 2
BDR Basic Data Rate
EDR Enhanced Data Rate
BLE Bluetooth Low Energy
USB 2.0
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11a
IEEE 802.11b
PCI Express 3.0
Bluetooth 5.3 Class 2
BDR Basic Data Rate
EDR Enhanced Data Rate
BLE Bluetooth Low Energy
USB 2.0
Chipset ID
Intel - AX210
Indicators
LED Indicators
1 - Solid Green: PCIe Wi-Fi Card is installed and receiving power
Packaging Information
Package Height
4.5 in [11.5 cm]
Package Length
5.9 in [15.0 cm]
Shipping (Package) Weight
12.6 oz [356.0 g]
Package Width
5.3 in [13.5 cm]
Performance
Maximum Data Transfer Rate
Wireless
2400Mbps (6Ghz)
2400Mbps (5Ghz)
574Mbps (2.4Ghz)
Bluetooth
2Mbps
2400Mbps (6Ghz)
2400Mbps (5Ghz)
574Mbps (2.4Ghz)
Bluetooth
2Mbps
ESD Protection
+/-8kV (Contact)
+/-15kV (Air)
Full Duplex Support
Yes
Promiscuous Mode
Yes
Frequency
2.4~6Ghz
Modulation
1024-QAM
Security Features
WPA3 personal and enterprise including WPA2 transition mode
AES
MTBF
50,000 Hours
Supported Protocols
Intel vPro
Intel AMT
Intel AMT
Physical Characteristics
Color
Black
Product Height
0.7 in [1.8 cm]
Product Length
4.7 in [12.0 cm]
Weight of Product
7.1 oz [200.0 g]
Product Width
2.4 in [6.2 cm]
Material
Aluminum
Cable Length
3.6 ft [1.1 m]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows 10, 11
Linux 6.2 and up - LTS Versions Only
Linux 6.2 and up - LTS Versions Only
Special Notes / Requirements
Note
Windows 10 does not support the 6Ghz wireless band
What's in the Box
Included in Package
1 - PCIe Wi-Fi Card
1 - Magnetic Antenna Stand
1 - Bluetooth Cable
1 - Low-Profile Bracket with 2 x Screws
1 - Quick-Start Guide
..
