StarTech PEXUSB312A2C2V 4 Port 10Gbe USB-A/C SATA Power PCIe x4 Full Hgt Card
Regular price
$153.72 USD
Sale price
$153.72 USD
Regular price
$137.99 USD
Description
Couldn't load pickup availability
StarTech PEXUSB312A2C2V 4 Port 10Gbe USB-A/C SATA Power PCIe x4 Full Hgt Card
Current product
Current
Vendor:
Startech
StarTech PEXUSB312A2C2V 4 Port 10Gbe USB-A/C SATA Power PCIe x4 Full Hgt Card
Regular price
$153.72 USD
Sale price
$153.72 USD
Regular price
$137.99 USD
Options
Descriptions

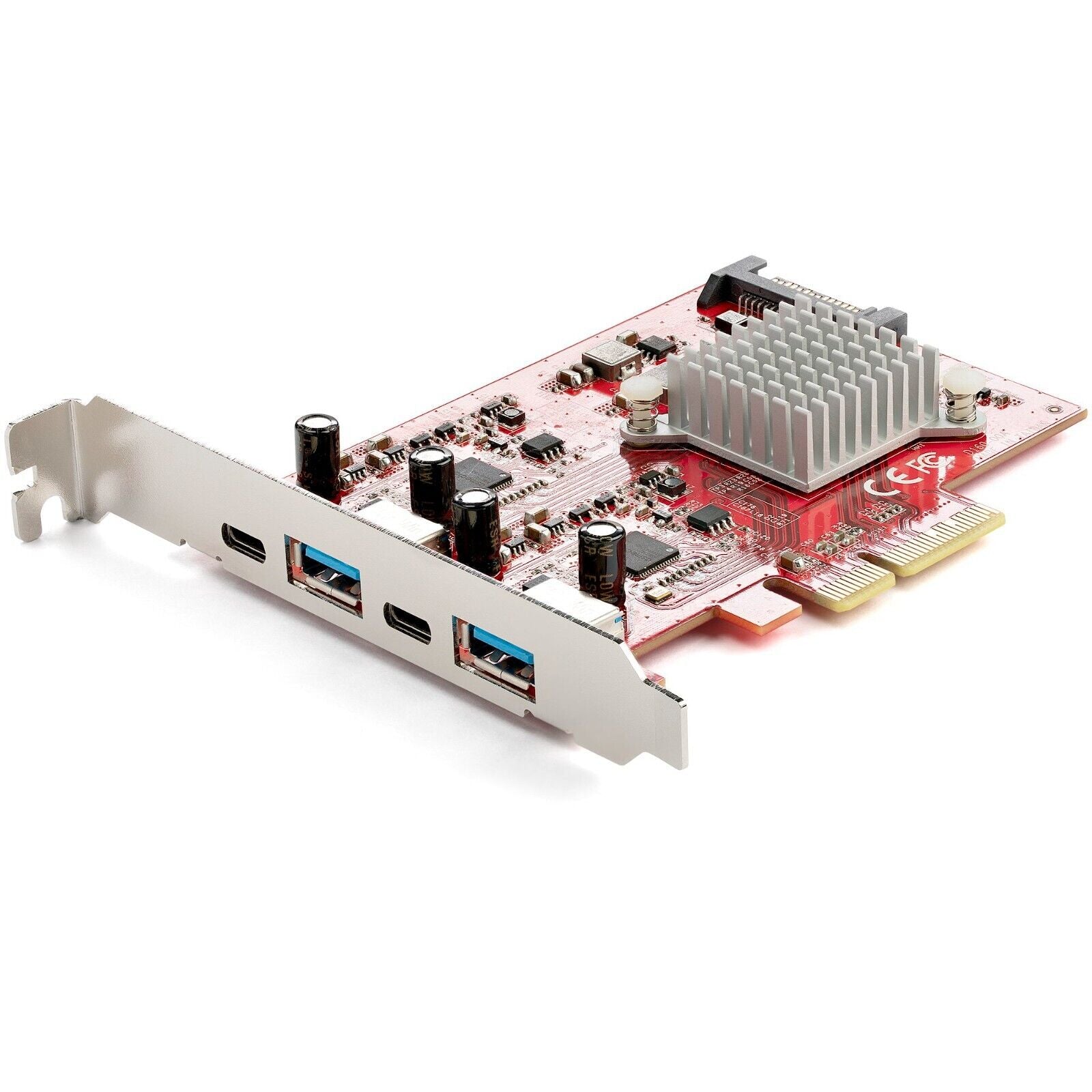

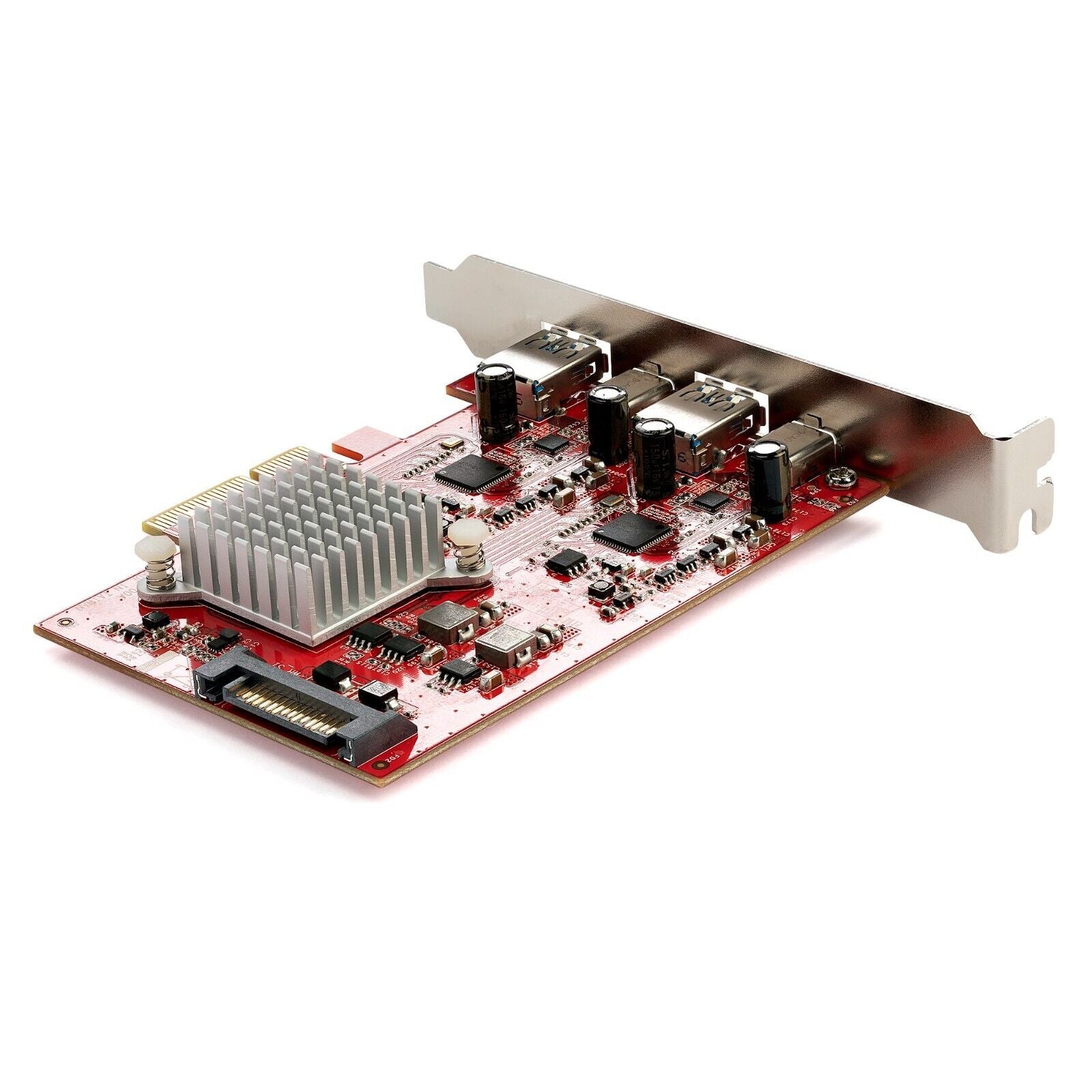

4-Port USB PCIe Card - 10Gbps USB PCI Express Expansion Card w/ 2 Controllers - 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2) - USB/USB-C PCI-e Card - Full Profile - TAA
2x USB 3.2 Gen 2 (10Gbps) Type-A | 2x USB 3.2 Gen 2 (10Gbps) Type-C
Product ID: PEXUSB312A2C2V
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x4

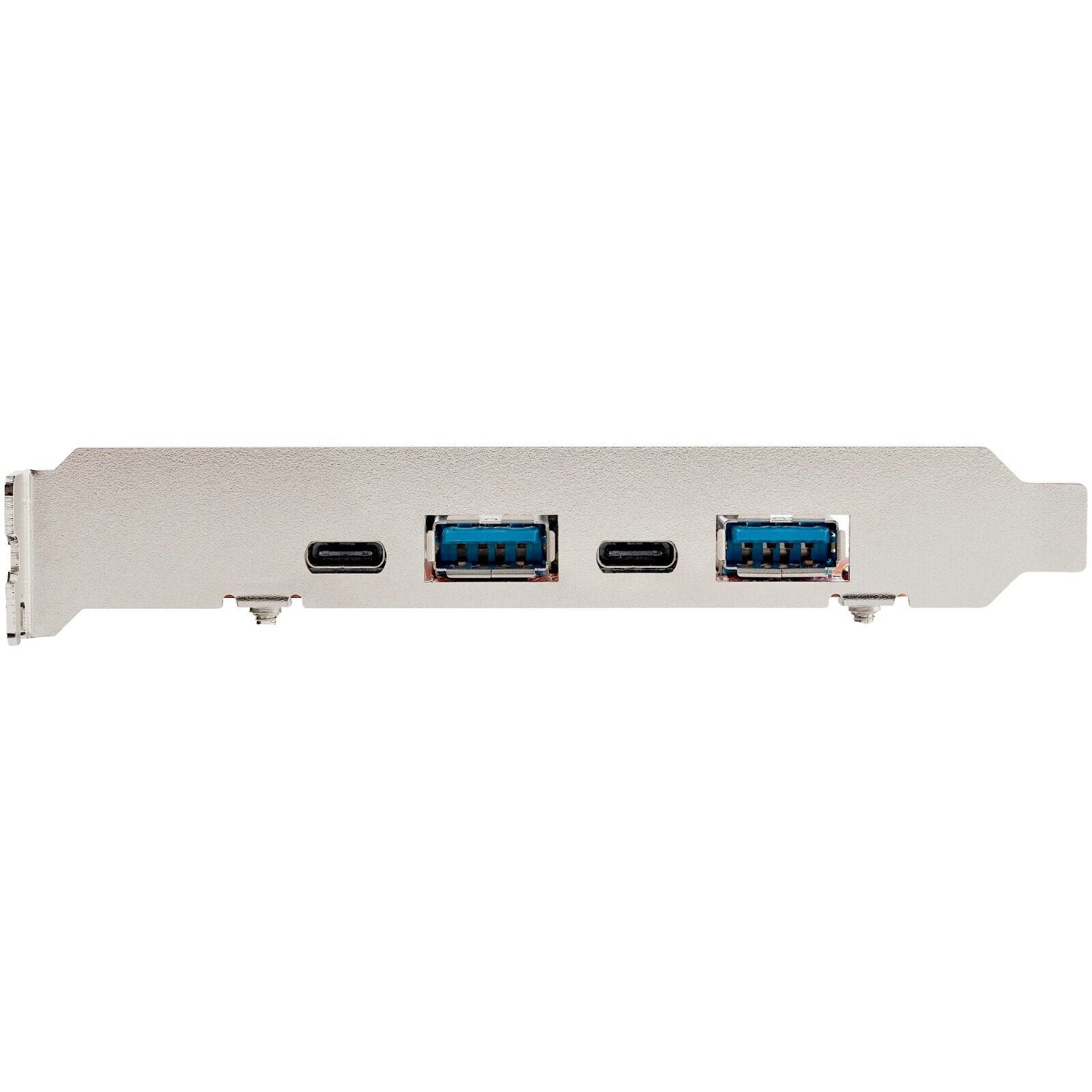

External Ports
2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
2 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Internal Ports
1 - SATA Power (15 pin)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-20°C to 80°C (-4°F to 176°F)
Humidity
15~90% RH (Non-condensing)
Hardware
Ports
4
Bus Type
USB 3.2 Gen 2 10Gbps
PCI Express
Interface
PCI Express
Card Type
Standard Profile
Port Style
Integrated on Card
Industry Standards
PCI Express Base Specification Rev. 3.0
USB 3.2 Specifications
UASP (USB Attached SCSI Protocol) Rev. 1.0
Chipset ID
ASMedia - ASM3142
ASMedia - ASM2806
Packaging Information
Package Height
1.3 in [3.2 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
5.0 oz [142.0 g]
Package Width
5.6 in [14.2 cm]
Package Quantity
1
Performance
Total USB Power Output
USB-C Power Output - 15W
USB-A Power Output - 4.5W
USB-A Power Output - 4.5W
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
MTBF
1,677,495 Hours
Physical Characteristics
Color
Red
Product Height
0.7 in [1.8 cm]
Product Length
4.9 in [12.4 cm]
Weight of Product
2.8 oz [78.0 g]
Product Width
4.8 in [12.2 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012 R2, 2016, 2019, 2022
Linux® 3.5 and up - LTS Versions only
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
macOS Big Sur (11.0)
macOS Monterey (12.0)
macOS Ventura (13.0)
macOS Sonoma (14.0)
Windows Server® 2008 R2, 2012 R2, 2016, 2019, 2022
Linux® 3.5 and up - LTS Versions only
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
macOS Big Sur (11.0)
macOS Monterey (12.0)
macOS Ventura (13.0)
macOS Sonoma (14.0)
What's in the Box
Included in Package
1 - PCI Express USB Card
1 - Full Profile Bracket (Installed)
1 - Quick-Start Guide
