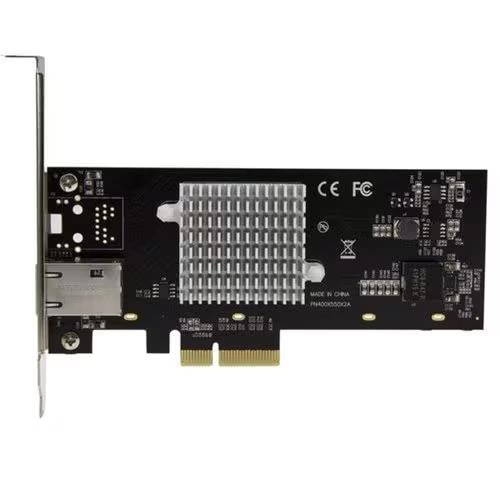

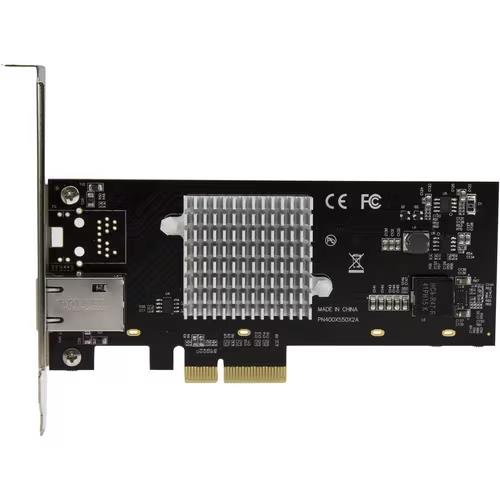

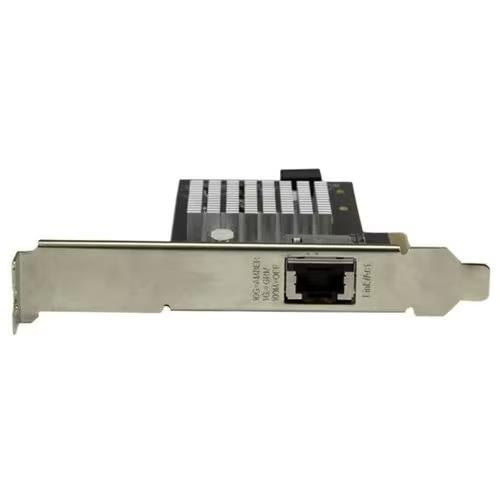

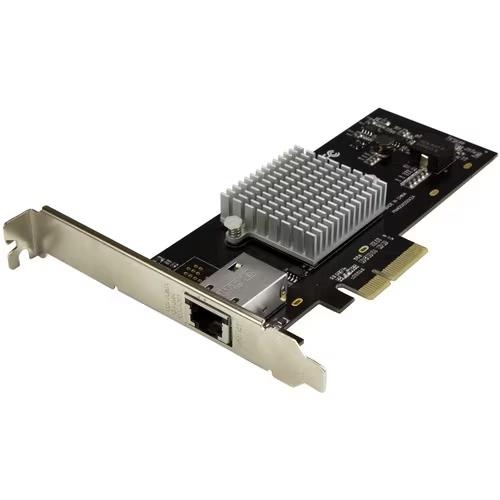

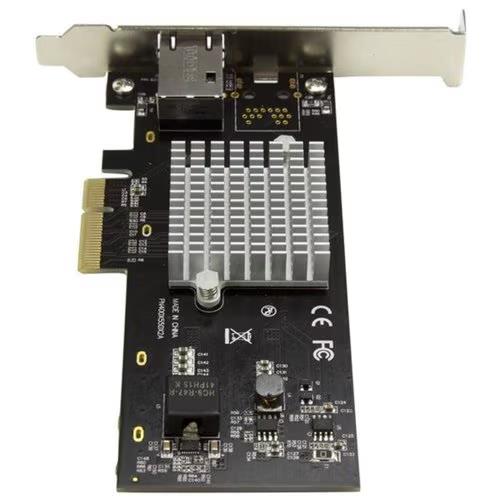

StarTech ST10000SPEXI 1 Port 10G PCIe x4 Network Card w Intel X550-AT Chip
Regular price
$383.43 USD
Sale price
$383.43 USD
Regular price
$340.99 USD
Description
Couldn't load pickup availability
StarTech ST10000SPEXI 1 Port 10G PCIe x4 Network Card w Intel X550-AT Chip
Current product
Current
Vendor:
Startech
StarTech ST10000SPEXI 1 Port 10G PCIe x4 Network Card w Intel X550-AT Chip
Regular price
$383.43 USD
Sale price
$383.43 USD
Regular price
$340.99 USD
Options
Descriptions
1-Port 10G Ethernet Network Card - PCI Express - Intel X550-AT Chip
Upgrade your server or workstation to 10G networking over copper, by adding a 10GBase-T / NBASE-T RJ45 port
Product ID: ST10000SPEXI
..
- Add a 10G /5G/2.5G/1G/100Mbps R-J45 Ethernet port to provide cost-effective network connectivity for high bandwidth workstations and servers
- Compliant with 10GBase-T and NBASE-T specifications
- Intel X550-AT chipset with Intel Virtualization Technology for connectivity (Intel VT-c)
- Fully compliant with IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T)
- Up to 20Gbps (full duplex) bandwidth
- Up to 9K jumbo frame support
- PXE network boot support and Auto MDIX
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x4
Internal Ports
1 - RJ-45
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
20~80%
Hardware
Ports
1
Interface
RJ45 (10 Gigabit Ethernet)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T)
NBASE-T
NBASE-T
PCI Express Rev 2.0
IEEE 802.1Q VLAN Tagging
IEEE 802.3x Full Duplex Flow Control
Chipset ID
Intel - X550AT
Indicators
LED Indicators
1 - Link/Activity
1 - 10G/1G Speed
Packaging Information
Package Height
1.6 in [4.0 cm]
Package Length
8.0 in [20.4 cm]
Shipping (Package) Weight
6.3 oz [178.0 g]
Package Width
5.7 in [14.6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
10 Gbps
Compatible Networks
10 Gbps/5G/2.5G/1G/100 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Promiscuous Mode
Yes
Supported Protocols
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)
IEEE 802.1Q (VLAN tagging)
Physical Characteristics
Color
Black
Material
Steel
Cable Length
3.9 in [100 mm]
Product Length
6.0 in [15.2 cm]
Product Width
2.7 in [6.8 cm]
Product Height
4.8 in [12.1 cm]
Weight of Product
3.4 oz [96.0 g]
Power
Input Voltage
12V DC
Output Voltage
12V DC
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
(Windows Drivers are supported in 64-bit only)
Linux 2.4.x and up - LTS Versions only
ESXi 5.1/5.5/6.0
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
(Windows Drivers are supported in 64-bit only)
Linux 2.4.x and up - LTS Versions only
ESXi 5.1/5.5/6.0
Special Notes / Requirements
System and Cable Requirements
For Windows, NBase-T support requires Windows 8 or higher
What's in the Box
Included in Package
1 - 10G network card
1 - low-profile bracket
1 - quick-start guide
