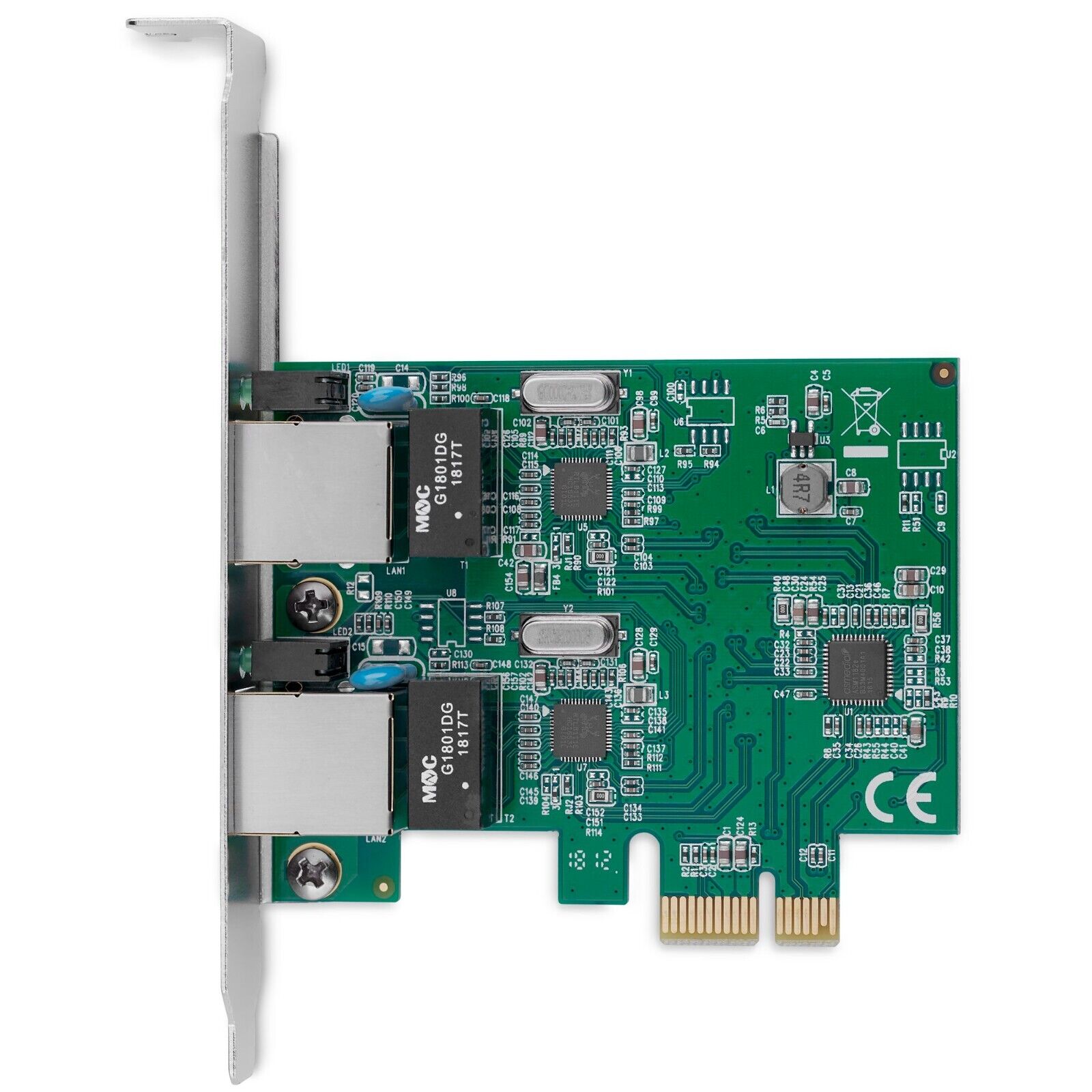

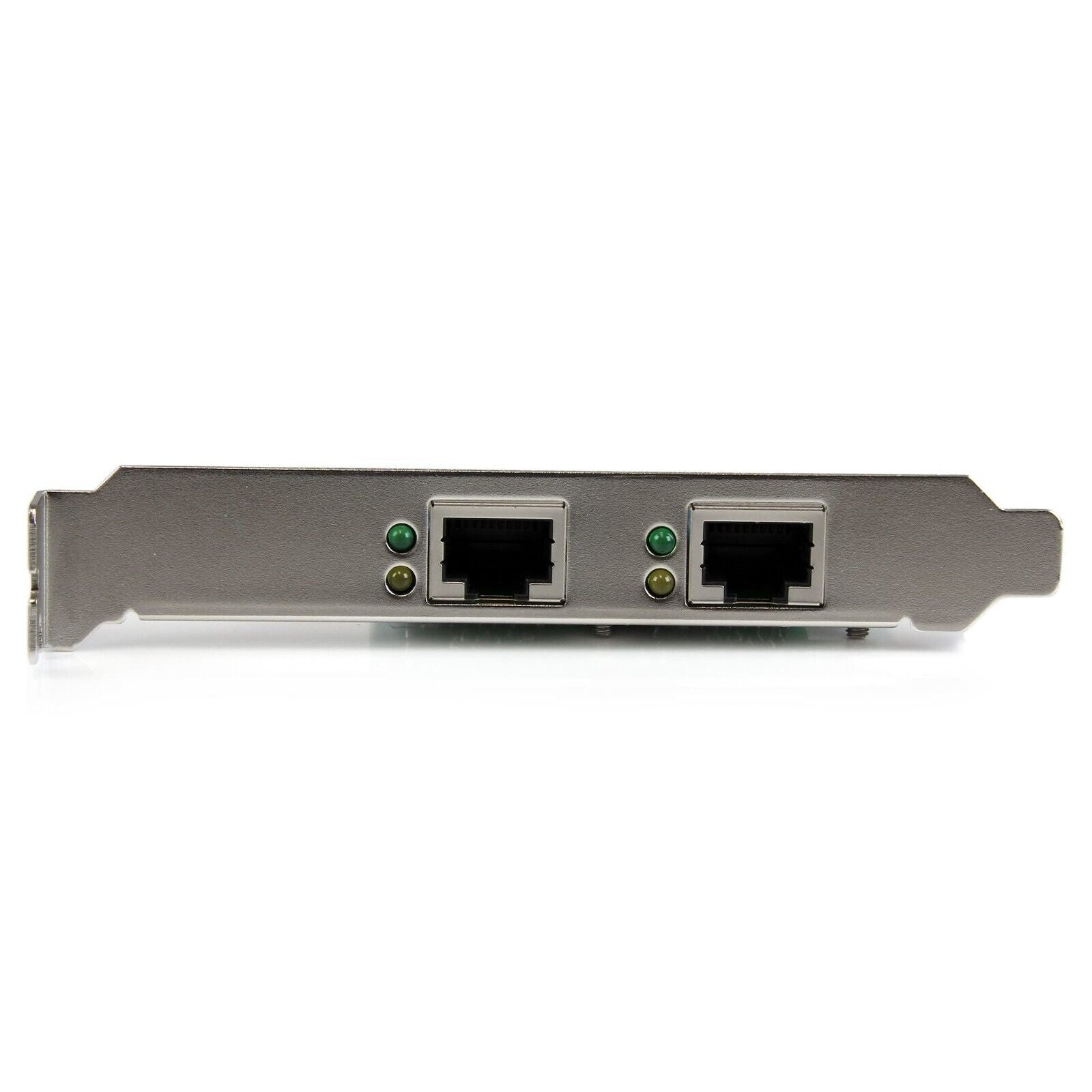

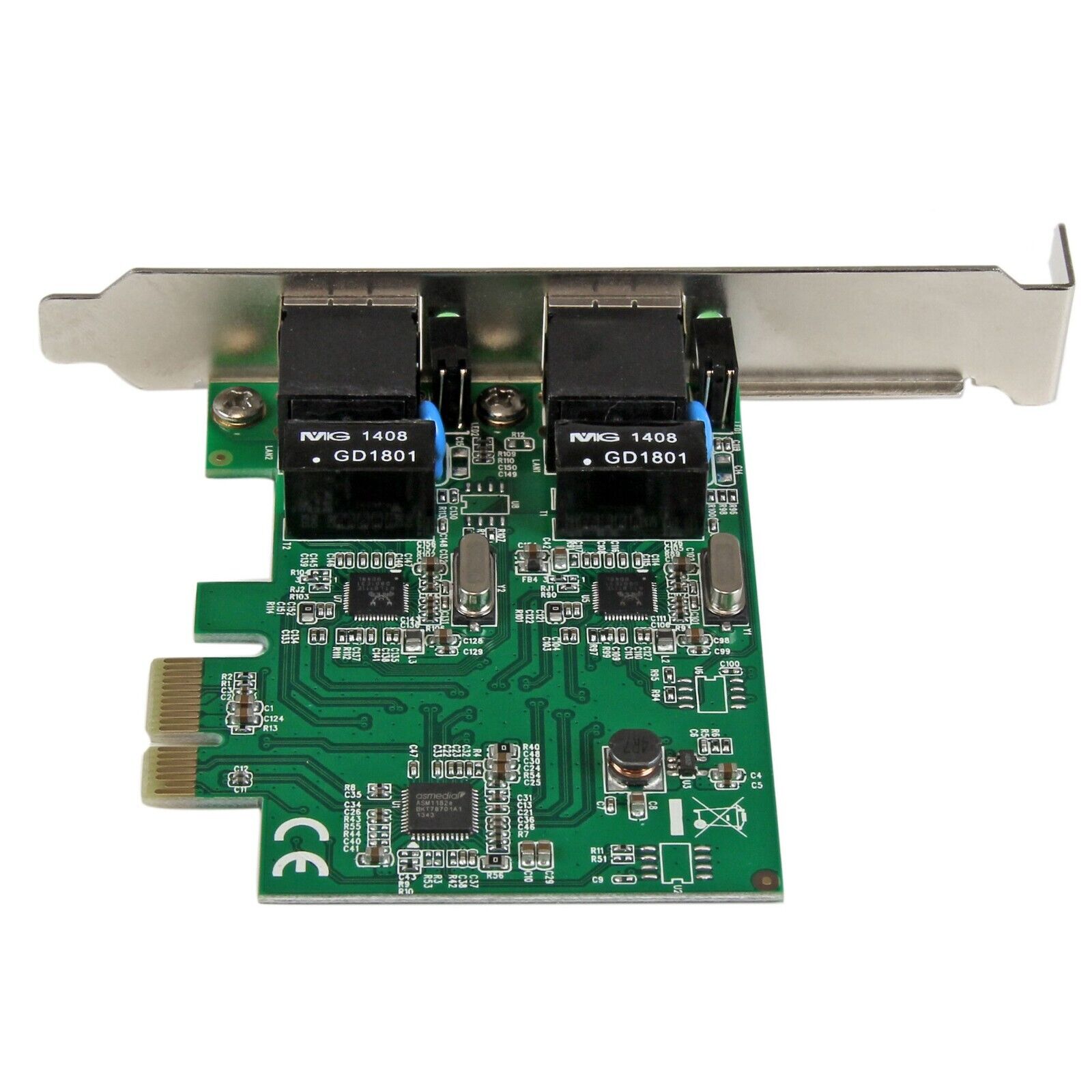

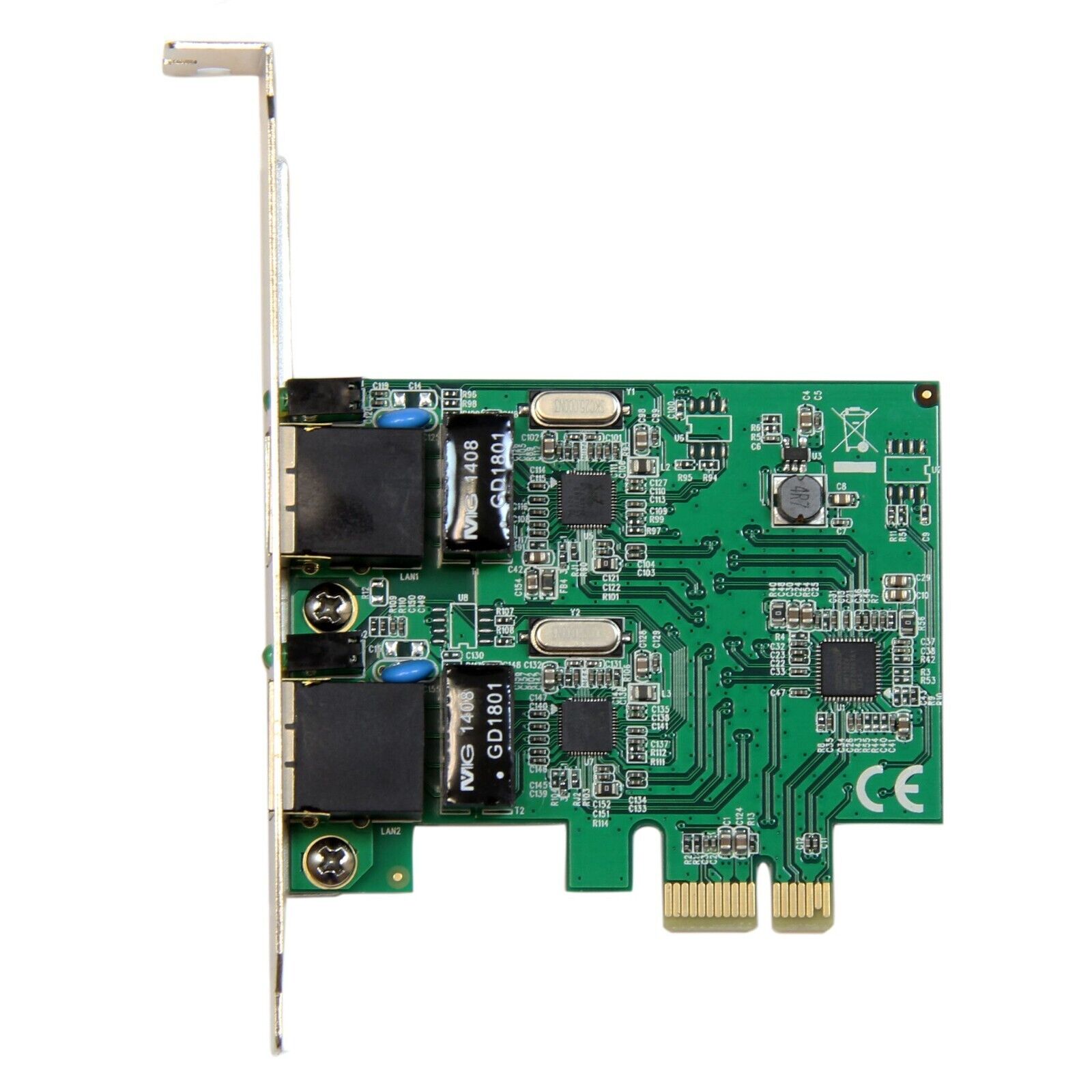

StarTech ST1000SPEXD4 2 Port Gigabit Ethernet Adapter PCIe x1 Server LowPro Card

Name: StarTech ST1000SPEXD4 2 Port Gigabit Ethernet Adapter PCIe x1 Server LowPro Card
Brand: Startech
SKU: INGaSTA YB0872 - ST1000SPEXD4
Price: 116.57 USD
Availability: InStock

$116.57 USD

Shipping calculated at checkout.

In stock: 12

Description

Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC

Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot

Product ID: ST1000SPEXD4

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

1 - PCI Express x1

External Ports

2 - RJ-45

Environmental

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

0°C to 100°C (32°F to 212°F)

Humidity

10~90% RH

Hardware

Ports

Interface

RJ45 (Gigabit Ethernet)

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

PCI Express Base Specification 2.0

Chipset ID

Realtek - RTL8111
ASMedia - ASM1182E

Indicators

LED Indicators

2 - Yellow - Gigabit Mode

2 - Green - Link/Activity

Packaging Information

Package Height

1.3 in [3.2 cm]

Package Length

6.8 in [17.2 cm]

Shipping (Package) Weight

4.8 oz [136.0 g]

Package Width

5.6 in [14.2 cm]

Package Quantity

Performance

Wake On Lan

Yes

Maximum Data Transfer Rate

2000 Mbps (full-duplex), 1000 Mbps (half-duplex)

Compatible Networks

10/100/1000 Mbps

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

Promiscuous Mode

Yes

Supported Protocols

IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control

Physical Characteristics

Weight of Product

1.9 oz [53.0 g]

Color

Green

Material

Steel

Product Length

3.6 in [9.3 cm]

Product Width

0.7 in [1.8 cm]

Product Height

4.7 in [12.0 cm]

Power

Input Voltage

12V DC

Output Voltage

12V DC

Software

OS Compatibility

Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS 10.4 to 10.9
Linux 2.4.x and up - LTS Versions only

Special Notes / Requirements

System and Cable Requirements

Available PCI Express slot

What's in the Box

Included in Package

1 - PCIe Network Card

1 - Low Profile Bracket

1 - Instruction Manual
