StarTech ST20000SPEXI 2 Port 10Gb Ethernet NIC RJ45 PCIe x8 Network Low Pro Card
Regular price
$444.41 USD
Sale price
$444.41 USD
Regular price
$395.99 USD
Description
Couldn't load pickup availability
StarTech ST20000SPEXI 2 Port 10Gb Ethernet NIC RJ45 PCIe x8 Network Low Pro Card
Current product
Current
Vendor:
Startech
StarTech ST20000SPEXI 2 Port 10Gb Ethernet NIC RJ45 PCIe x8 Network Low Pro Card
Regular price
$444.41 USD
Sale price
$444.41 USD
Regular price
$395.99 USD
Options
Descriptions

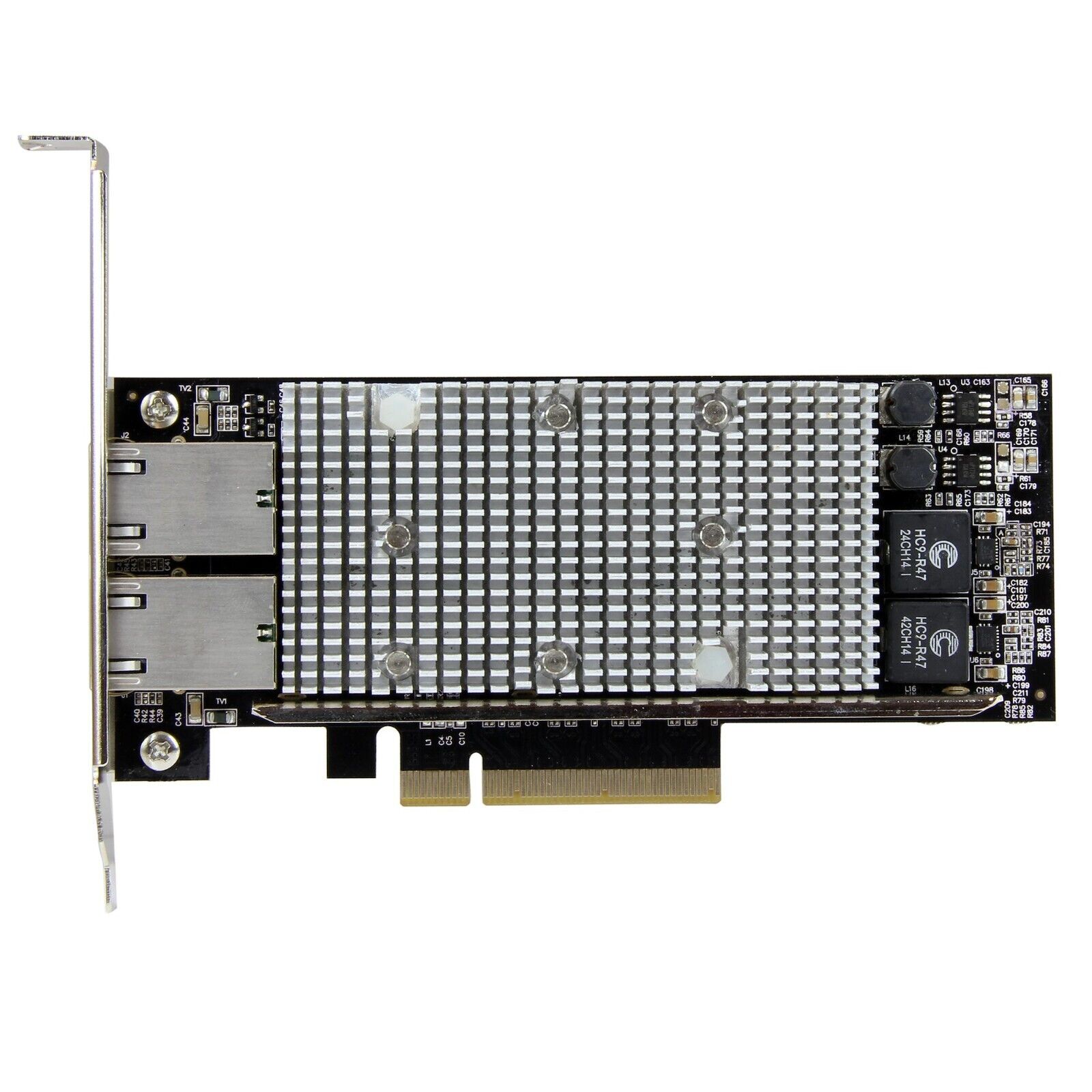

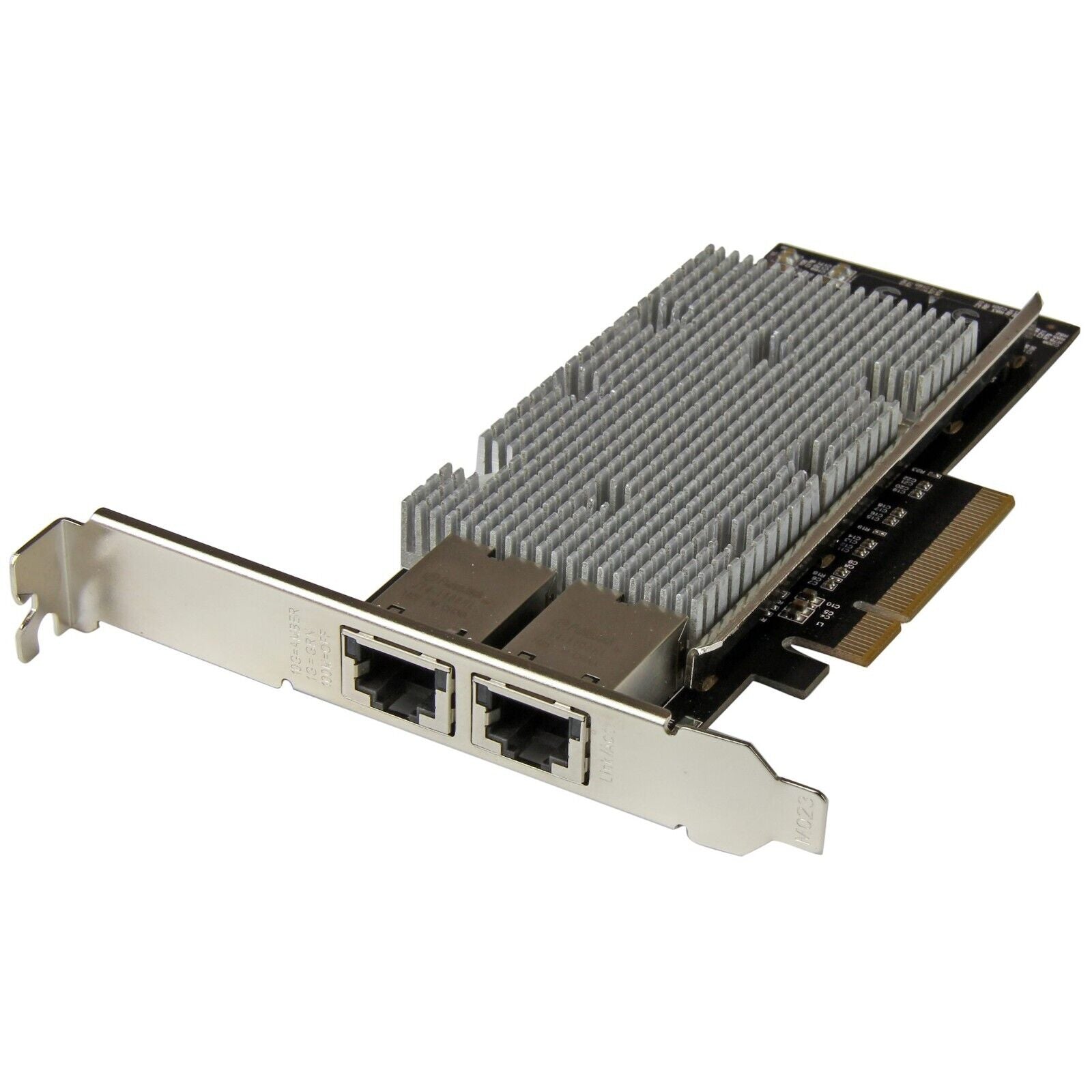

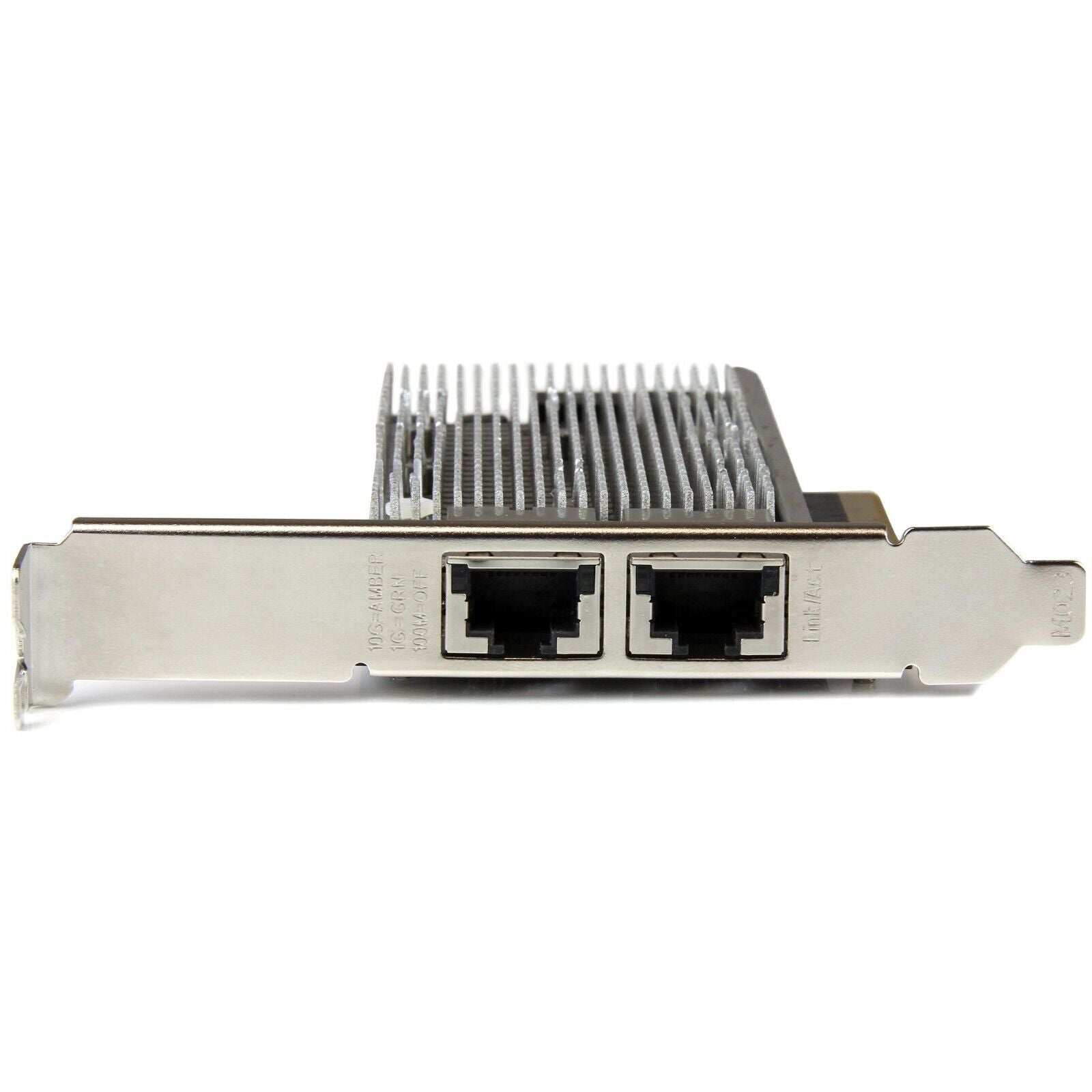

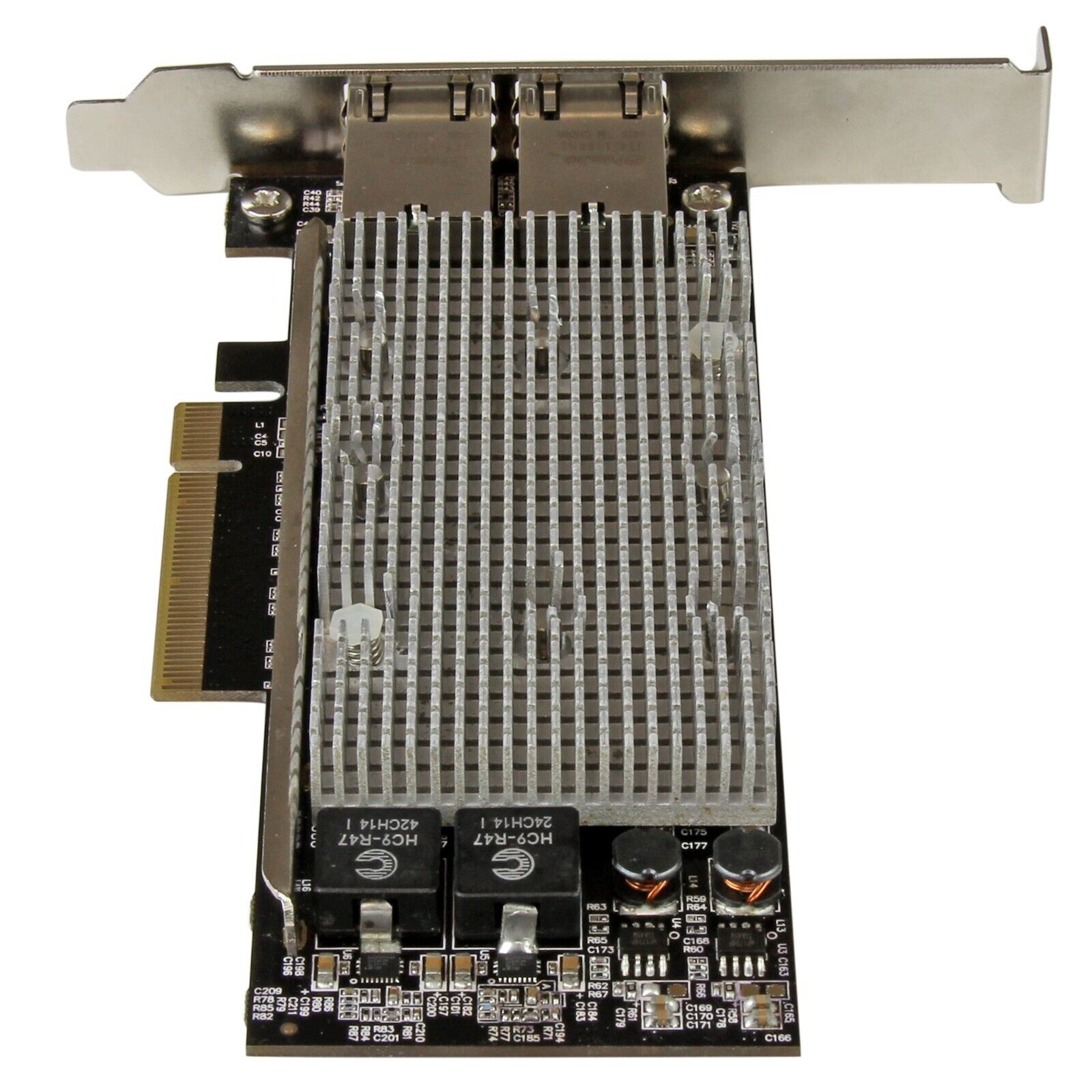

2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
Add two 10 Gigabit Ethernet ports (10Gbps) to a client, server or workstation through one PCI Express slot
Product ID: ST20000SPEXI
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x8
External Ports
2 - RJ-45
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
20~80% RH
Hardware
Ports
2
Interface
RJ45 (10 Gigabit Ethernet)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T)
PCI Express Rev 2.0
PCI Express Rev 2.0
Chipset ID
Intel - X540
Indicators
LED Indicators
2 - Link Speed
2 - Link Activity
Packaging Information
Package Height
1,4 in [3,6 cm]
Package Length
8,2 in [20,8 cm]
Shipping (Package) Weight
8,8 oz [248,0 g]
Package Width
5,7 in [14,6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
20Gbps (full-duplex), 10Gbps (half-duplex)
Compatible Networks
10 Gbps/5G/2.5G/1G/100 Mbps
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Promiscuous Mode
Yes
Supported Protocols
IEEE 802.3ad (link aggregation), IEEE 802.1q (VLAN tagging)
Physical Characteristics
Product Length
6,4 in [16,3 cm]
Weight of Product
5,5 oz [157,0 g]
Color
Black
Product Width
0,8 in [2,0 cm]
Product Height
4,7 in [12,0 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
(Windows Drivers are supported in 64-bit only)
Linux 2.4.x and up - LTS Versions only
ESXi 5.1/5.5
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
(Windows Drivers are supported in 64-bit only)
Linux 2.4.x and up - LTS Versions only
ESXi 5.1/5.5
Special Notes / Requirements
System and Cable Requirements
Available PCI Express x8 slot
What's in the Box
Included in Package
1 - PCI Express 10GBase-T Ethernet card
1 - low-profile bracket
1 - instruction manual
