StarTech ST2GPEX 1 Port 2.5Gbe PCIe x1 RJ45 Network Low Profile Card RTL8125

Name: StarTech ST2GPEX 1 Port 2.5Gbe PCIe x1 RJ45 Network Low Profile Card RTL8125
Brand: Startech
SKU: INGaSTA 7BA120 - ST2GPEX
Price: 48.76 USD
Availability: InStock

$48.76 USD

Shipping calculated at checkout.

In stock: 1

Description

2.5Gbps 2.5GBASE-T PCIe Network Card

PCI Express LAN Card | Windows ® & Linux | Realtek RTL8125| x1 PCIe

Product ID: ST2GPEX

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

1 - PCI Express x1

External Ports

1 - RJ-45

Environmental

Operating Temperature

5°C to 50°C

Storage Temperature

-20°C to 60°C

Humidity

20% ~ 80% RH

Hardware

Ports

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Industry Standards

IEEE 802.3bz (2.5GBASE-T)

IEEE 802.3ab (1000BASE-T)

IEEE 802.3u (100BASE-TX)

IEEE 802.3i (10BASE-TX)

Chipset ID

Realtek RTL8125B

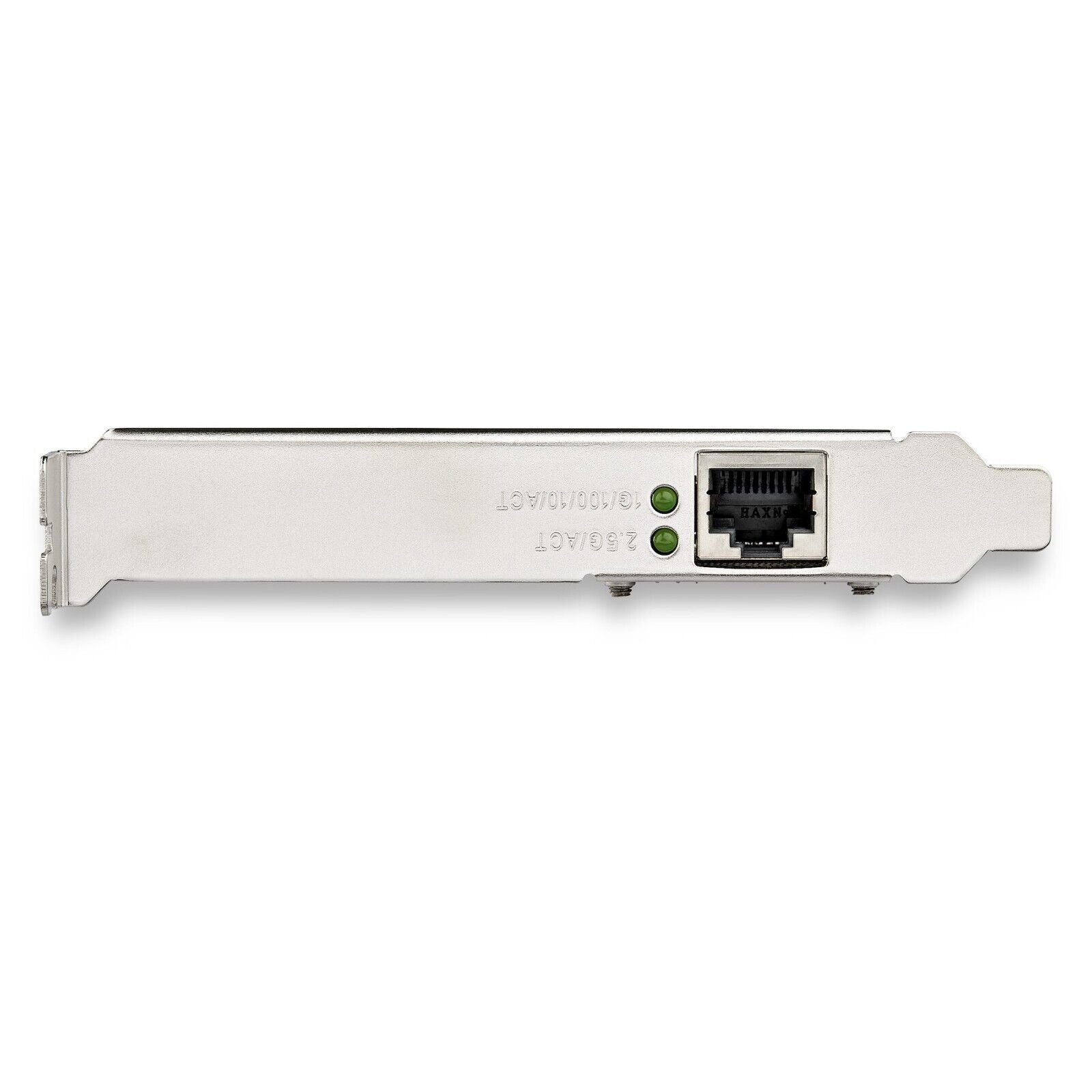

Indicators

LED Indicators

1 - Green LED: 2.5Gbps

1 - Green LED: 1Gbps/100Mbps/10Mbps

Packaging Information

Package Height

1.2 in [30.0 mm]

Package Length

6.6 in [16.8 cm]

Shipping (Package) Weight

3.8 oz [108.0 g]

Package Width

5.7 in [14.4 cm]

Package Quantity

Performance

Wake On Lan

Yes

Compatible Networks

2.5G/1G/100Mbps/10Mbps

Auto MDIX

Yes

PXE

Yes

Full Duplex Support

Yes

Jumbo Frame Support

16K max.

Supported Protocols

IEEE 802.1q (VLAN tagging)

Physical Characteristics

Product Height

0.8 in [2.0 cm]

Product Length

3.1 in [80.0 mm]

Weight of Product

4.9 oz [138.0 g]

Product Width

4.7 in [12.0 cm]

Color

Black

Material

Steel

Power

Input Voltage

12V DC

Output Voltage

12V DC

Software

OS Compatibility

Windows 11
Windows 10
Windows 8
Windows 7
Windows Server 2016, 2019, 2022
Windows Server 2012 R2
Windows Server 2008 R2
Linux Kernel 2.4.20 and up - LTS Versions only

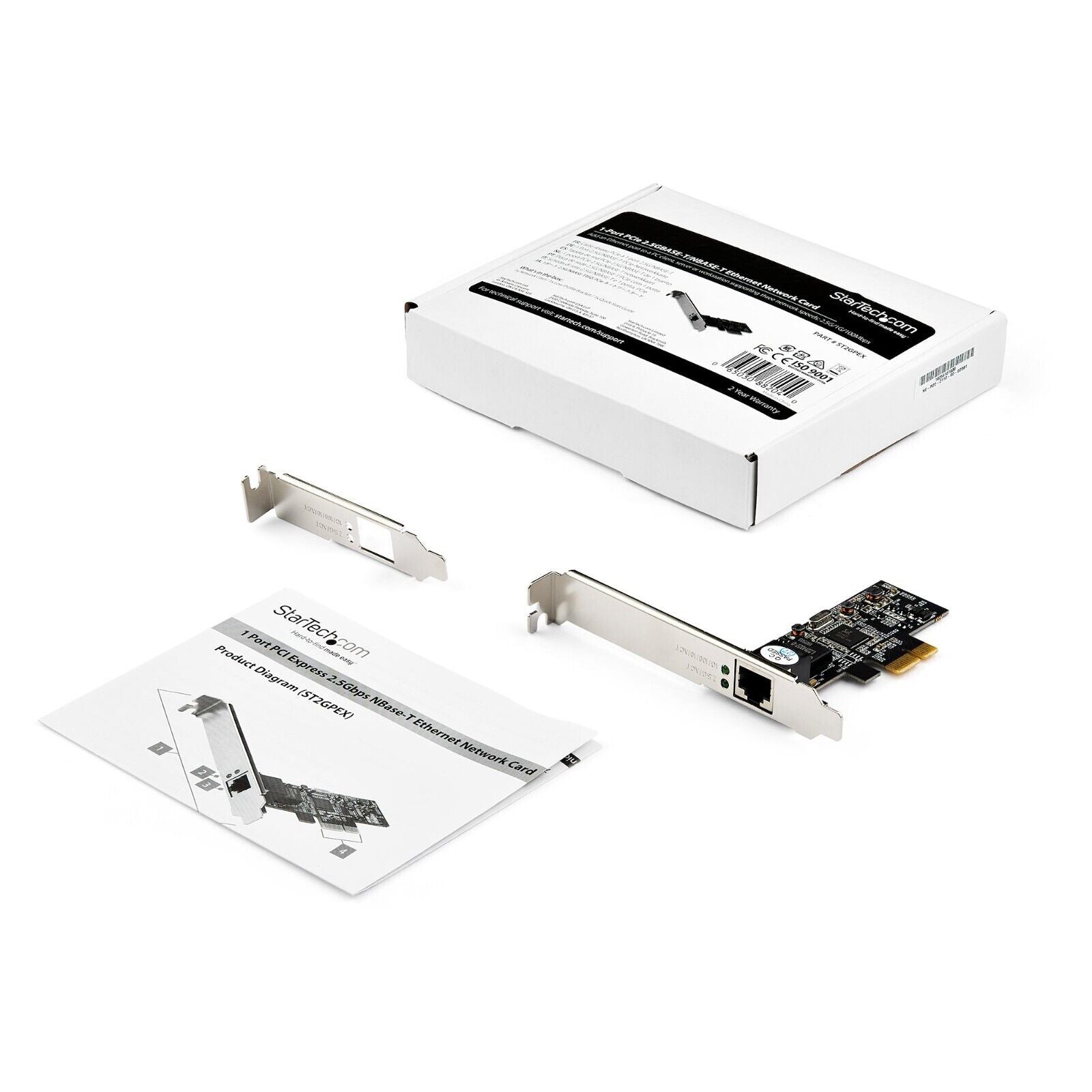

What's in the Box

Included in Package

1 - Network Card

1 - Low-Profile Bracket

1 - Quick-Start Guide

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

Monrovia, CA 91016 (Most usual)
Fort Worth, TX 76155
Carol Stream, IL 60188
Moore, SC 29369
Hazelton, PA 18202
